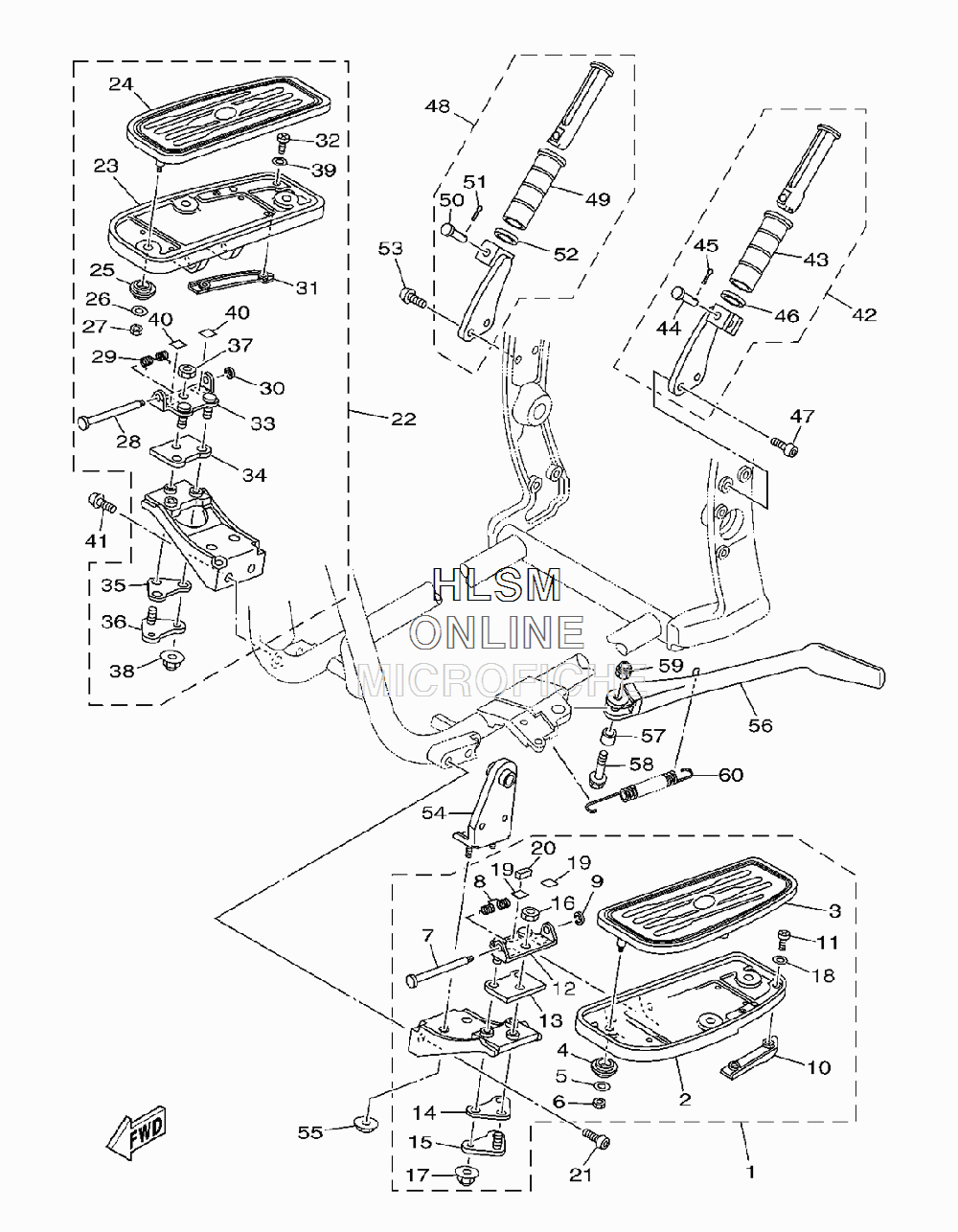

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha ROAD STAR - 2009 года выпуска
-
№АртикулНазвание
-
15VN-27410-10-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24NK-27451-10-00 FOOTRESTFOOTREST
-
34WM-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
44WM-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
590201-05033-00 WASHER, SPECIALWASHER, SPECIAL
-
695607-05100-00 NUT, UNUT, U
-
73D8-27427-00-00 SHAFTSHAFT
-
84NK-27426-00-00 SPRING, RETURNSPRING, RETURN
-
999001-06600-00 CIRCLIPCIRCLIP
-
104WM-27496-00-00 MOLE 1MOLE 1
-
1190157-05095-00 SCREW,PAN HEAD(3SX)SCREW,PAN HEAD(3SX)
-
125VN-27422-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
135VN-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
145VN-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
155VN-27123-00-00 PLATE, STOPPERPLATE, STOPPER
-
1695317-06600-00 NUTNUT
-
1790176-06007-00 NUT, CROWNNUT, CROWN
-
1892907-05200-00 WASHERWASHER
-
191D7-27485-00-00 SEALSEAL
-
205VN-2743E-00-00 STOPPERSTOPPER
-
2190111-10004-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
225VN-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
234NK-27461-10-00 FOOTRESTFOOTREST
-
244WM-27423-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
254WM-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
2690201-05033-00 WASHER, SPECIALWASHER, SPECIAL
-
2795607-05100-00 NUT, UNUT, U
-
283D8-27427-00-00 SHAFTSHAFT
-
294NK-27426-00-00 SPRING, RETURNSPRING, RETURN
-
3099001-06600-00 CIRCLIPCIRCLIP
-
314WM-27497-00-00 MOLE 2MOLE 2
-
3290157-05095-00 SCREW,PAN HEAD(3SX)SCREW,PAN HEAD(3SX)
-
335VN-27422-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
345VN-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
355VN-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
365VN-27123-00-00 PLATE, STOPPERPLATE, STOPPER
-
3795317-06600-00 NUTNUT
-
3890176-06007-00 NUT, CROWNNUT, CROWN
-
3992907-05200-00 WASHERWASHER
-
401D7-27485-00-00 SEALSEAL
-
4190111-10004-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
424WM-27430-11-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
434WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
4490240-06146-00 PIN, CLEVISPIN, CLEVIS
-
4591401-20015-00 PIN, COTTERPIN, COTTER
-
4690201-210U0-00 WASHER, PLATEWASHER, PLATE
-
4790111-08002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
484WM-27440-11-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
494WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
5090240-06146-00 PIN, CLEVISPIN, CLEVIS
-
5191401-20015-00 PIN, COTTERPIN, COTTER
-
5290201-210U0-00 WASHER, PLATEWASHER, PLATE
-
5390111-08002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
545VN-27443-00-00 BRACKET 3BRACKET 3
-
5595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
564WM-27311-00-00 STAND, SIDESTAND, SIDE
-
5790387-1007K-00 COLLARCOLLAR
-
5890105-10778-00 BOLT, FLANGEBOLT, FLANGE
-
5990185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6090506-29358-00 SPRING, TENSIONSPRING, TENSION
