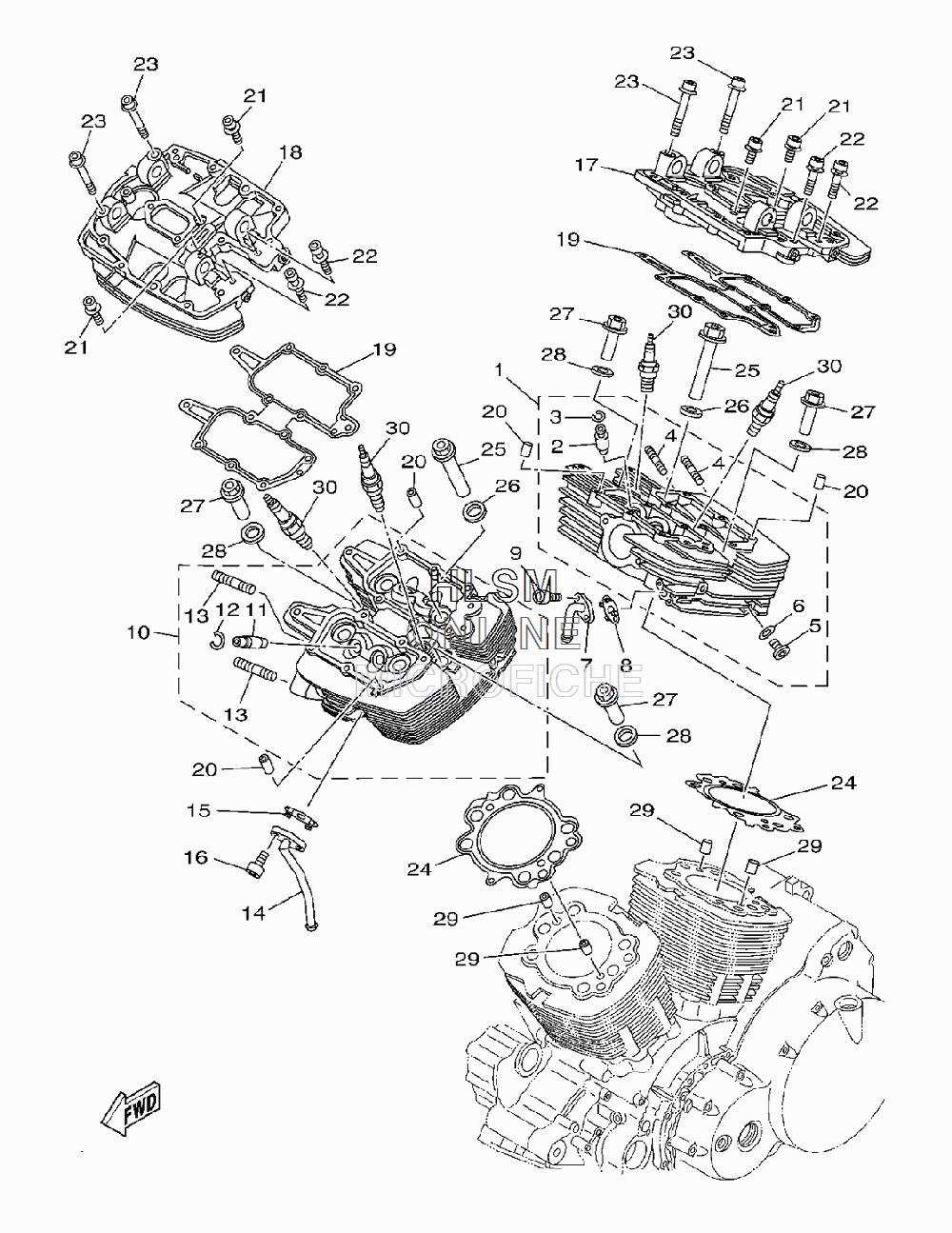

CYLINDER HEAD для Yamaha ROAD STAR - 2009 года выпуска
![](/wa-data/public/shop/sheme/yamaha/streetbike/9a95dd47-27dd-4336-934d-8357b6b9e5fb.gif)
-
№АртикулНазвание
-
12D9-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24WM-11133-10-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
393440-12052-00 CIRCLIPCIRCLIP
-
495617-08625-00 BOLT, STUDBOLT, STUD
-
590340-12112-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
690201-12790-00 WASHER, PLATEWASHER, PLATE
-
75VN-14873-10-00 PIPE 3PIPE 3
-
85PX-14815-00-00 GASKETGASKET
-
991314-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
102D9-11101-10-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
114WM-11133-10-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
1293440-12052-00 CIRCLIPCIRCLIP
-
1395617-08625-00 BOLT, STUDBOLT, STUD
-
145VN-14874-20-00 PIPE 4PIPE 4
-
155PX-14815-00-00 GASKETGASKET
-
1691314-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175VN-11131-00-00 HEAD, CYLINDER 3HEAD, CYLINDER 3
-
185VN-11141-00-00 HEAD, CYLINDER 4HEAD, CYLINDER 4
-
195VN-11182-01-00 GASKET, CYLINDER HEAD 2GASKET, CYLINDER HEAD 2
-
2091808-16023-00 PIN, DOWELPIN, DOWEL
-
2190109-065F8-00 BOLTBOLT
-
2290109-061F7-00 BOLTBOLT
-
2390110-08033-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
245PX-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
255PX-11171-00-00 NUT, HOLDINGNUT, HOLDING
-
265VN-11175-00-00 WASHER, HOLDING 1WASHER, HOLDING 1
-
274WM-11172-00-00 NUT, HOLDINGNUT, HOLDING
-
284WM-11176-00-00 WASHER, HOLDINGWASHER, HOLDING
-
2990387-062T5-00 COLLARCOLLAR
-
30NGK-DPR7E-A9-00 PLUG, SPARK (NGK DPR7EA) URPLUG, SPARK (NGK DPR7EA) UR
