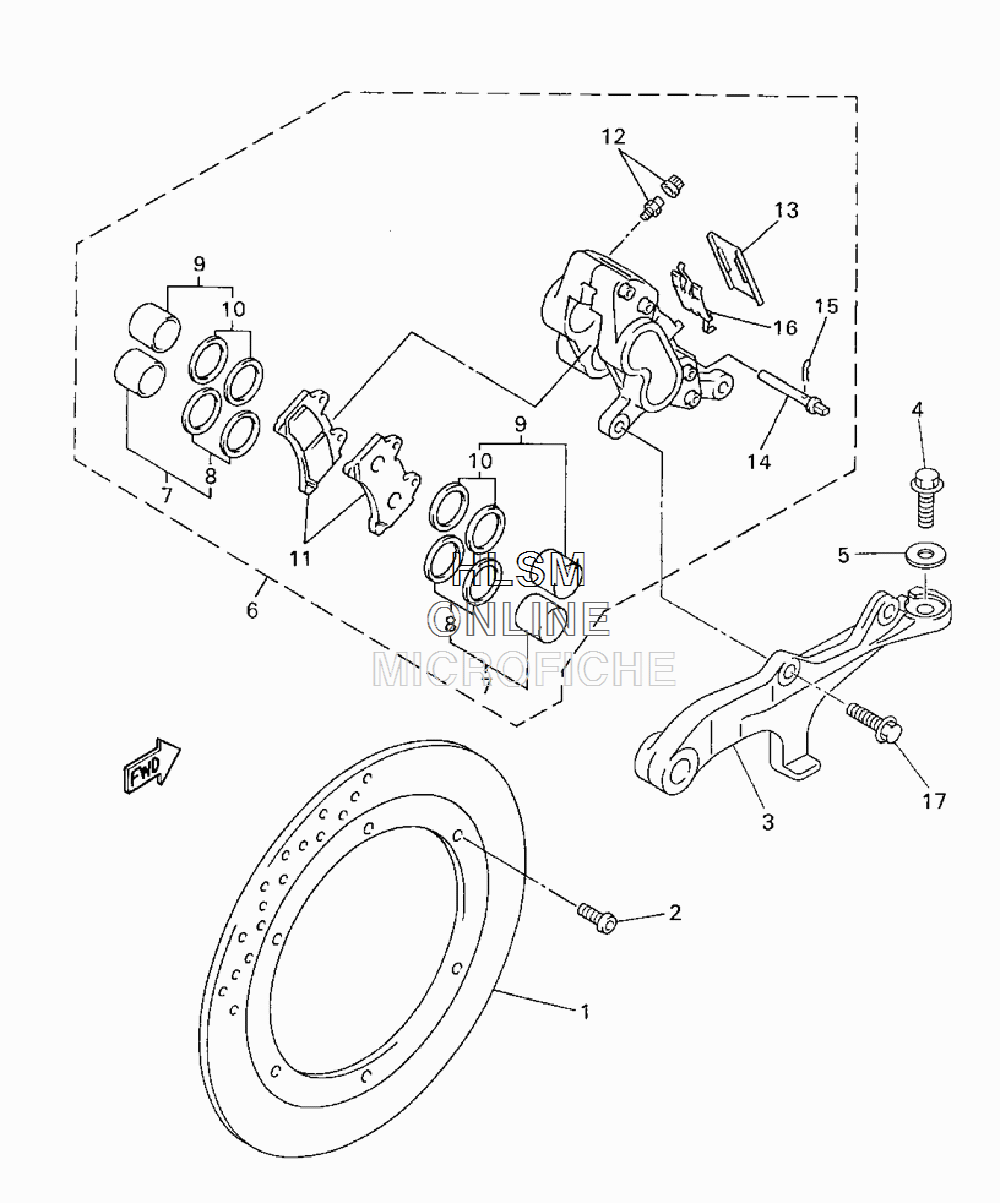

BRAKE - REAR CALIPER для Yamaha ROYAL STAR VENTURE - 2009 года выпуска
-
№АртикулНазвание
-
14NK-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
34XY-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
495024-10030-00 BOLT, FLANGEBOLT, FLANGE
-
590201-10437-00 WASHER, PLATEWASHER, PLATE
-
64NK-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
71KT-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
81KT-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
94NK-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
104NK-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
114NK-W0046-00-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
121J3-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
131NL-25836-00-00 COVER, DUSTCOVER, DUST
-
143HE-25924-00-00 PIN, PADPIN, PAD
-
153GM-25925-00-00 CLIPCLIP
-
161NL-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
1790105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
