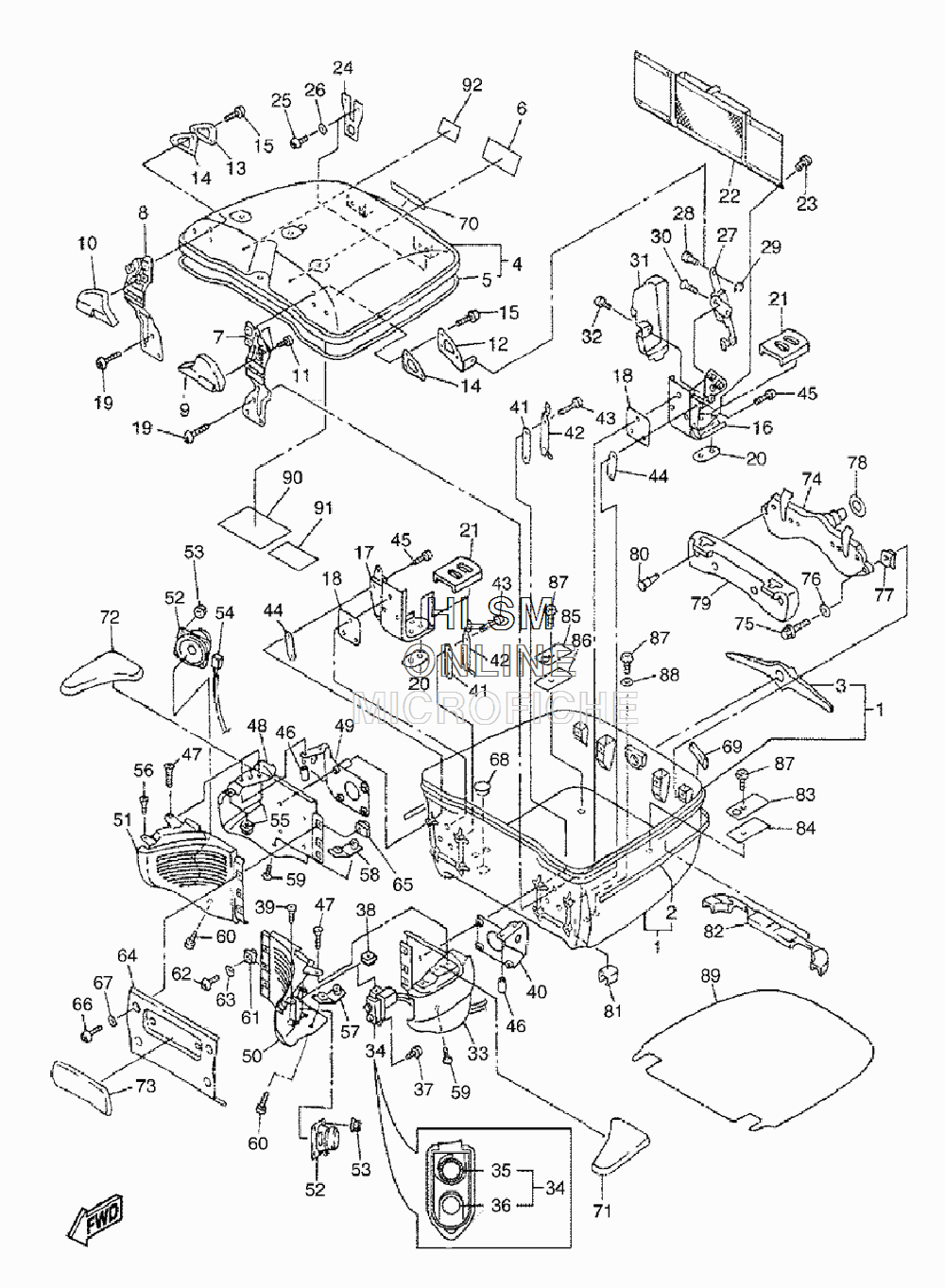

TRAVEL BAG для Yamaha ROYAL STAR VENTURE - 2009 года выпуска
-
№АртикулНазвание
-
14XY-W2846-00-1Y TRAVEL TRUNK LOWER SET (DRMK)TRAVEL TRUNK LOWER SET (DRMK)
-
22C9-2840H-30-00 GRAPHIC SET, TRAVEL TRUNKGRAPHIC SET, TRAVEL TRUNK
-
34XY-28445-00-00 EMBLEMEMBLEM
-
44XY-W2847-00-PC TRAVEL TRUNK UPPER SET (DRMK)TRAVEL TRUNK UPPER SET (DRMK)
-
54XY-28428-00-00 SEAL 1SEAL 1
-
61D6-2179W-30-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
61D6-2176P-22-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
-
74XY-2845E-01-00 HINGE 2HINGE 2
-
84XY-2849E-01-00 HINGE 4HINGE 4
-
94XY-2846K-00-P1 COVER, HINGE 1 (DRMK)COVER, HINGE 1 (DRMK)
-
104XY-2846L-00-P1 COVER, HINGE 2 (DRMK)COVER, HINGE 2 (DRMK)
-
1197707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
124XY-28487-00-00 PLATE 2PLATE 2
-
134XY-28497-00-00 PLATE 3PLATE 3
-
144XY-28485-00-00 PLATE, RUBBER 3PLATE, RUBBER 3
-
1592017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
164XY-28486-01-00 BRACKET 5BRACKET 5
-
174XY-28496-01-00 BRACKET 6BRACKET 6
-
184XY-28484-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
1992017-05020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
204XY-28483-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
214XY-2848M-00-00 SEAT 4SEAT 4
-
224XY-2848L-00-00 SEAT 3SEAT 3
-
2390269-05039-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
244XY-28488-00-00 HOOKHOOK
-
2592017-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2690201-05725-00 WASHER, PLATEWASHER, PLATE
-
274XY-2845L-01-00 STOPPER, OPENSTOPPER, OPEN
-
284XY-2842L-00-00 PIN, STOPPERPIN, STOPPER
-
2999001-04600-00 CIRCLIPCIRCLIP
-
3098707-04010-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
314XY-2843F-00-00 COVER ASSYCOVER ASSY
-
3292017-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
334XY-8816E-01-P1 BASE, REMOCON.(DRMK)BASE, REMOCON.(DRMK)
-
344XY-88169-01-00 REMOTE CONTROL 1REMOTE CONTROL 1
-
354XY-88137-00-00 KNOBKNOB
-
364XY-88157-00-00 BUTTON 1BUTTON 1
-
3797707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
3890183-05024-00 NUT, SPRINGNUT, SPRING
-
3998707-05014-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
404XY-28426-00-00 BRACKET 1BRACKET 1
-
414XY-2848J-00-00 PLATE, RUBBER 8PLATE, RUBBER 8
-
424XY-2841R-00-00 PLATE, BOTTOMPLATE, BOTTOM
-
4392017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
444XY-2847J-00-00 PLATE, RUBBER 7PLATE, RUBBER 7
-
4592017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4690179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
4798707-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
484XY-2841L-01-P1 BODY (DRMK)BODY (DRMK)
-
494XY-28436-00-00 BRACKET 2BRACKET 2
-
504XY-88165-01-P1 GRILLE, SPEAKER 1 (DRMK)GRILLE, SPEAKER 1 (DRMK)
-
514XY-88175-01-P1 GRILLE, SPEAKER 2 (DRMK)GRILLE, SPEAKER 2 (DRMK)
-
524XY-88161-00-00 SPEAKER 1SPEAKER 1
-
5395707-05500-00 NUT, FLANGE (BLACK)NUT, FLANGE (BLACK)
-
544XY-88176-00-00 CORDCORD
-
5590183-05024-00 NUT, SPRINGNUT, SPRING
-
5698707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
574XY-2846H-01-00 PLATE, 4PLATE, 4
-
584XY-28417-01-00 PLATEPLATE
-
5990152-05009-00 SCREW, FLATSCREW, FLAT
-
6090154-05064-00 BOLT, SOCKETBOLT, SOCKET
-
6190183-05024-00 NUT, SPRINGNUT, SPRING
-
6298507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
6392907-05600-00 WASHER, PLATEWASHER, PLATE
-
644XY-2844J-00-PC COVER 4 (DRMK)COVER 4 (DRMK)
-
6590183-05024-00 NUT, SPRINGNUT, SPRING
-
6692014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6790202-05088-00 WASHER, PLATEWASHER, PLATE
-
6890338-24260-00 PLUGPLUG
-
691JK-21268-00-00 SEALSEAL
-
701D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
714XY-2848N-00-00 SEAT 5SEAT 5
-
724XY-2848P-00-00 SEAT 6SEAT 6
-
734XY-2848R-00-00 SEAT 7SEAT 7
-
744XY-W2841-00-00 LOCK ASSY 1LOCK ASSY 1
-
7597007-05020-00 BOLTBOLT
-
7692907-05600-00 WASHER, PLATEWASHER, PLATE
-
7790183-05024-00 NUT, SPRINGNUT, SPRING
-
784KN-2475M-00-00 SEALSEAL
-
794XY-28493-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
8090269-06001-00 RIVETRIVET
-
814XY-2847R-00-00 DAMPER 10DAMPER 10
-
824XY-2847N-00-00 DAMPER 8DAMPER 8
-
834XY-2846P-00-00 PLATE 7PLATE 7
-
844XY-2849J-00-00 PLATE, RUBBER 9PLATE, RUBBER 9
-
854XY-2846R-00-00 PLATE 8PLATE 8
-
864XY-2847T-00-00 PLATE, RUBBER 11PLATE, RUBBER 11
-
8792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
8892907-06600-00 WASHER, PLATEWASHER, PLATE
-
894XY-2848H-00-00 SEATSEAT
-
904XY-28446-02-00 LABEL, CAUTIONLABEL, CAUTION
-
914NK-21668-A0-00 LABEL, TIRELABEL, TIRE
-
924LE-21686-A0-00 PLATE, ROUTING 2PLATE, ROUTING 2
