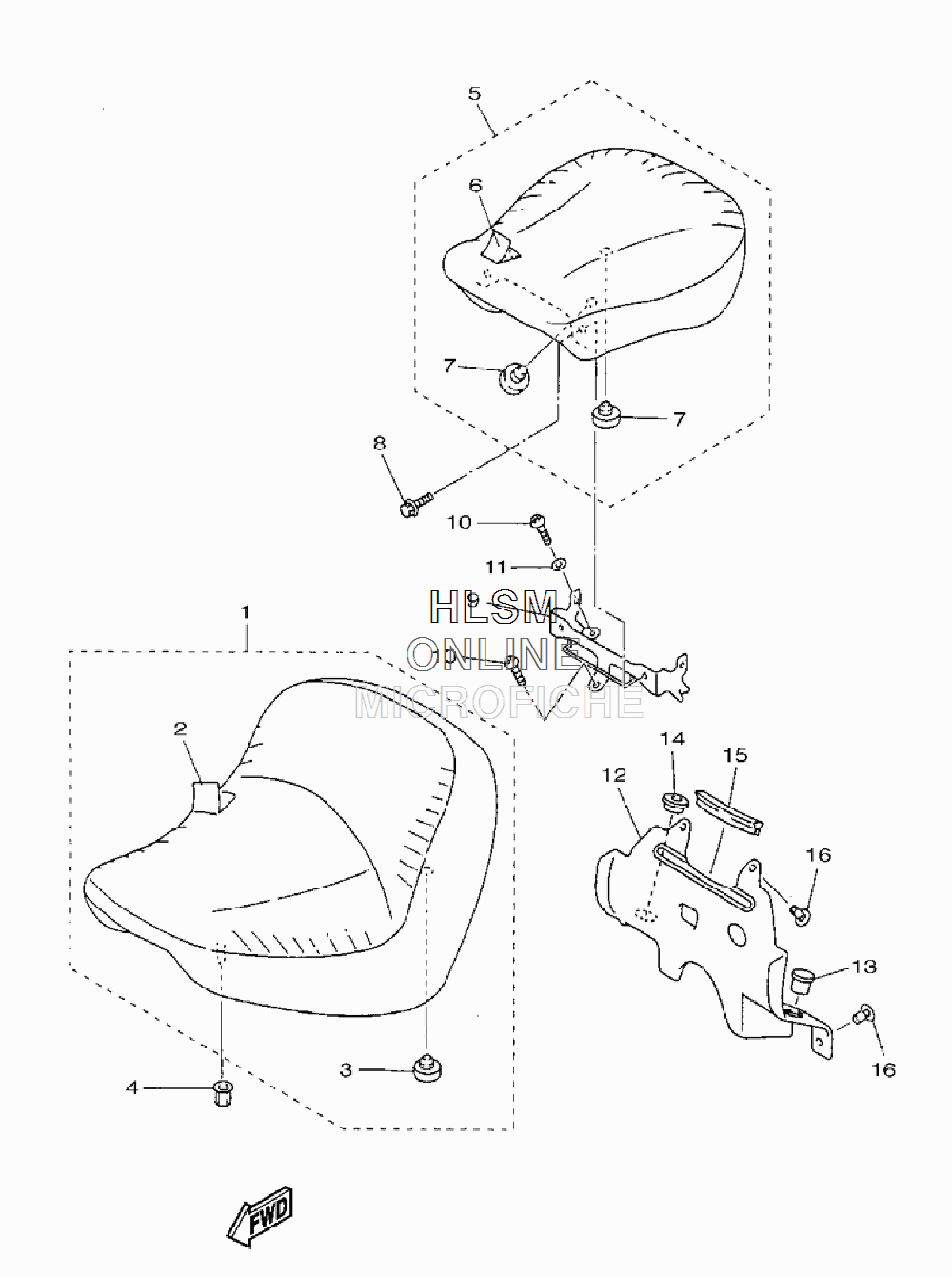

SEAT для Yamaha ROYAL STAR VENTURE - 2009 года выпуска
-
№АртикулНазвание
-
14XY-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
24XY-2470F-10-00 SEAT COVER COMP.SEAT COVER COMP.
-
322W-24741-00-00 PAD, SEATPAD, SEAT
-
490179-06500-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
54XY-24750-10-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
64XY-2477A-10-00 SEAT COVER ASSYSEAT COVER ASSY
-
722W-24741-00-00 PAD, SEATPAD, SEAT
-
895807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
94XY-2475H-10-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1092017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190201-062A8-00 WASHER, PLATEWASHER, PLATE
-
124XY-24796-00-00 COVERCOVER
-
1390338-23172-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
144XY-24847-00-00 HOLDER 1HOLDER 1
-
154XY-2475M-00-00 SEALSEAL
-
1690269-06083-00 RIVETRIVET
