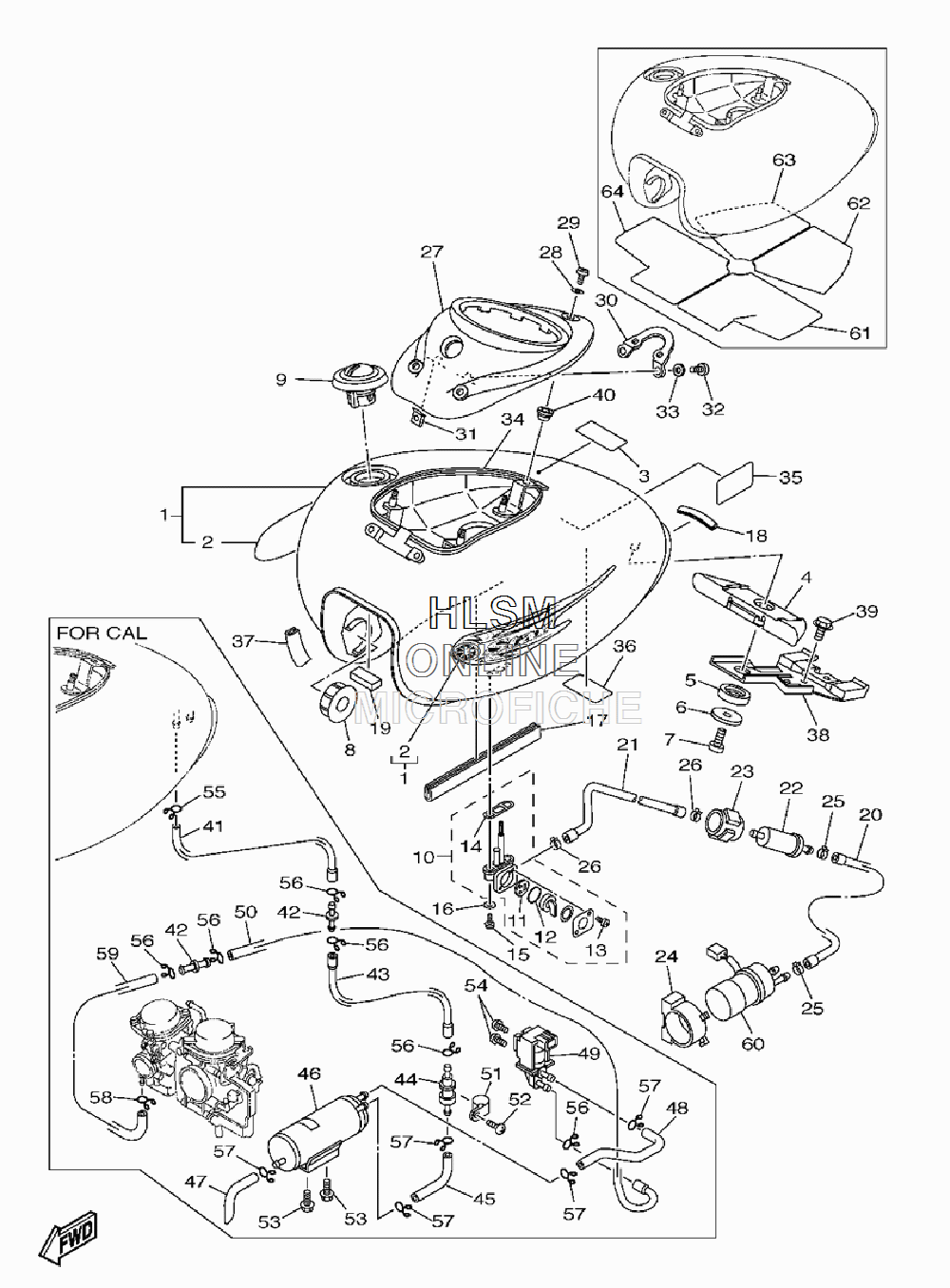

FUEL TANK для Yamaha V STAR 1100 MIDNIGHT CUSTOM - 2009 года выпуска
-
№АртикулНазвание
-
15EL-Y2410-A2-X5 FUEL TANK COMP. FOR SMXFUEL TANK COMP. FOR SMX
-
15EL-Y2410-V2-W4 FUEL TANK COMP. FOR SMXFUEL TANK COMP. FOR SMX
-
25P9-24240-00-00 GRAPHIC SETGRAPHIC SET
-
35GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
45EL-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
54TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
690201-060S9-00 WASHER, PLATEWASHER, PLATE
-
792017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
82YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
95BN-24602-02-00 CAP ASSY FOR YB (EXCEPT CALIF.)CAP ASSY FOR YB (EXCEPT CALIF.)
-
94NK-24602-12-00 CAP ASSY FOR YB (CALIF. ONLY)CAP ASSY FOR YB (CALIF. ONLY)
-
104WM-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
113AC-24523-00-00 VALVE PACKINGVALVE PACKING
-
123AJ-24534-01-00 SEAL, COCKSEAL, COCK
-
1397801-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
144X8-24512-00-00 O-RINGO-RING
-
1590149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1690202-05193-00 WASHER, PLATEWASHER, PLATE
-
171FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
185EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
193XV-21717-00-00 DAMPERDAMPER
-
205EL-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
215EL-24313-10-00 PIPE 3PIPE 3
-
221FK-24560-10-00 FILTER ASSYFILTER ASSY
-
231FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
244EB-24398-00-00 BAND 1BAND 1
-
2590467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
2690467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
275EL-2171A-00-00 COVER, TOPCOVER, TOP
-
2890202-05180-00 WASHER, PLATEWASHER, PLATE
-
2990110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
305EL-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
3190183-05061-00 NUT, SPRINGNUT, SPRING
-
3298507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392907-05600-00 WASHER, PLATEWASHER, PLATE
-
345EL-2414G-00-00 SEALSEAL
-
354DN-21268-00-00 SEALSEAL
-
363SP-21732-00-00 SEAL 1SEAL 1
-
375EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
385EL-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
3995807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
4090179-05009-00 NUTNUT
-
415EL-24321-10-00 PIPE 10PIPE 10
-
424XY-14568-00-00 JOINTJOINT
-
435EL-24312-20-00 PIPE 2PIPE 2
-
445RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
4590445-11056-00 HOSEHOSE
-
465EL-24170-00-00 CANISTER ASSYCANISTER ASSY
-
475EL-24316-10-00 PIPE 6PIPE 6
-
485EL-24317-10-00 PIPE 7PIPE 7
-
494WM-14896-00-00 VALVE, OUTER VENT CONTROL 2VALVE, OUTER VENT CONTROL 2
-
505EL-24315-10-00 PIPE 5PIPE 5
-
5190461-15139-00 CLAMPCLAMP
-
5297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5390105-06446-00 BOLT, FLANGEBOLT, FLANGE
-
5490150-05040-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
5590467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
5690467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
5790467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
5890467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
595EL-24322-10-00 PIPE 11PIPE 11
-
605KS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
615YS-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
625YS-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
635YS-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
645YS-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
