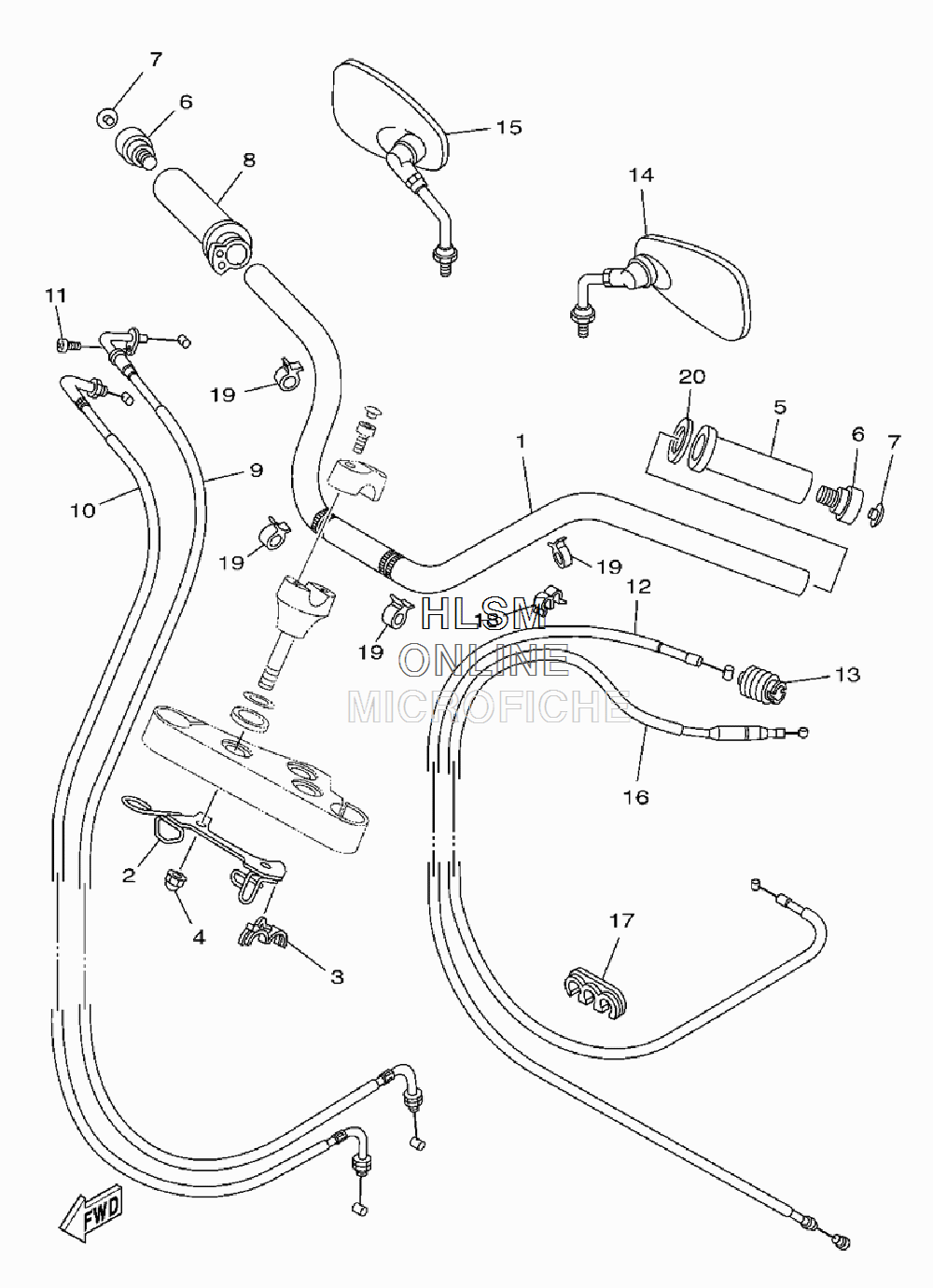

HANDLEBAR W/ CABLES для Yamaha V STAR 1100 MIDNIGHT CUSTOM - 2009 года выпуска
-
№АртикулНазвание
-
15EL-26111-11-00 HANDLEBARHANDLEBAR
-
25PB-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
390464-18246-00 CLAMPCLAMP
-
490176-12052-00 NUT, CROWNNUT, CROWN
-
54NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
65EL-26246-00-00 END, GRIPEND, GRIP
-
75EL-23469-00-00 CAP, BOLTCAP, BOLT
-
84XY-26240-00-00 GRIP ASSYGRIP ASSY
-
95PB-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
105PB-26312-10-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1198507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
125PB-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
131E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
144NK-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
154NK-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
165EL-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
1790464-07003-00 CLAMPCLAMP
-
1890464-06214-00 CLAMPCLAMP
-
1990464-15192-00 CLAMPCLAMP
-
2090202-26142-00 WASHER, PLATEWASHER, PLATE
