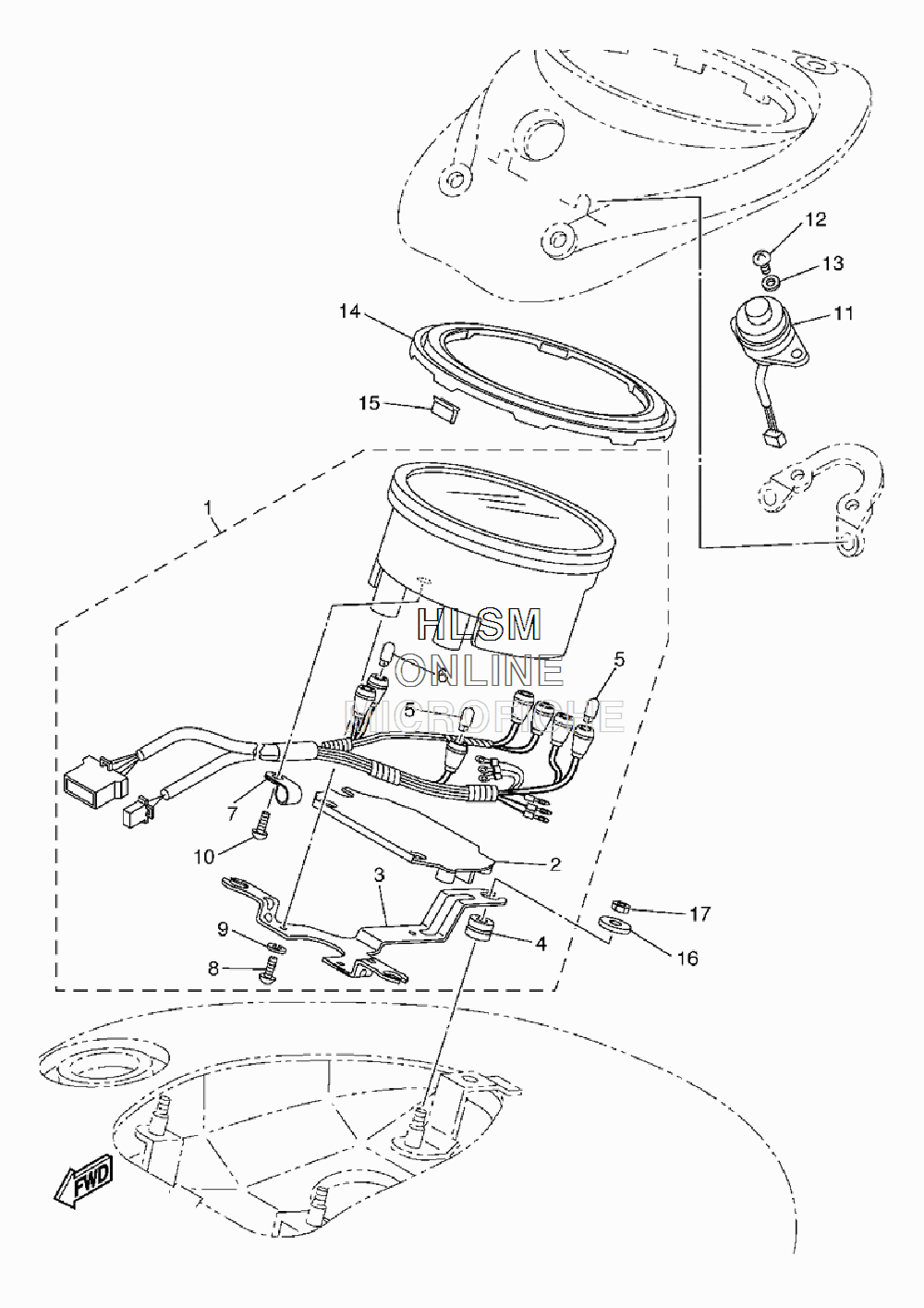

INSTRUMENT PANEL для Yamaha V STAR 1100 MIDNIGHT CUSTOM - 2009 года выпуска
-
№АртикулНазвание
-
15PB-83500-30-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
24NK-83579-00-00 COVER, METER 2COVER, METER 2
-
35EL-83519-00-00 BRACKET, METERBRACKET, METER
-
44NK-83523-00-00 DAMPERDAMPER
-
53FV-83517-00-00 BULB (12V-1.7W T6.5)BULB (12V-1.7W T6.5)
-
64NK-83517-00-00 BULB (12V-1.4W, T6.5)BULB (12V-1.4W, T6.5)
-
75EL-8357E-00-00 CLAMPCLAMP
-
898507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992907-04100-00 WASHER, SPRINGWASHER, SPRING
-
1097707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
114NK-8358J-00-00 SWITCH, METER CONTROLSWITCH, METER CONTROL
-
1298507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-05600-00 WASHER, PLATEWASHER, PLATE
-
145EL-28346-00-00 MOLE 2MOLE 2
-
151FK-2171H-00-00 GUIDEGUIDE
-
1690201-05036-00 WASHER, PLATEWASHER, PLATE
-
1795307-05600-00 NUTNUT
