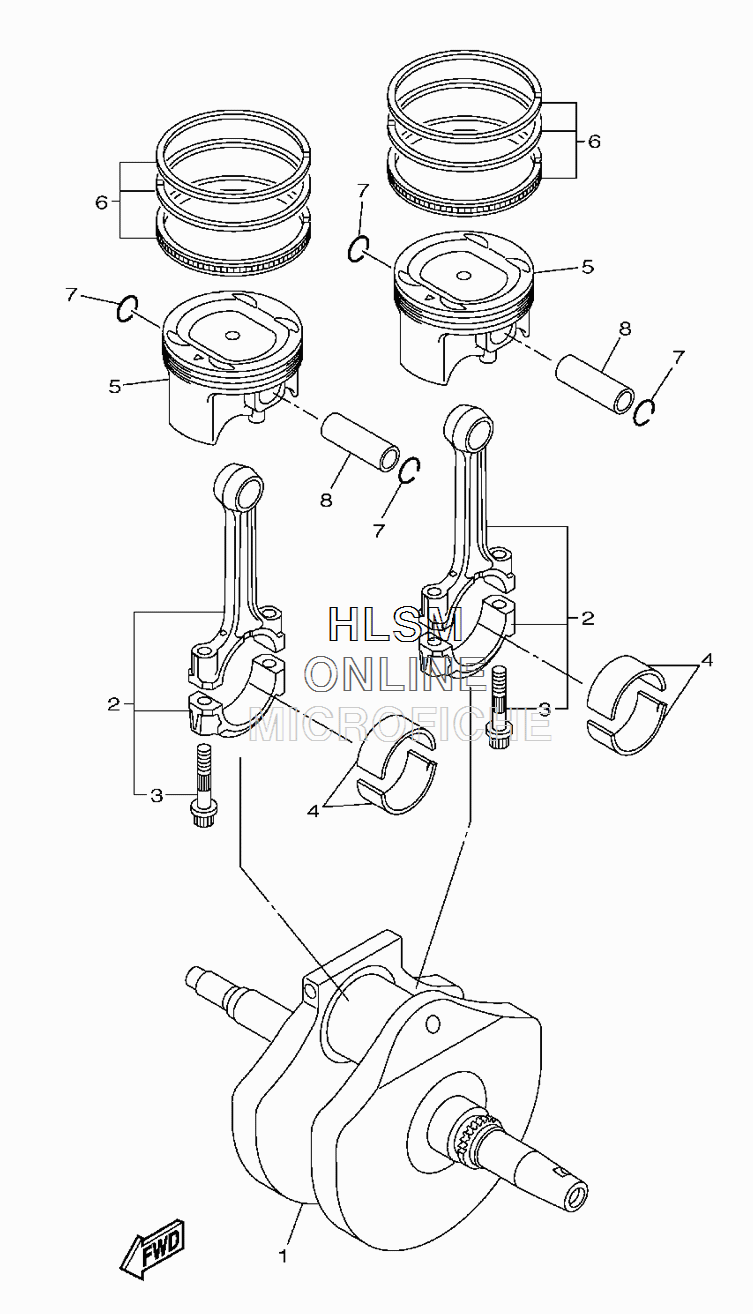

CRANKSHAFT - PISTON для Yamaha V STAR 950 - 2009 года выпуска
-
№АртикулНазвание
-
15S7-11411-00-00 CRANKSHAFTCRANKSHAFT
-
25S7-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35YU-11654-00-00 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
45YU-11656-10-00 PLANE BEARING, CONNECTING ROD UR BLACKPLANE BEARING, CONNECTING ROD UR BLACK
-
45YU-11656-20-00 PLANE BEARING, CONNECTING ROD UR BLACKPLANE BEARING, CONNECTING ROD UR BLACK
-
45YU-11656-30-00 PLANE BEARING, CONNECTING ROD UR GREENPLANE BEARING, CONNECTING ROD UR GREEN
-
55S7-11631-01-00 PISTON (STD)PISTON (STD)
-
65S7-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
793450-22146-00 CIRCLIPCIRCLIP
-
85PS-11633-00-00 PIN, PISTONPIN, PISTON
