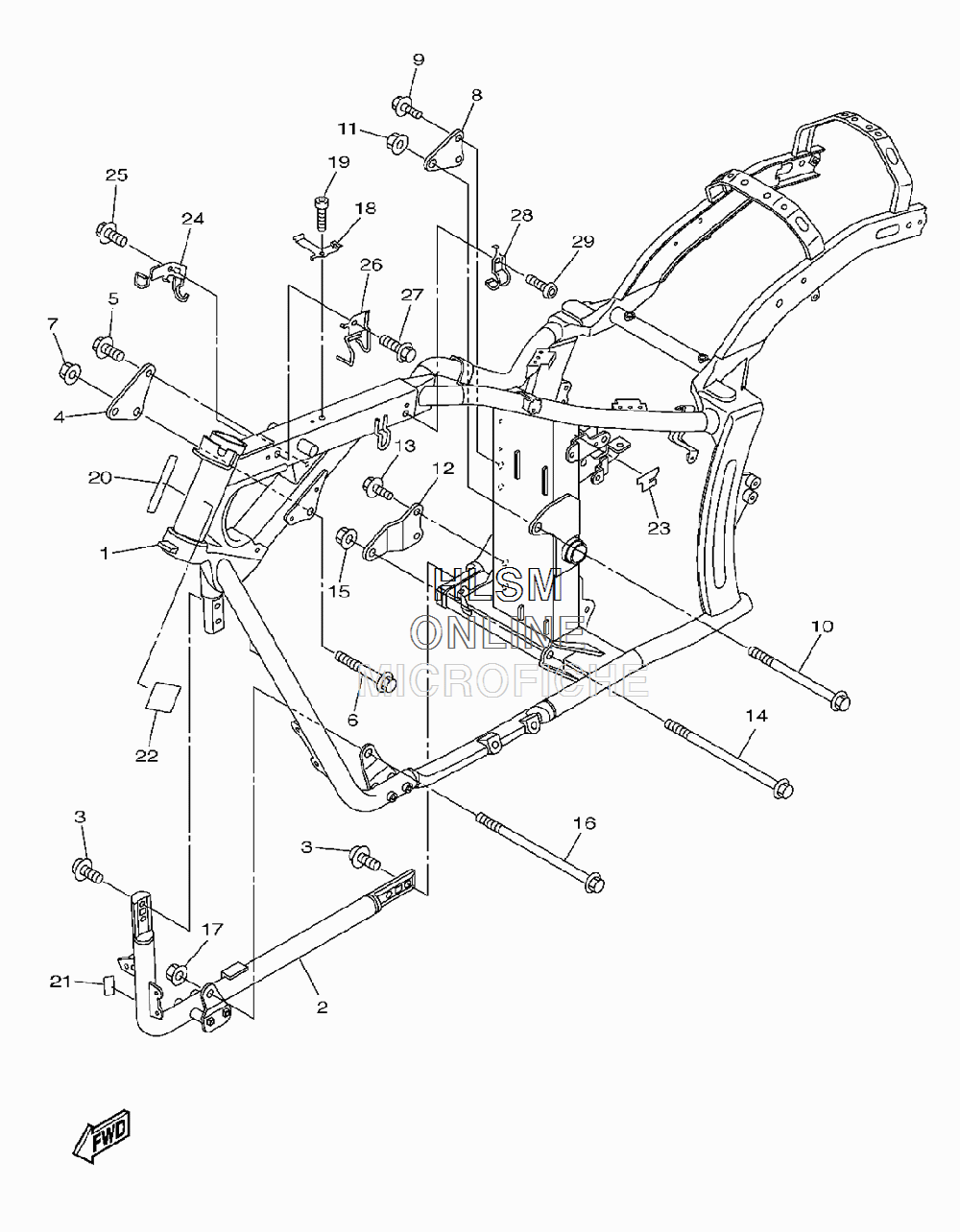

FRAME для Yamaha V STAR 950 - 2009 года выпуска
-
№АртикулНазвание
-
15S7-21110-01-00 FRAME COMP.FRAME COMP.
-
25S7-21280-00-00 DOWNTUBE COMP.DOWNTUBE COMP.
-
390110-10016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45S7-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
590105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
690105-12252-00 BOLT, FLANGEBOLT, FLANGE
-
790185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
85S7-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
990105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-12043-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125S7-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1390105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-12044-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690105-12069-00 BOLT, FLANGEBOLT, FLANGE
-
1790185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
185S7-21158-00-00 BRACKETBRACKET
-
1991312-06020-00 BOLT (3JB)BOLT (3JB)
-
203D8-2117G-00-00 PROTECTORPROTECTOR
-
215PX-21268-00-00 SEALSEAL
-
221D7-2639G-00-00 SEALSEAL
-
235S7-21732-00-00 SEAL 1SEAL 1
-
245S7-26279-00-00 GUIDE, CABLEGUIDE, CABLE
-
2595027-06016-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
265S7-26475-00-00 HOLDERHOLDER
-
2795027-06016-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
2890462-16005-00 CLAMPCLAMP
-
2992012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
