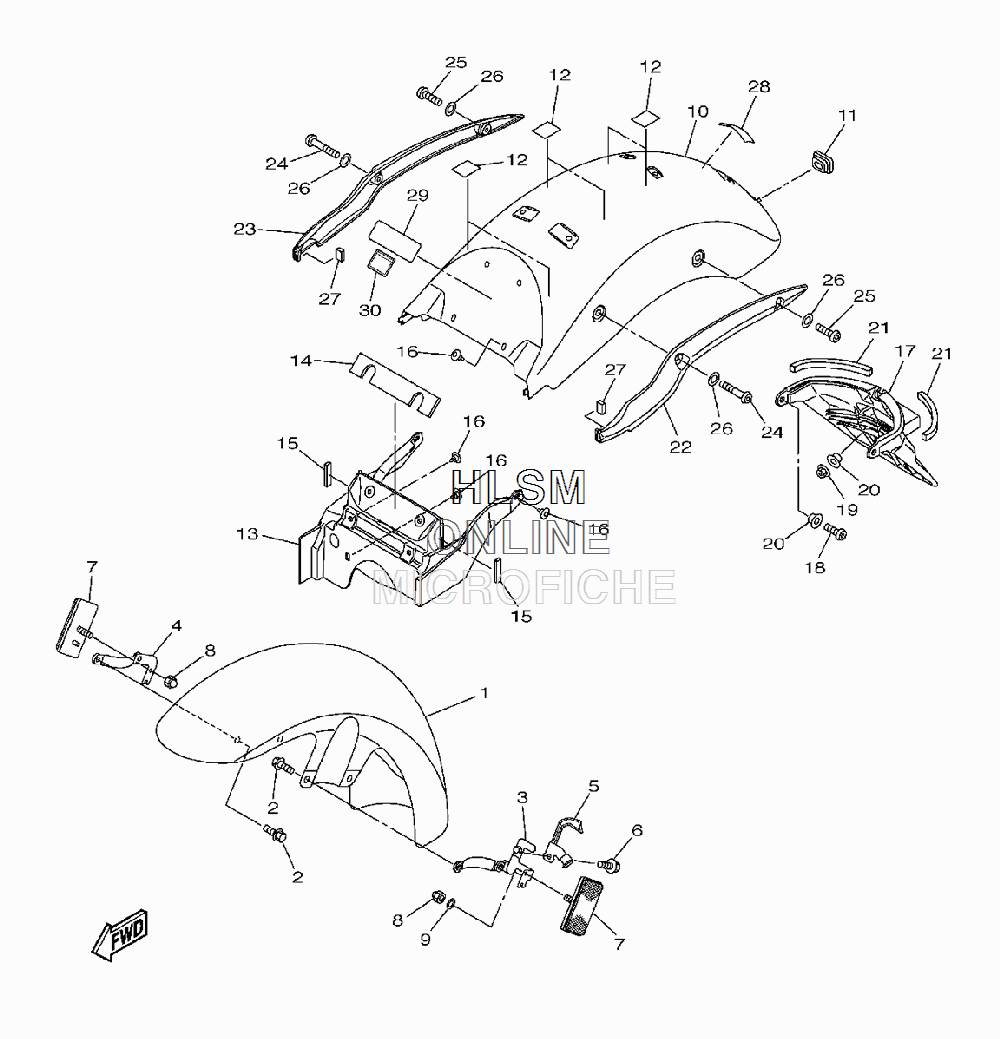

FENDER - FRONT / REAR для Yamaha V STAR 950 - 2009 года выпуска
-
№АртикулНазвание
-
15S7-21510-00-P0 FRONT FENDER COMP. (USE FOR SMX / 0903)FRONT FENDER COMP. (USE FOR SMX / 0903)
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
35S7-21587-00-00 STAY 1STAY 1
-
45S7-21588-00-00 STAY 2STAY 2
-
53D8-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
890176-05004-00 NUT, CROWNNUT, CROWN
-
990201-051K1-00 WASHER, PLATEWASHER, PLATE
-
105S7-21610-00-P0 REAR FENDER COMP. (USE FOR SMX / 0903)REAR FENDER COMP. (USE FOR SMX / 0903)
-
1190480-13027-00 GROMMETGROMMET
-
125PX-21669-01-00 SEALSEAL
-
135S7-21629-00-P0 GUARD, MUD (USE FOR SMX / 0903)GUARD, MUD (USE FOR SMX / 0903)
-
145S7-21638-00-00 DAMPER 1DAMPER 1
-
155S7-21639-00-00 DAMPER 2DAMPER 2
-
1690269-07077-00 RIVETRIVET
-
175S7-2162R-00-00 FENDER 2FENDER 2
-
1892012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1995602-06200-00 NUT,UNUT,U
-
2090387-07717-00 COLLARCOLLAR
-
214DN-21669-00-00 SEALSEAL
-
225S7-2164F-00-00 STAY 1STAY 1
-
235S7-2164G-00-00 STAY 2STAY 2
-
2492014-08045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2592014-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2692990-08200-00 WASHER, PLAINWASHER, PLAIN
-
273MA-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
281D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
295S7-2179W-00-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
295S7-2176P-00-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
-
305PX-21686-00-00 PLATE, ROUTING 2 (FOR CALIFORNIA YCB)PLATE, ROUTING 2 (FOR CALIFORNIA YCB)
