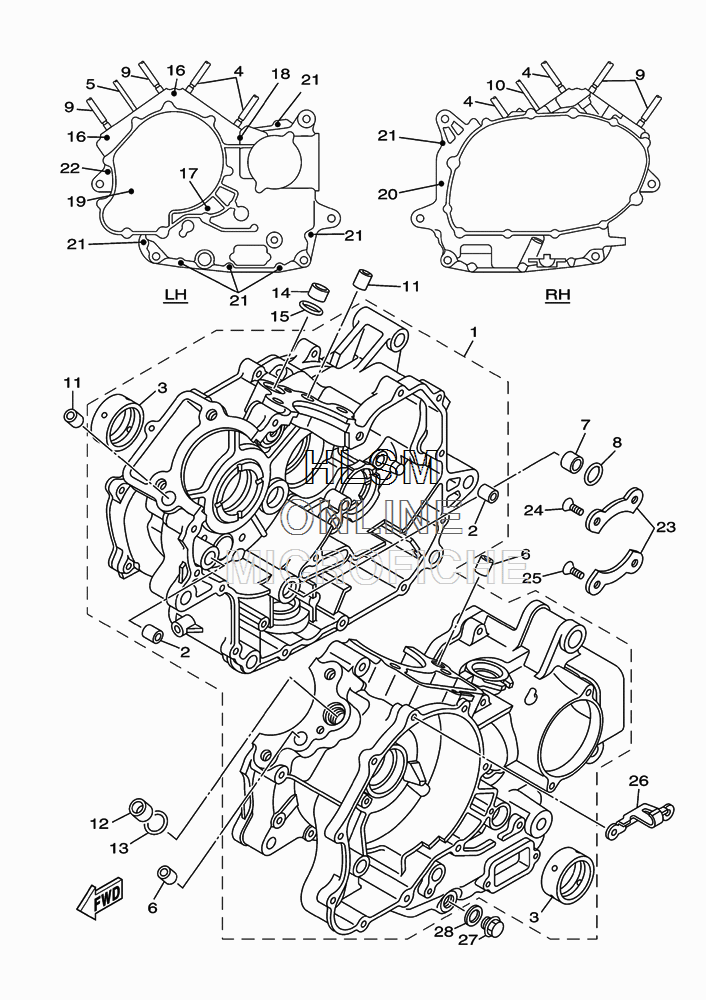

CRANKCASE для Yamaha V STAR 650 CUSTOM [ XVS65ZW/C] (3B6G/3B6H) - 2010 года выпуска
-
№АртикулНазвание
-
14TR-15100-20-00 CRANKCASE ASSYCRANKCASE ASSY
-
291815-16017-00 PIN, DOWELPIN, DOWEL
-
322U-11416-80-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
322U-11416-90-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
490116-10611-00 BOLT, STUDBOLT, STUD
-
590116-08404-00 BOLT, STUDBOLT, STUD
-
699530-14016-00 PIN, DOWELPIN, DOWEL
-
790387-16547-00 COLLARCOLLAR
-
893210-18322-00 O-RINGO-RING
-
990116-10405-00 BOLT, STUDBOLT, STUD
-
1090116-08404-00 BOLT, STUDBOLT, STUD
-
1199530-14016-00 PIN, DOWELPIN, DOWEL
-
1290387-16547-00 COLLARCOLLAR
-
1393210-18322-00 O-RINGO-RING
-
1490387-16547-00 COLLARCOLLAR
-
1593210-18322-00 O-RINGO-RING
-
1691314-08060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1791317-08080-00 BOLTBOLT
-
1891314-08100-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1991317-06095-00 BOLTBOLT
-
2091380-06045-00 BOLTBOLT
-
2191317-06045-00 BOLTBOLT
-
2291314-06055-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2490151-08022-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2590149-08152-00 SCREWSCREW
-
2622U-15441-01-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
2790340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
28214-11198-01-00 GASKETGASKET
