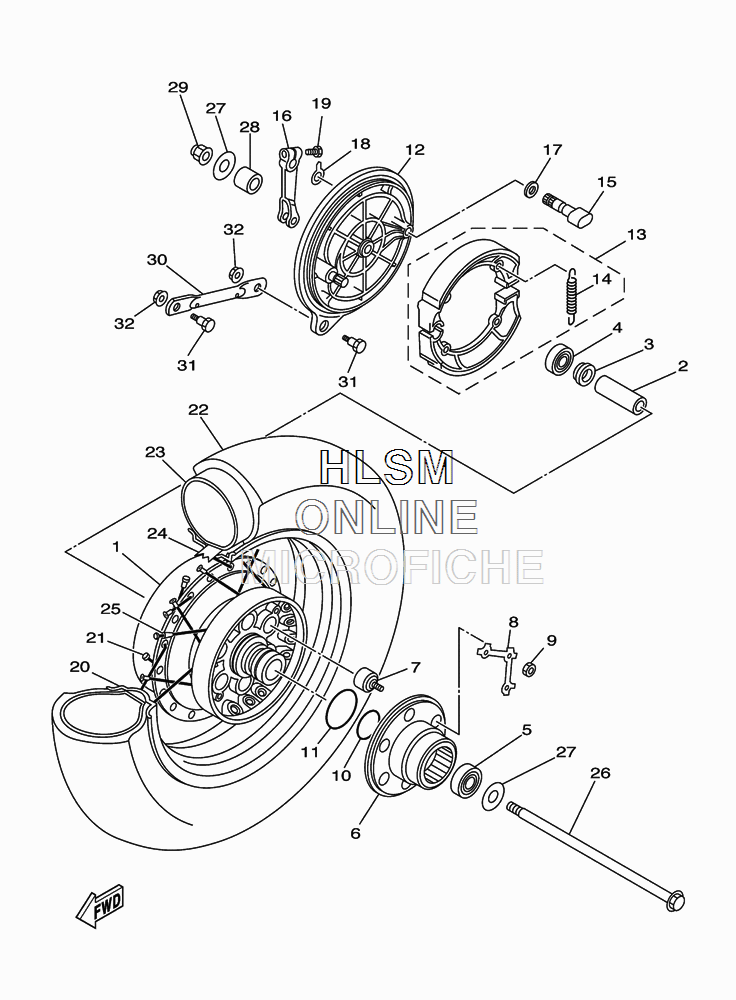

WHEEL - REAR для Yamaha V STAR 650 CUSTOM [ XVS65ZW/C] (3B6G/3B6H) - 2010 года выпуска
-
№АртикулНазвание
-
13JB-25311-00-35 HUB, REARHUB, REAR
-
22GV-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
32GV-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
493306-30213-00 BEARINGBEARING
-
593306-30212-00 BEARINGBEARING
-
64TR-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
74TR-25364-00-00 DAMPERDAMPER
-
816G-25412-00-00 WASHERWASHER
-
990170-10011-00 NUTNUT
-
1093210-48530-00 O-RINGO-RING
-
1193210-61750-00 O-RINGO-RING
-
124TR-25321-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
133DR-W253E-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
1490507-20002-00 SPRING, TENSIONSPRING, TENSION
-
154H7-25351-00-00 CAMSHAFTCAMSHAFT
-
16214-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1790201-14577-00 WASHER, PLATEWASHER, PLATE
-
184H7-2533A-02-00 PLATE, INDICATORPLATE, INDICATOR
-
1990101-06764-00 BOLTBOLT
-
2094435-15586-00 RIM (15M/C X MT3.50)RIM (15M/C X MT3.50)
-
214VR-25304-02-00 SPOKE SET, REARSPOKE SET, REAR
-
2294117-1508W-00 TIRE (170/80-15 M/C 77S K555)TIRE (170/80-15 M/C 77S K555)
-
2294117-1508U-00 TIRE (170/80-15 M/C 77S G546)TIRE (170/80-15 M/C 77S G546)
-
2394217-15298-00 TUBE (170/80-15 M/C PV78)TUBE (170/80-15 M/C PV78)
-
2394217-15299-00 TUBE (170/80-15 M/C PV78)TUBE (170/80-15 M/C PV78)
-
2494317-15172-00 BAND,RIM (3.00-15)BAND,RIM (3.00-15)
-
2494317-15173-00 BAND,RIM (45-15)BAND,RIM (45-15)
-
253HT-25398-00-00 BALANCER, WHEEL (15G)BALANCER, WHEEL (15G)
-
264TR-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2790201-152L7-00 WASHER, PLATEWASHER, PLATE
-
2890387-151R1-00 COLLARCOLLAR
-
2995604-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
304TR-25371-00-00 BAR, TENSIONBAR, TENSION
-
3190109-085G1-00 BOLTBOLT
-
3295604-08200-00 NUT, U FLANGENUT, U FLANGE
