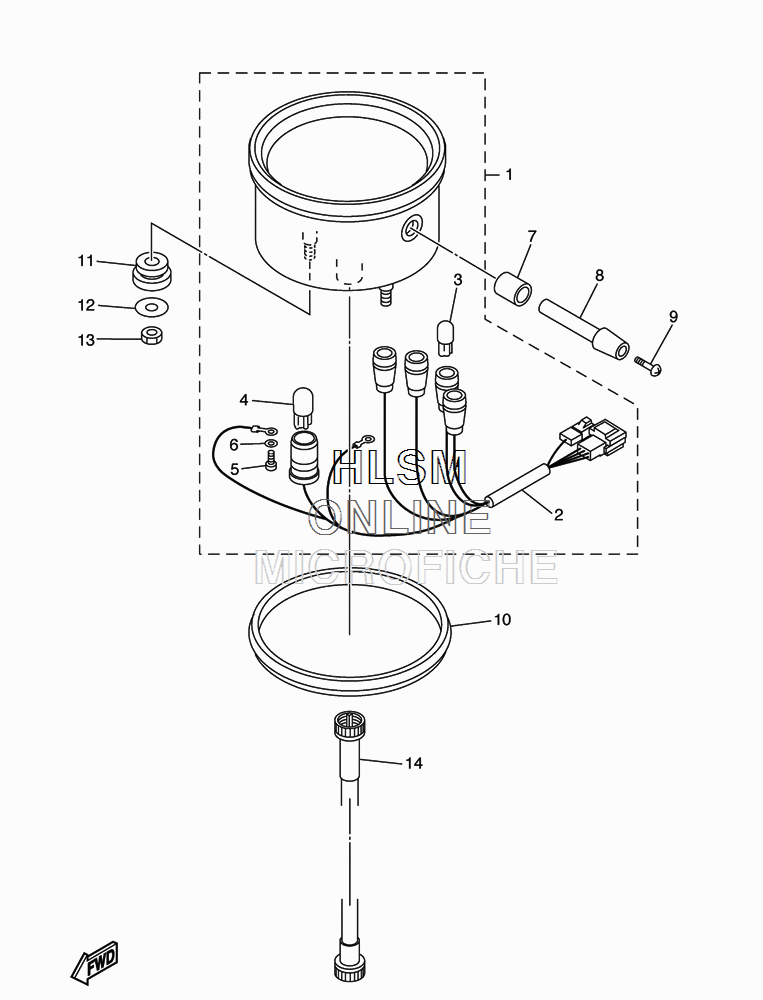

INSTRUMENT PANEL для Yamaha V STAR 650 CUSTOM [ XVS65ZW/C] (3B6G/3B6H) - 2010 года выпуска
-
№АртикулНазвание
-
14VR-83580-40-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
25SC-83520-20-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
33FV-83517-00-00 BULB (12V-1.7W T6.5)BULB (12V-1.7W T6.5)
-
43GM-83517-00-00 BULB (12V-1.7W)BULB (12V-1.7W)
-
598502-03010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692902-03100-00 WASHERWASHER
-
74TR-83535-00-00 TUBETUBE
-
81JK-83578-00-00 KNOB, TRIP METERKNOB, TRIP METER
-
990157-02031-00 SCREW, PAN HEADSCREW, PAN HEAD
-
104TR-83513-00-00 DAMPERDAMPER
-
114TR-83526-00-00 DAMPER 2DAMPER 2
-
1290201-05033-00 WASHER, PLATEWASHER, PLATE
-
1395307-05700-00 NUTNUT
-
144VR-83550-01-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
