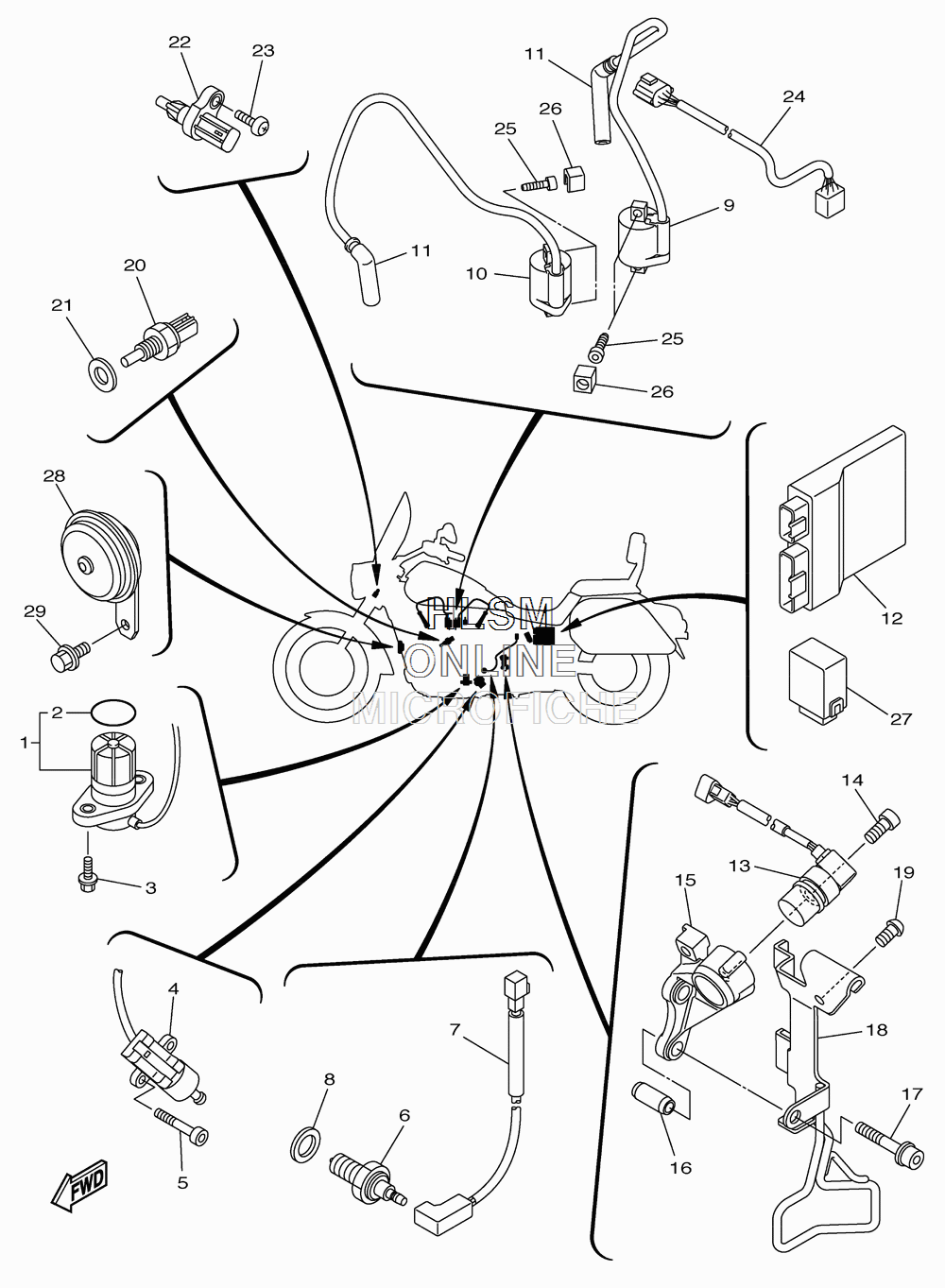

ELECTRICAL для Yamaha V STAR 950 TOURER - 2010 года выпуска
-
№АртикулНазвание
-
15VY-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
25VY-8A8E0-00-00 O-RINGO-RING
-
395022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
43D8-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
590110-05217-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
63GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
75S7-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
890430-10148-00 GASKETGASKET
-
95S7-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
101D7-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
115S7-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
125S7-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
135S7-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1490110-06168-00 BOLTBOLT
-
155S7-81948-00-00 BRACKETBRACKET
-
1699530-08012-00 PIN, DOWELPIN, DOWEL
-
1790110-06300-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185S7-81845-01-00 PLATEPLATE
-
1990149-06040-00 SCREWSCREW
-
204P9-83591-00-00 THERMO UNITTHERMO UNIT
-
2190201-10128-00 WASHER, PLATEWASHER, PLATE
-
225YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2398502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
245S7-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
2591380-06016-00 BOLTBOLT
-
265S7-21399-00-00 CAPCAP
-
275S7-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
283D8-83371-00-00 HORNHORN
-
2990105-082A5-00 BOLT, FLANGEBOLT, FLANGE
