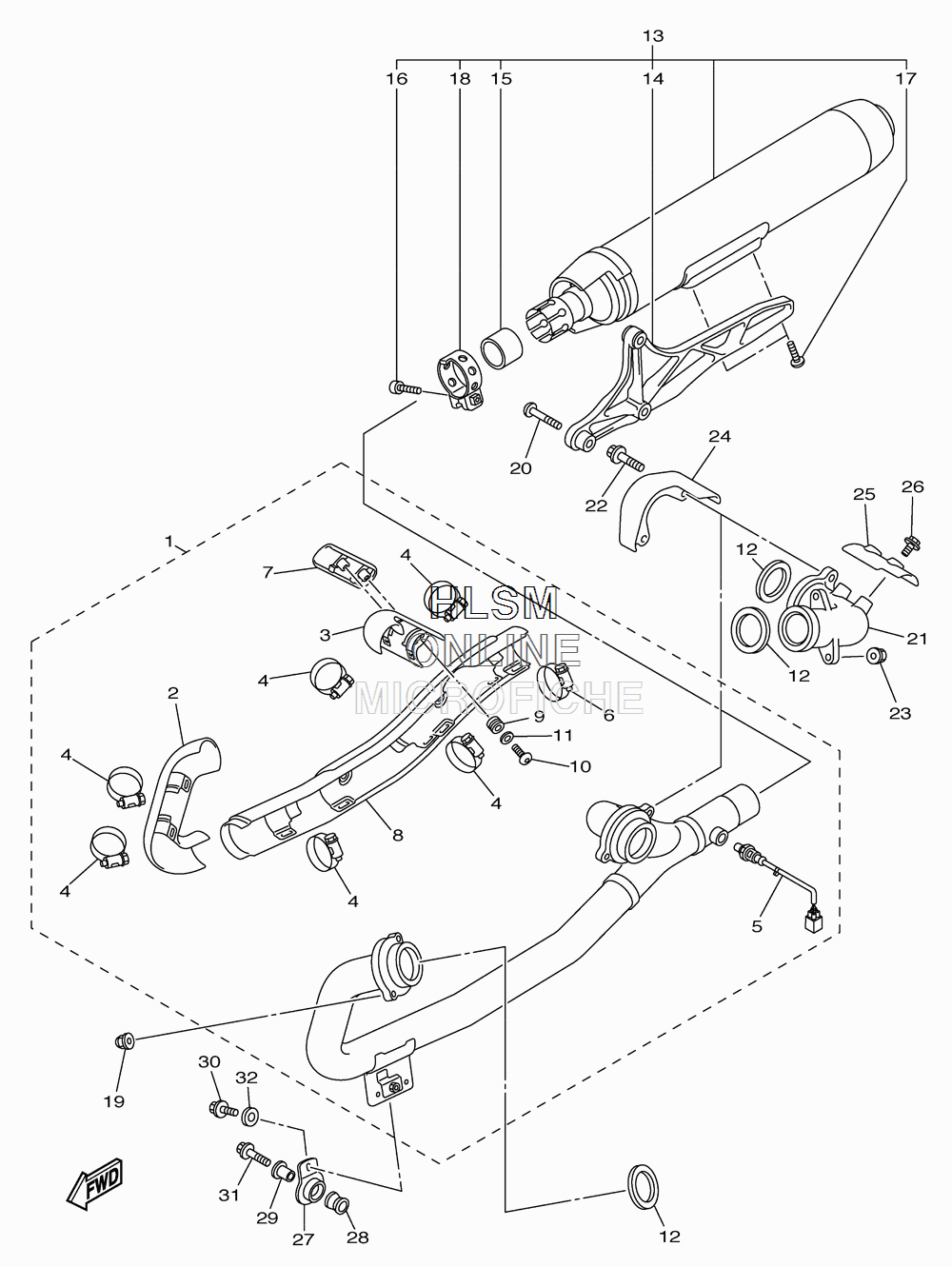

EXHAUST для Yamaha V STAR 950 TOURER - 2010 года выпуска
-
№АртикулНазвание
-
15S7-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
25S7-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
35S7-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
490450-40001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55S7-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
690450-45001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
75S7-14748-00-00 PROTECTOR, MUFFLER 4PROTECTOR, MUFFLER 4
-
85S7-14738-00-00 PROTECTOR, MUFFLER 3PROTECTOR, MUFFLER 3
-
990480-17005-00 GROMMETGROMMET
-
1090149-06280-00 SCREWSCREW
-
1190201-064K6-00 WASHER, PLATEWASHER, PLATE
-
123EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
135S7-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
145S7-14772-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
155YU-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
1691314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790111-10006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
185S7-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
1990176-08006-00 NUT, CROWNNUT, CROWN
-
2090111-10032-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
215S7-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
2295814-08035-00 BOLT, FLANGEBOLT, FLANGE
-
2390185-08146-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
245S7-14624-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
255S7-1468W-00-00 PLATE, SILENCER 3PLATE, SILENCER 3
-
2695880-06010-00 BOLT, FLANGEBOLT, FLANGE
-
275S7-14649-00-00 STAY, EXHAUST PIPE 2STAY, EXHAUST PIPE 2
-
285VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2990387-08021-00 COLLARCOLLAR
-
3095817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3195817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
3290201-087A9-00 WASHER, PLATEWASHER, PLATE
