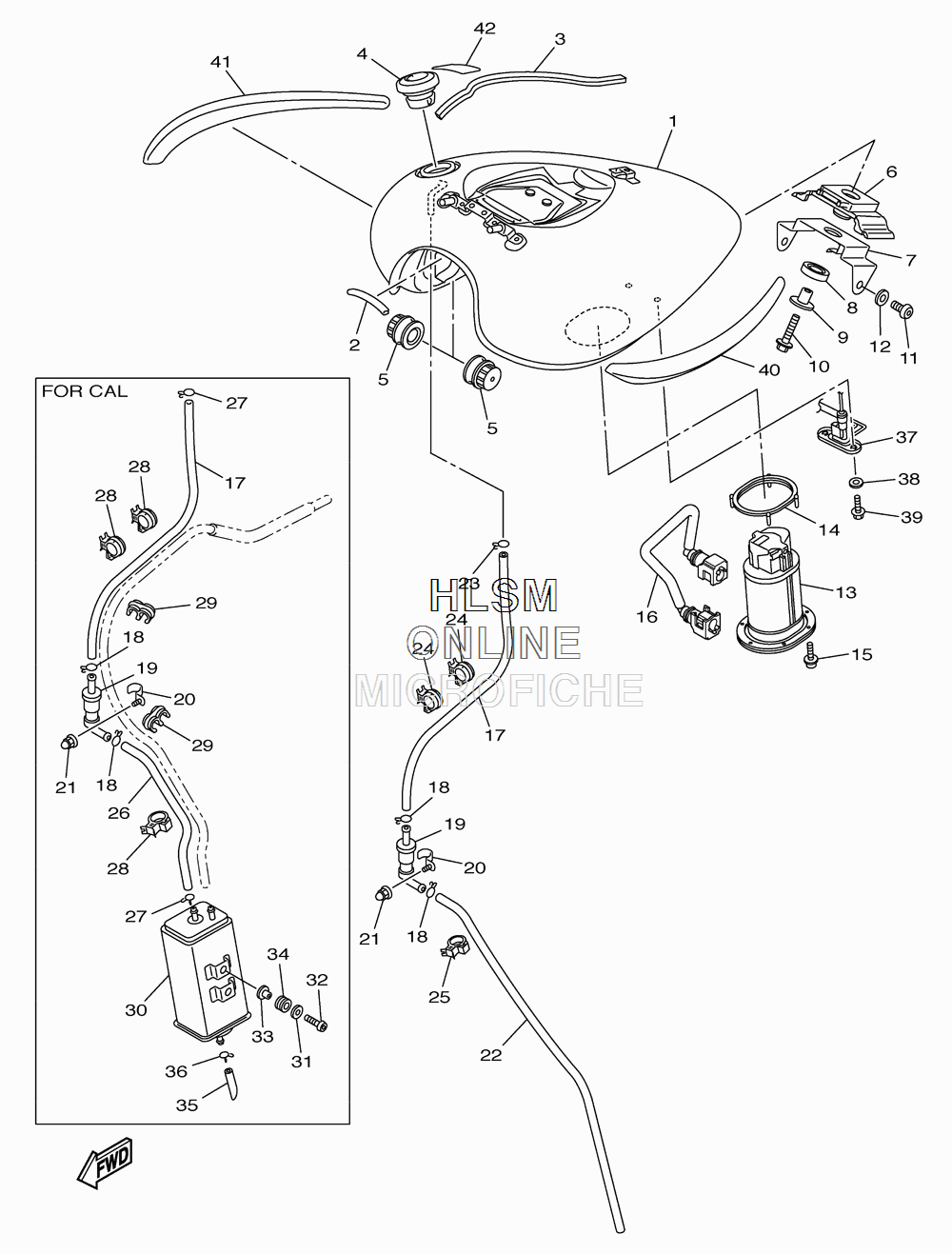

FUEL TANK для Yamaha V STAR 950 TOURER - 2010 года выпуска
-
№АртикулНазвание
-
15S7-YK241-00-P0 FUEL TANK COMP. (SMX)FUEL TANK COMP. (SMX)
-
24BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
35S7-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
44NK-24602-12-00 CAP ASSYCAP ASSY
-
55S7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
65S7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
75S7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
84TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
990387-06177-00 COLLARCOLLAR
-
1095812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1192012-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290201-08M01-00 WASHER, PLATEWASHER, PLATE
-
135S7-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
145VN-24486-00-00 O-RINGO-RING
-
1590110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165S7-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
175S7-24313-00-00 PIPE 3PIPE 3
-
1890467-09006-00 CLIPCLIP
-
195RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
205S7-24136-00-00 CLAMP 2CLAMP 2
-
2190176-05004-00 NUT, CROWNNUT, CROWN
-
2290445-11M71-00 HOSE (L450)HOSE (L450)
-
2390467-09006-00 CLIPCLIP
-
2490464-20191-00 CLAMPCLAMP
-
2590464-10190-00 CLAMPCLAMP
-
265S7-2486A-00-00 PIPE 1 (CALIFORNIA)PIPE 1 (CALIFORNIA)
-
2790467-09006-00 CLIP (CALIFORNIA)CLIP (CALIFORNIA)
-
2890464-20191-00 CLAMP (CALIFORNIA)CLAMP (CALIFORNIA)
-
2990464-10M57-00 CLAMP (CALIFORNIA)CLAMP (CALIFORNIA)
-
305PX-24170-00-00 CANISTER ASSY (CALIFORNIA)CANISTER ASSY (CALIFORNIA)
-
3190201-06023-00 WASHER, PLATE (CALIFORNIA)WASHER, PLATE (CALIFORNIA)
-
3290111-06046-00 BOLT, HEX. SOCKET BUTTON (CALIFORNIA)BOLT, HEX. SOCKET BUTTON (CALIFORNIA)
-
3390387-062L2-00 COLLAR (CALIFORNIA)COLLAR (CALIFORNIA)
-
3490480-13163-00 GROMMET (CALIFORNIA)GROMMET (CALIFORNIA)
-
353D8-24325-00-00 PIPE 14 (CALIFORNIA)PIPE 14 (CALIFORNIA)
-
3690467-10008-00 CLIP, SCISSOR (CALIFORNIA)CLIP, SCISSOR (CALIFORNIA)
-
375S7-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
3890202-05187-00 WASHER, PLATEWASHER, PLATE
-
3995817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
405S7-2416C-00-00 EMBLEM 3D SETEMBLEM 3D SET
-
415S7-2417C-00-00 EMBLEM 3D SETEMBLEM 3D SET
-
425GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
