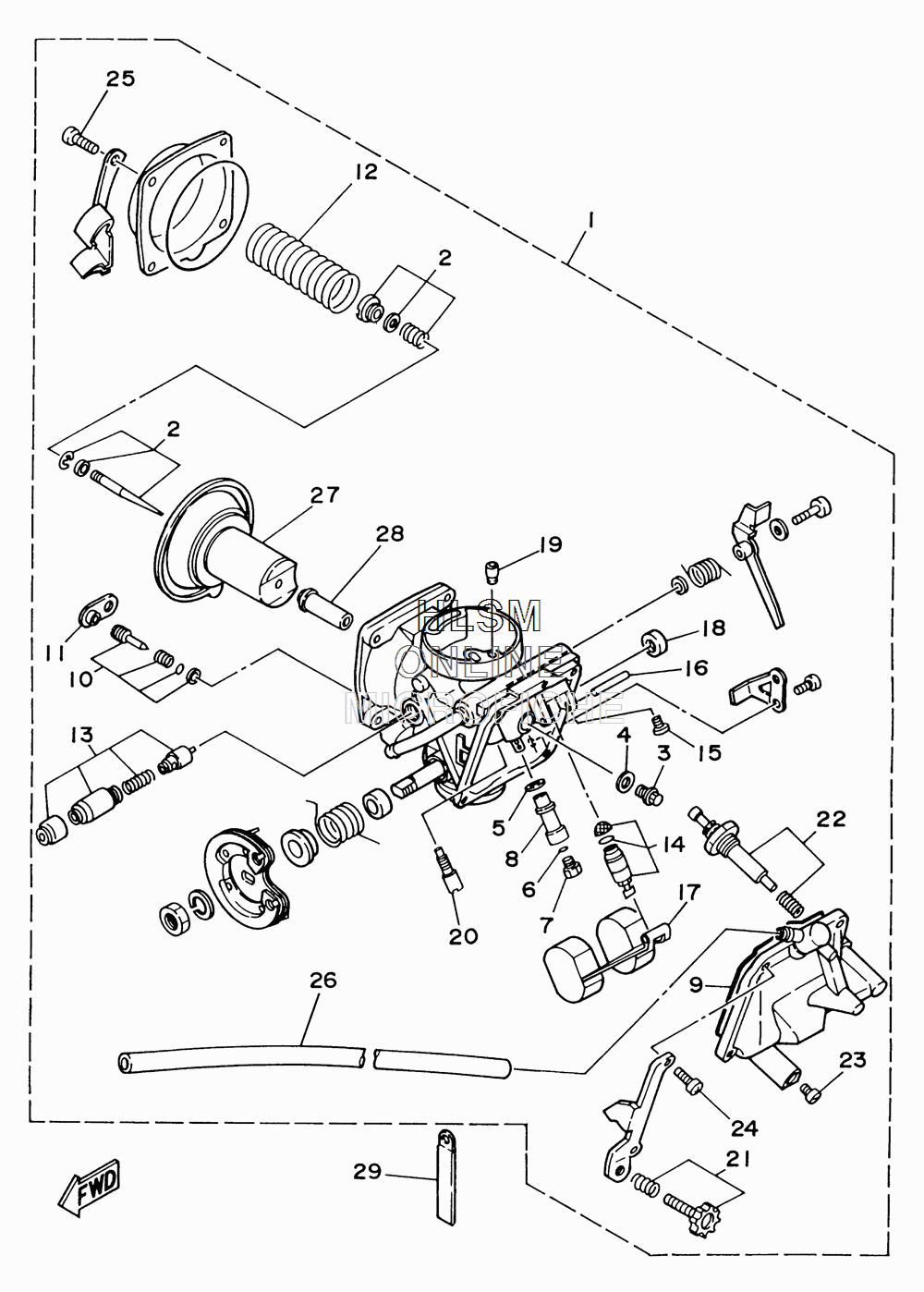

CARBURETOR для Yamaha V STAR 250 - 2011 года выпуска
-
№АртикулНазвание
-
12UJ-14900-01-00 CARBURETOR ASSY (EXCEPT CALIF)CARBURETOR ASSY (EXCEPT CALIF)
-
13BG-14900-01-00 CARBURETOR ASSY (CALIF ONLY)CARBURETOR ASSY (CALIF ONLY)
-
23BG-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
31HX-14565-00-00 ...SCREW...SCREW
-
4137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
51AE-14237-00-00 ...GASKET...GASKET
-
61AE-14227-00-00 ...O-RING...O-RING
-
7620-14231-22-00 ...JET, MAIN (#110)...JET, MAIN (#110)
-
81AE-14261-00-00 ...HOLDER...HOLDER
-
91HX-14147-00-00 ...O-RING...O-RING
-
1012R-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
113F9-14118-00-00 ...CAP...CAP
-
121HX-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
133DM-1410A-01-00 ...STARTER SET...STARTER SET
-
143CF-14107-10-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
151FN-14565-00-00 ...SCREW...SCREW
-
16353-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
171HX-14985-00-00 ...FLOAT...FLOAT
-
18256-14997-00-00 ...SEAL...SEAL
-
191HX-14231-31-00 ...JET, MAIN (#155)...JET, MAIN (#155)
-
2022F-14142-17-00 ...JET, PILOT (#17.5)...JET, PILOT (#17.5)
-
211HX-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
223DM-14504-01-00 ...ROD SET...ROD SET
-
2312R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2498501-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2598501-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
262LH-14197-00-00 ...HOSE...HOSE
-
273BG-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
283DM-14141-30-00 ...MAIN NOZZLE (0-0)...MAIN NOZZLE (0-0)
-
2990461-06087-00 PLATEPLATE
