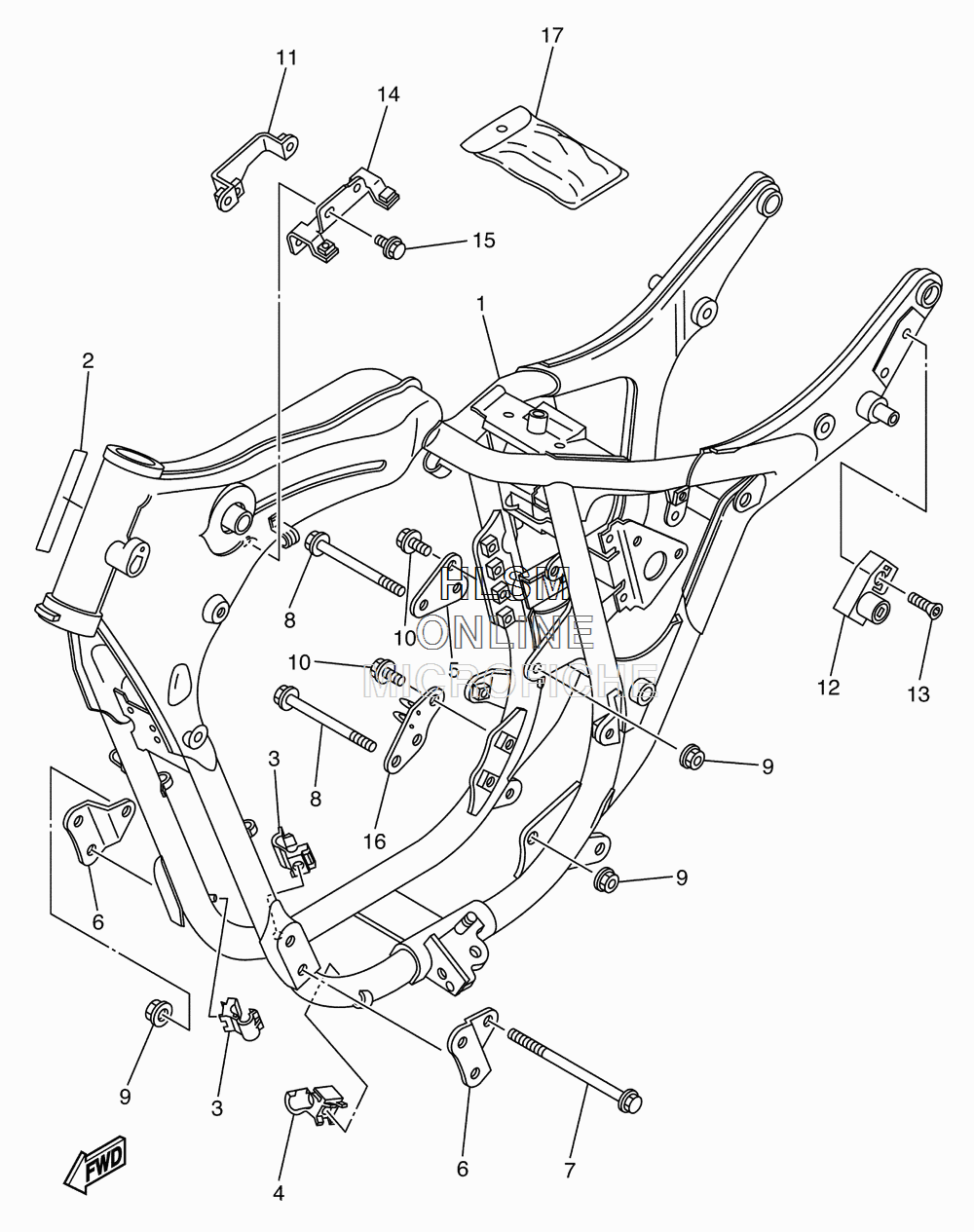

FRAME для Yamaha V STAR 250 - 2011 года выпуска
-
№АртикулНазвание
-
12UJ-21110-20-33 FRAME COMP.FRAME COMP.
-
23HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
390464-05188-00 CLAMPCLAMP
-
490464-10190-00 CLAMPCLAMP
-
52UJ-21318-01-00 STAY, ENGINE 5STAY, ENGINE 5
-
62UJ-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
795814-08150-00 BOLT, FLANGEBOLT, FLANGE
-
895814-08110-00 BOLT, FLANGEBOLT, FLANGE
-
990179-08656-00 NUT,SPEC'L SHAPENUT,SPEC'L SHAPE
-
1095817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
112UJ-21243-00-00 PLATE, BRIDGEPLATE, BRIDGE
-
1226H-21308-01-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
1390149-06154-00 SCREWSCREW
-
142UJ-2135Y-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
162UJ-21319-00-00 STAY, ENGINE 6STAY, ENGINE 6
-
172UJ-28100-00-00 TOOL KITTOOL KIT
