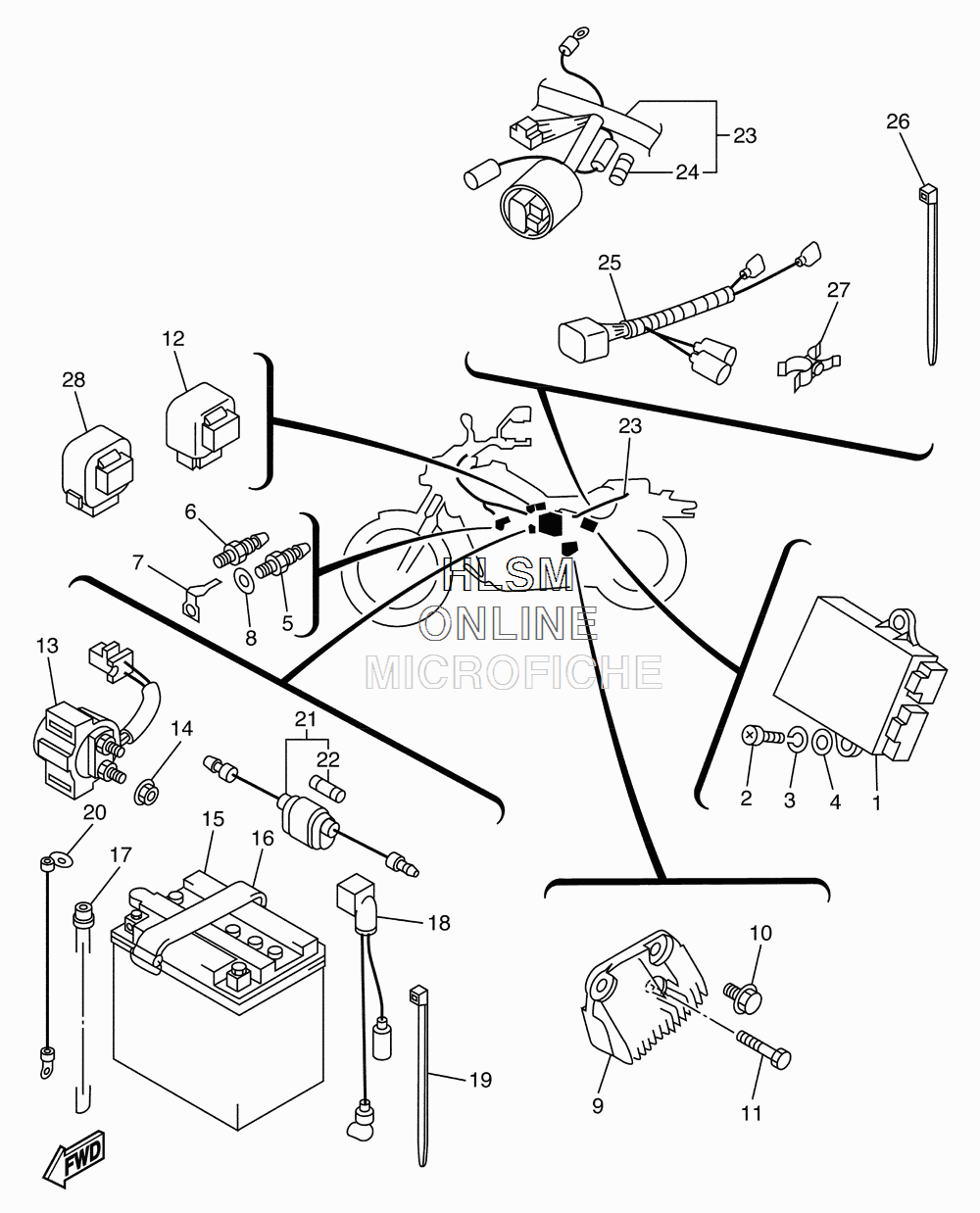

ELECTRICAL для Yamaha V STAR 250 - 2011 года выпуска
-
№АртикулНазвание
-
12UJ-82305-00-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
55FU-83790-20-00 HEATER ASSY (30W) (CALIF ONLY)HEATER ASSY (30W) (CALIF ONLY)
-
55FU-83790-00-00 HEATER ASSY (15W) (EXCEPT CALIF)HEATER ASSY (15W) (EXCEPT CALIF)
-
65FU-83790-20-00 HEATER ASSY (30W)HEATER ASSY (30W)
-
75FU-82103-00-00 TERMINAL 1TERMINAL 1
-
890201-08016-00 WASHER, PLATEWASHER, PLATE
-
93DM-81960-01-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1090119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1197007-06030-00 BOLTBOLT
-
122UJ-81950-00-00 RELAY ASSYRELAY ASSY
-
1336Y-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1495707-06500-00 NUT, FLANGENUT, FLANGE
-
153DN-82110-01-00 BATTERY ASSY (CB10L-A2 GS-T)BATTERY ASSY (CB10L-A2 GS-T)
-
16118-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1790445-08248-00 HOSE (L500)HOSE (L500)
-
182UJ-82115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
195Y9-12491-00-00 CLAMP 1CLAMP 1
-
202UJ-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
212UJ-82150-02-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
22148-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
232UJ-82590-20-00 WIRE HARNESS ASSY (EXCEPT CALIF)WIRE HARNESS ASSY (EXCEPT CALIF)
-
233BG-82590-20-00 WIRE HARNESS ASSY (CALIF ONLY)WIRE HARNESS ASSY (CALIF ONLY)
-
241E6-82151-00-00 FUSE (10A)FUSE (10A)
-
252UJ-82509-01-00 WIRE, SUB LEADWIRE, SUB LEAD
-
265Y9-12491-00-00 CLAMP 1CLAMP 1
-
2790464-16119-00 CLAMPCLAMP
-
283GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
