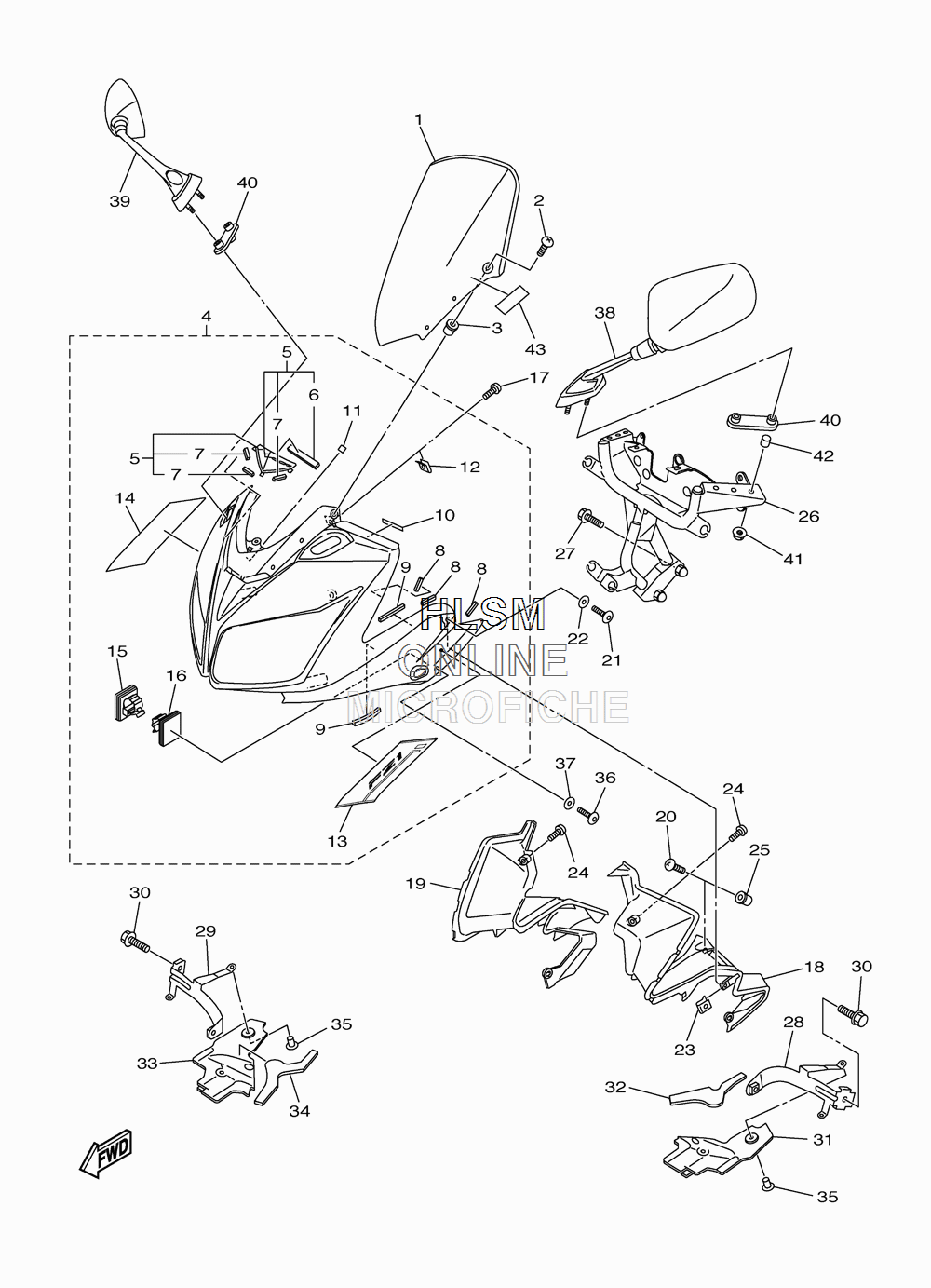

COWLING для Yamaha FZ1 - 2012 года выпуска
-
№АртикулНазвание
-
13C3-28381-10-00 WINDSHIELDWINDSHIELD
-
290150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
390179-05523-00 NUTNUT
-
43C3-W283G-20-P6 BODY, FRONT UPPER 1 (FOR BWC1)BODY, FRONT UPPER 1 (FOR BWC1)
-
53C3-Y283W-10-00 ...COVER ASSY...COVER ASSY
-
63C3-28371-01-00 ......DAMPER......DAMPER
-
73C3-28372-00-00 ......DAMPER......DAMPER
-
83C3-2837J-00-00 ...DAMPER 5...DAMPER 5
-
94XV-2834E-00-00 ...DAMPER 3...DAMPER 3
-
103P6-28307-00-00 ...SEAL...SEAL
-
115JW-23844-00-00 ...SEAL...SEAL
-
1290183-050A6-00 ...NUT, SPRING...NUT, SPRING
-
131CA-28391-30-00 ...GRAPHIC 1...GRAPHIC 1
-
141CA-28392-30-00 ...GRAPHIC 2...GRAPHIC 2
-
1590464-62085-00 ...CLAMP...CLAMP
-
1690464-20021-00 ...CLAMP...CLAMP
-
1790154-05007-00 SCREW, BINDINGSCREW, BINDING
-
183C3-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
193C3-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
2090154-05007-00 SCREW, BINDINGSCREW, BINDING
-
2190110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290202-06170-00 WASHER, PLATEWASHER, PLATE
-
2390183-06053-00 NUT, SPRINGNUT, SPRING
-
2490154-05007-00 SCREW, BINDINGSCREW, BINDING
-
2590179-05523-00 NUTNUT
-
263C3-28356-00-00 STAY 1STAY 1
-
2795822-08035-00 BOLT, FLANGEBOLT, FLANGE
-
283C3-2836A-00-00 BRACKET 1BRACKET 1
-
293C3-2836E-00-00 BRACKET 2BRACKET 2
-
3095802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
313C3-2835U-00-00 PANEL 1PANEL 1
-
323C3-2834E-00-00 DAMPER 3DAMPER 3
-
333C3-2835V-00-00 PANEL 2PANEL 2
-
343C3-2834F-00-00 DAMPERDAMPER
-
3590269-06008-00 RIVETRIVET
-
3690110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3790202-06170-00 WASHER, PLATEWASHER, PLATE
-
383C3-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
393C3-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
403C3-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4195702-06500-00 NUT, FLANGENUT, FLANGE
-
4290387-064T3-00 COLLARCOLLAR
-
434B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
