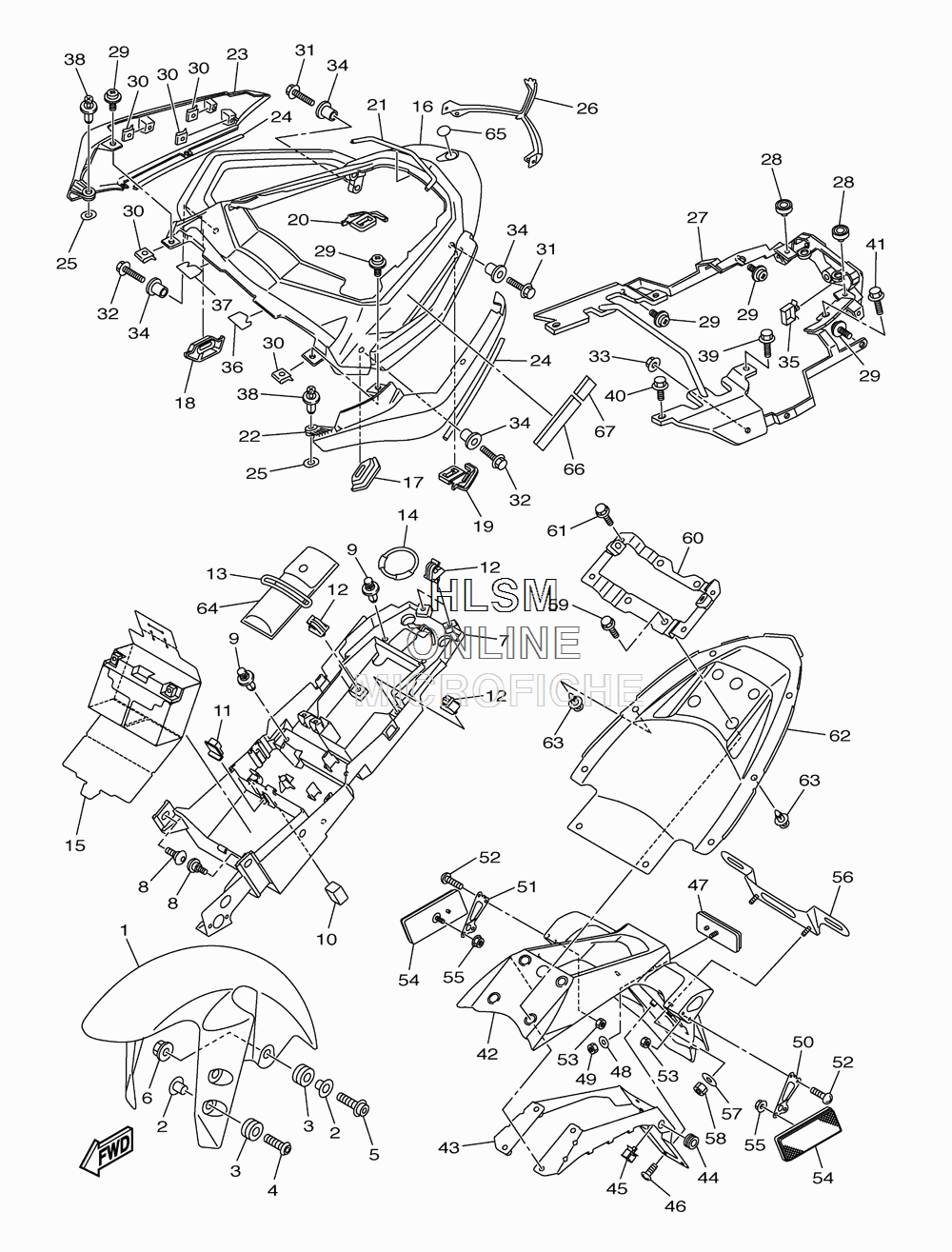

FENDER - FRONT / REAR для Yamaha FZ1 - 2012 года выпуска
-
№АртикулНазвание
-
15PW-21511-01-PB FENDER, FRONT (FOR BWC1)FENDER, FRONT (FOR BWC1)
-
290387-065J6-00 COLLARCOLLAR
-
390480-12072-00 GROMMETGROMMET
-
490149-06302-00 SCREWSCREW
-
590109-06031-00 BOLTBOLT
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
72D1-8212B-02-00 BOX, BATTERY 1BOX, BATTERY 1
-
890109-06253-00 BOLTBOLT
-
990269-07077-00 RIVETRIVET
-
102D1-216A2-00-00 SEAL, 2SEAL, 2
-
112D1-216A3-00-00 SEAL, 3SEAL, 3
-
1290464-07259-00 CLAMPCLAMP
-
134XV-21376-00-00 BAND, TOOLBAND, TOOL
-
142D1-21646-00-00 BANDBAND
-
152D1-82122-10-00 SEAT, BATTERYSEAT, BATTERY
-
163C3-24773-00-P8 HANDLE, SEAT (FOR MBL2)HANDLE, SEAT (FOR MBL2)
-
173C3-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
183C3-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
193C3-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
203C3-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
213C3-21541-00-00 DAMPER 1DAMPER 1
-
223C3-2471K-00-P7 COVER, TAIL 1 (FOR MBL2)COVER, TAIL 1 (FOR MBL2)
-
233C3-2472K-00-P7 COVER, TAIL 2 (FOR MBL2)COVER, TAIL 2 (FOR MBL2)
-
243C3-2193A-00-00 PROTECTORPROTECTOR
-
255PW-2174X-00-00 DAMPERDAMPER
-
263C3-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
273C3-21617-00-00 BRACKET, FENDERBRACKET, FENDER
-
2822W-24741-00-00 PAD, SEATPAD, SEAT
-
2990159-05056-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3090183-051A0-00 NUT, SPRINGNUT, SPRING
-
3195822-08025-00 BOLT, FLANGEBOLT, FLANGE
-
3295822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
3395702-08500-00 NUT, FLANGENUT, FLANGE
-
3490387-09012-00 COLLARCOLLAR
-
3590464-16021-00 CLAMPCLAMP
-
363C3-22825-00-00 PROTECTOR 1PROTECTOR 1
-
373C3-22826-00-00 PROTECTOR 2PROTECTOR 2
-
3890269-07076-00 RIVETRIVET
-
3995822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
4095827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4190105-08191-00 BOLT, FLANGEBOLT, FLANGE
-
422D1-21629-10-00 GUARD, MUDGUARD, MUD
-
432D1-21688-02-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
4490480-13004-00 GROMMETGROMMET
-
4590464-16021-00 CLAMPCLAMP
-
4697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
473Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4890201-05043-00 WASHER, PLATEWASHER, PLATE
-
4995602-05100-00 NUT, UNUT, U
-
505VY-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
515VY-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
5290150-04041-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
5395602-04100-00 NUT, UNUT, U
-
543Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5595702-05500-00 NUT, FLANGENUT, FLANGE
-
5639P-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5790201-06088-00 WASHER, PLATEWASHER, PLATE
-
5895602-06100-00 NUT, UNUT, U
-
5995812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
603C3-21261-00-00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
6195822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
623C3-21611-00-00 FENDER, REARFENDER, REAR
-
6390269-07077-00 RIVETRIVET
-
6439P-28100-01-00 TOOL KITTOOL KIT
-
654KN-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
663JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
673TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
