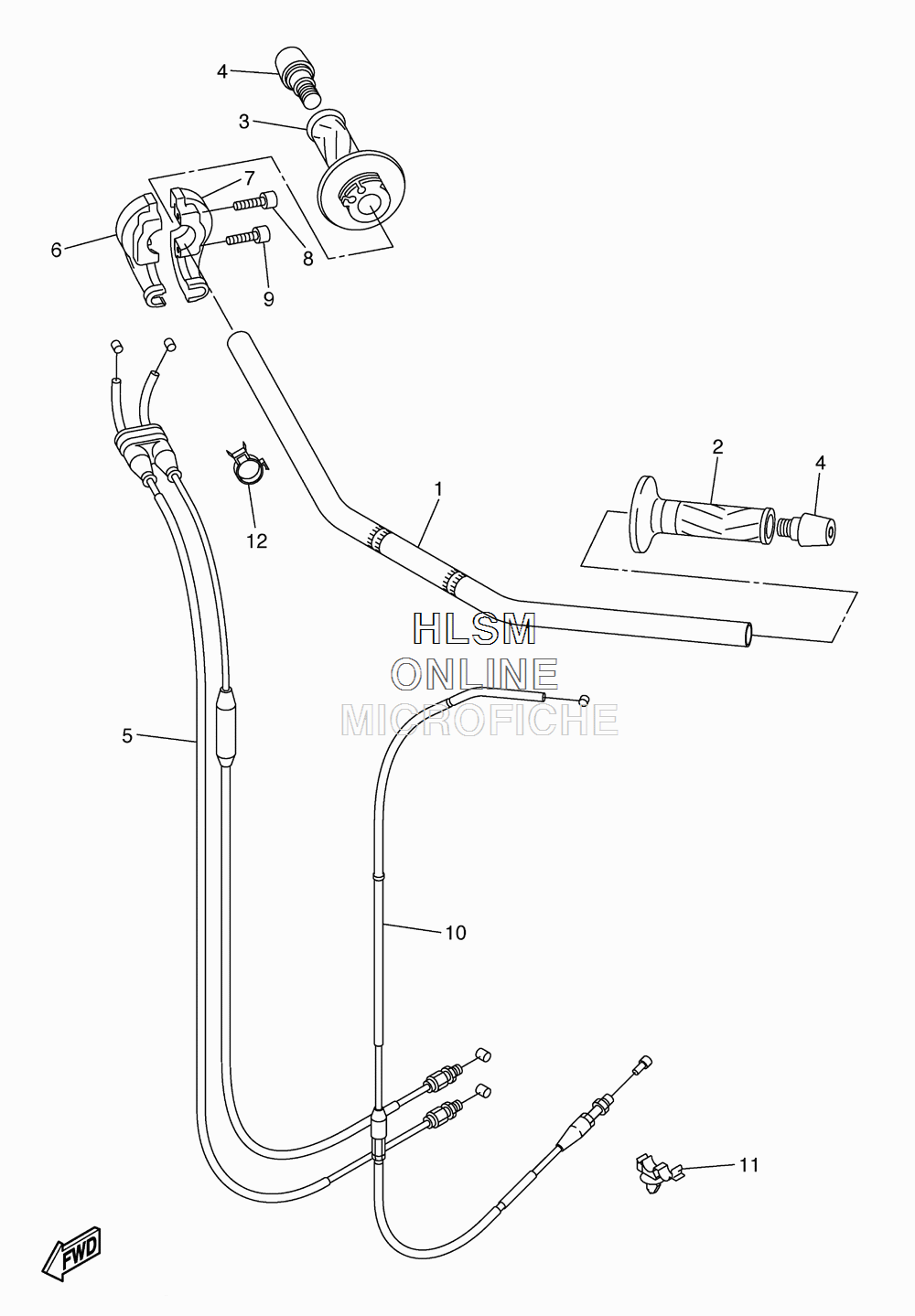

HANDLEBAR W/ CABLES для Yamaha FZ1 - 2012 года выпуска
-
№АртикулНазвание
-
12D1-26111-01-00 HANDLEBARHANDLEBAR
-
24YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
34YR-26240-02-00 GRIP ASSYGRIP ASSY
-
451J-26246-01-00 END, GRIPEND, GRIP
-
52D1-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
63LN-26281-01-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
74BP-26282-00-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
891317-05020-00 BOLTBOLT
-
991317-05025-00 BOLTBOLT
-
103C3-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1190464-10008-00 CLAMPCLAMP
-
1290464-20191-00 CLAMPCLAMP
Все узлы модели:
- AIR CLEANER W/ INTAKE
- AIR INDUCTION SYSTEM
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- COWLING
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK
- GENERATOR
- • HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL CLEANER
- OIL PUMP
- RADIATOR
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
