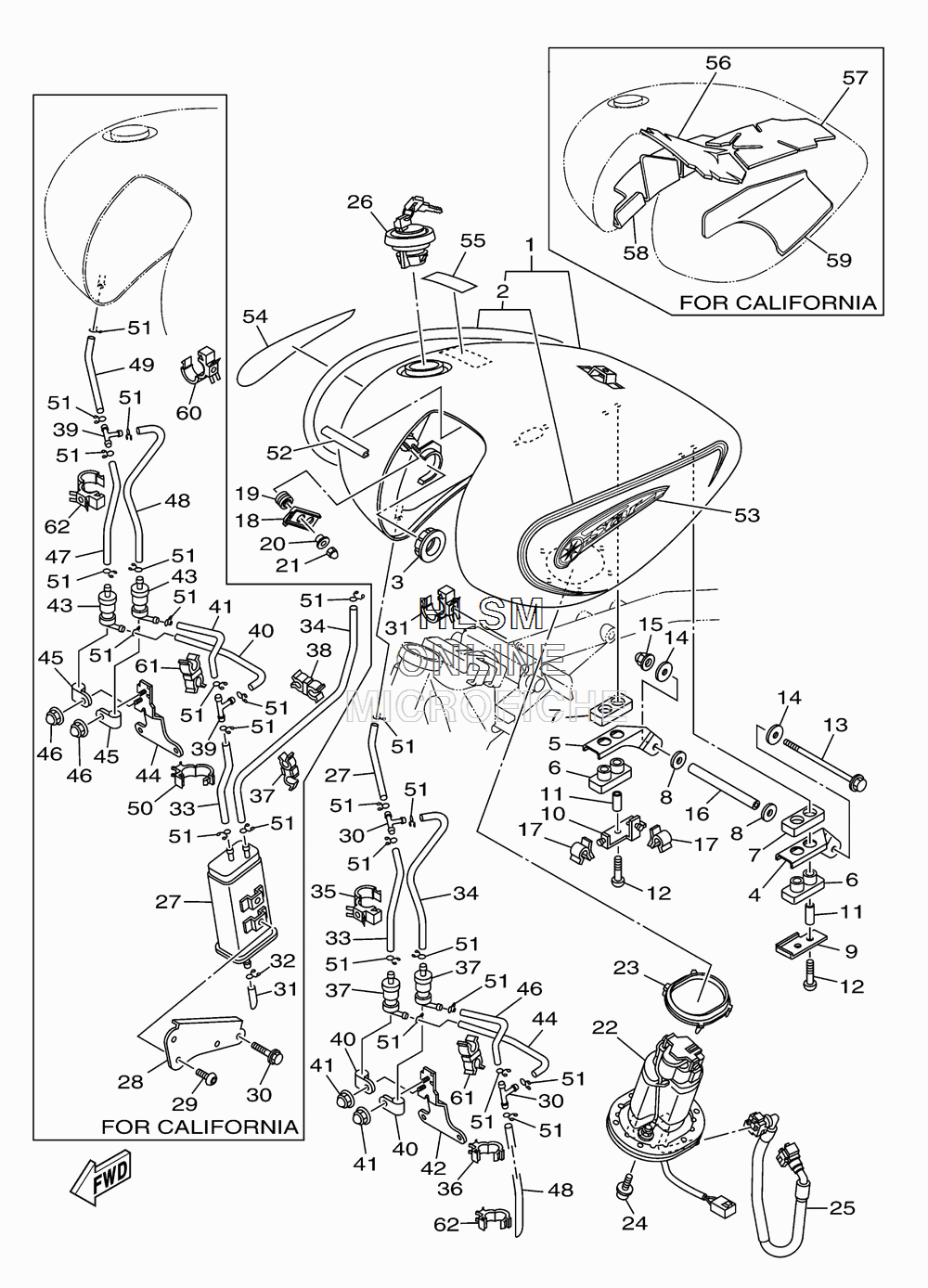

FUEL TANK для Yamaha ROAD STAR SILVERADO S - 2012 года выпуска
-
№АртикулНазвание
-
15VN-Y2410-00-X6 FUEL TANK COMP. (NEW PEARL WHITE)FUEL TANK COMP. (NEW PEARL WHITE)
-
25VR-24240-50-00 ...GRAPHIC SET...GRAPHIC SET
-
32YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
45MB-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
55MB-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
65MB-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
75MB-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
85MB-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
95MB-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
105VN-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1190387-06062-00 COLLARCOLLAR
-
1292017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1395827-06140-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-064R0-00 WASHER, PLATEWASHER, PLATE
-
1590176-06055-00 NUT, CROWNNUT, CROWN
-
1690387-06061-00 COLLARCOLLAR
-
1790464-08189-00 CLAMPCLAMP
-
184WM-24291-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
194WM-24339-00-00 GROMMETGROMMET
-
2090387-050T5-00 COLLARCOLLAR
-
2195302-05800-00 NUT, CROWNNUT, CROWN
-
225VN-13907-11-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
235VN-24486-00-00 O-RINGO-RING
-
2490110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
255VN-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
264NK-24602-20-00 CAP ASSYCAP ASSY
-
275PX-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
275VN-24321-30-00 PIPE 10 (EXCEPT CALIF)PIPE 10 (EXCEPT CALIF)
-
285VN-2742L-00-00 BRACKET 5 (CALIF ONLY)BRACKET 5 (CALIF ONLY)
-
2990111-06102-00 BOLT, HEX. SOCKET BUTTON (CALIF ONLY)BOLT, HEX. SOCKET BUTTON (CALIF ONLY)
-
3090413-07007-00 WAY 3 (EXCEPT CALIF)WAY 3 (EXCEPT CALIF)
-
3090105-06009-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
3190464-25217-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
313D8-24325-00-00 PIPE 14 (CALIF ONLY)PIPE 14 (CALIF ONLY)
-
3290467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
335VN-243A1-00-00 PIPE 15 (EXCEPT CALIF)PIPE 15 (EXCEPT CALIF)
-
335VN-24322-20-00 PIPE 11 (CALIF ONLY)PIPE 11 (CALIF ONLY)
-
345VN-243A2-00-00 PIPE 16 (EXCEPT CALIF)PIPE 16 (EXCEPT CALIF)
-
345VN-24318-10-00 PIPE, OVERFLOW (CALIF ONLY)PIPE, OVERFLOW (CALIF ONLY)
-
3590464-25217-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
3690464-10190-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
375RB-24180-00-00 ROLL OVER VALVE ASSY (EXCEPT CALIF)ROLL OVER VALVE ASSY (EXCEPT CALIF)
-
3790464-09022-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
3890464-09014-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
3990413-07007-00 WAY 3 (CALIF ONLY)WAY 3 (CALIF ONLY)
-
4090461-15139-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
405VN-243A3-00-00 PIPE 17 (CALIF ONLY)PIPE 17 (CALIF ONLY)
-
4190176-05054-00 NUT, CROWN (EXCEPT CALIF)NUT, CROWN (EXCEPT CALIF)
-
415VN-243A4-00-00 PIPE 18 (CALIF ONLY)PIPE 18 (CALIF ONLY)
-
425VN-24662-10-00 STAY (EXCEPT CALIF)STAY (EXCEPT CALIF)
-
435RB-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
445VN-243A3-00-00 PIPE 17 (EXCEPT CALIF)PIPE 17 (EXCEPT CALIF)
-
445VN-24662-10-00 STAY (CALIF ONLY)STAY (CALIF ONLY)
-
4590461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4690176-05054-00 NUT, CROWN (CALIF ONLY)NUT, CROWN (CALIF ONLY)
-
465VN-243A4-00-00 PIPE 18 (EXCEPT CALIF)PIPE 18 (EXCEPT CALIF)
-
475VN-243A1-00-00 PIPE 15 (CALIF ONLY)PIPE 15 (CALIF ONLY)
-
485VN-243A2-00-00 PIPE 16 (CALIF ONLY)PIPE 16 (CALIF ONLY)
-
485VN-24322-10-00 PIPE 11 (EXCEPT CALIF)PIPE 11 (EXCEPT CALIF)
-
495VN-24321-30-00 PIPE 10 (CALIF ONLY)PIPE 10 (CALIF ONLY)
-
5090464-20191-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5190467-09103-00 CLIPCLIP
-
524BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
5335S-2416B-00-00 EMBLEMEMBLEM
-
5435S-2417B-00-00 EMBLEMEMBLEM
-
555GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
565VN-24145-00-00 DAMPER, SIDE COVER (CALIF ONLY)DAMPER, SIDE COVER (CALIF ONLY)
-
575VN-2414H-00-00 DAMPER, PLATE 1 (CALIF ONLY)DAMPER, PLATE 1 (CALIF ONLY)
-
585VN-2414J-00-00 DAMPER, PLATE 2 (CALIF ONLY)DAMPER, PLATE 2 (CALIF ONLY)
-
595VN-2414K-00-00 DAMPER, PLATE 3 (CALIF ONLY)DAMPER, PLATE 3 (CALIF ONLY)
-
6090464-25217-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
6190464-10M59-00 CLAMPCLAMP
-
6290464-10190-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
6290464-25217-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
