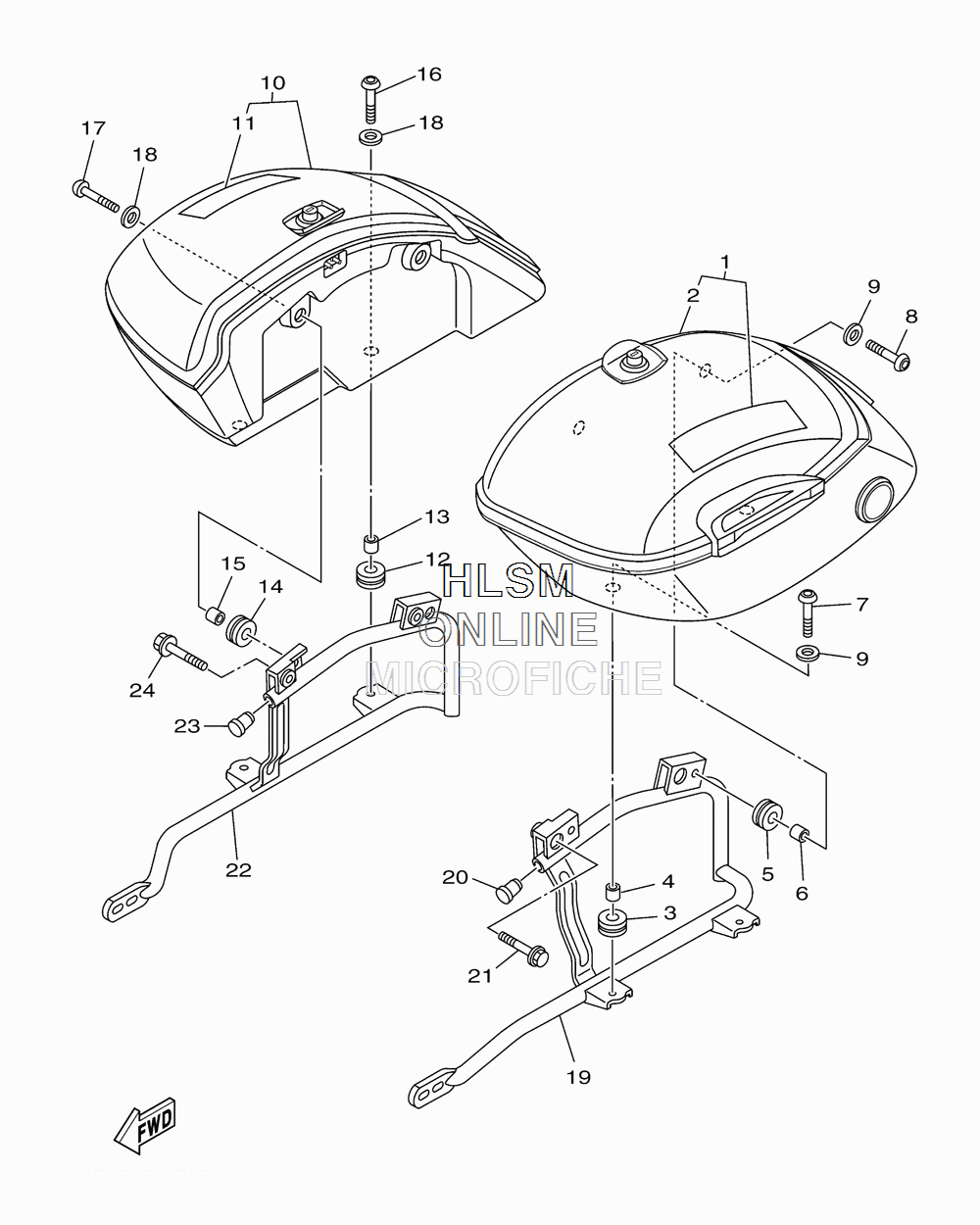

SADDLEBAG 1 для Yamaha ROAD STAR SILVERADO S - 2012 года выпуска`
-
№АртикулНазвание
-
12D9-F8430-00-00 SADDLEBAG COMP. 1SADDLEBAG COMP. 1
-
25GA-F8446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
390480-20132-00 GROMMETGROMMET
-
490387-061Y7-00 COLLARCOLLAR
-
590480-20338-00 GROMMETGROMMET
-
690387-06518-00 COLLARCOLLAR
-
792017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
892017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990201-06074-00 WASHER, PLATEWASHER, PLATE
-
102D9-F8440-00-00 SADDLEBAG COMP. 2SADDLEBAG COMP. 2
-
115GA-F8446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
1290480-20132-00 GROMMETGROMMET
-
1390387-061Y7-00 COLLARCOLLAR
-
1490480-20338-00 GROMMETGROMMET
-
1590387-06518-00 COLLARCOLLAR
-
1692017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1792017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1890201-06074-00 WASHER, PLATEWASHER, PLATE
-
195GA-28473-01-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
2090338-19212-00 PLUGPLUG
-
2195807-08050-00 BOLT, FLANGEBOLT, FLANGE
-
225GA-28474-01-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
2390338-19212-00 PLUGPLUG
-
2495807-08050-00 BOLT, FLANGEBOLT, FLANGE
