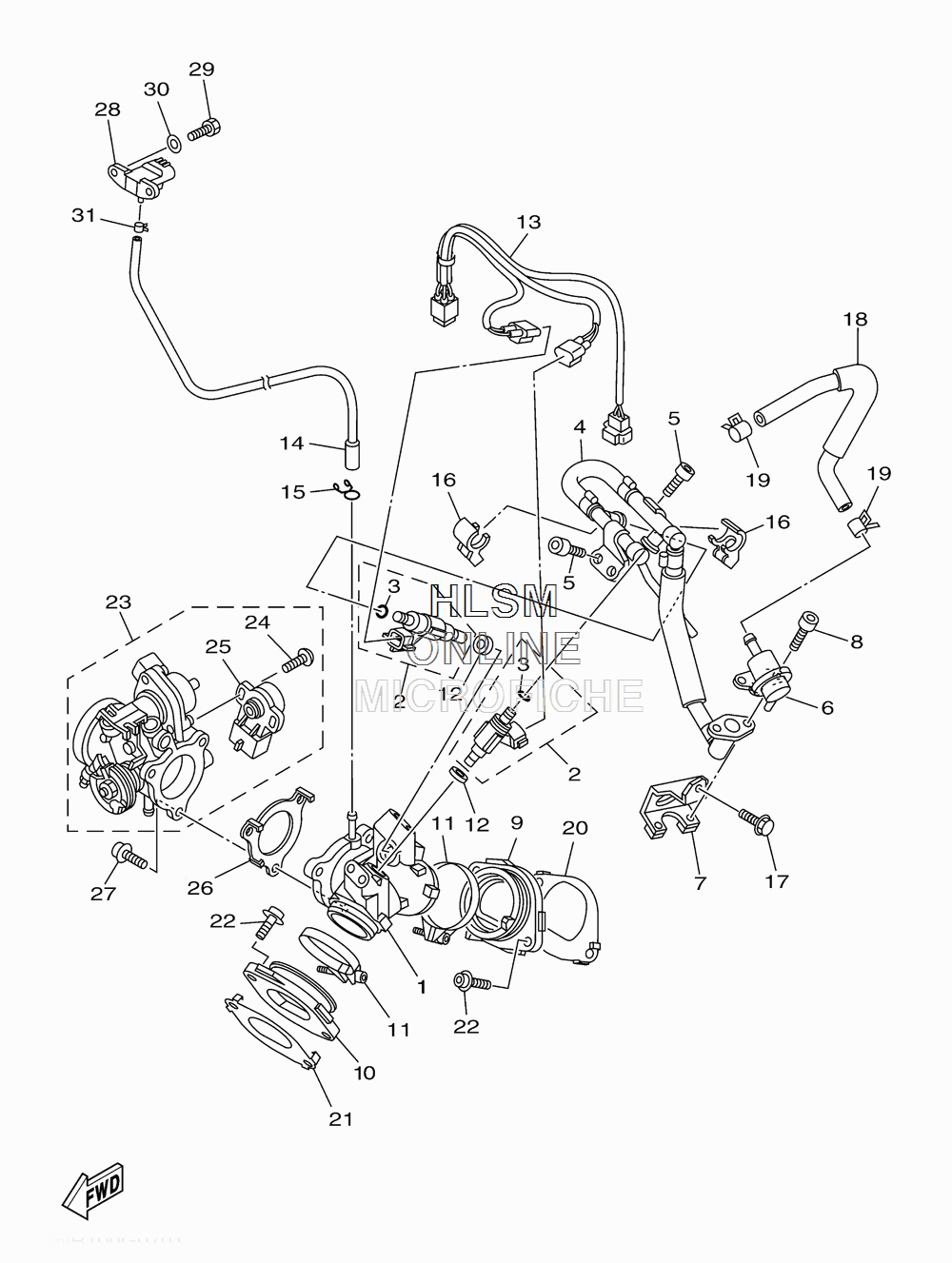

THROTTLE BODY ASSY. для Yamaha ROAD STAR SILVERADO S - 2012 года выпуска
-
№АртикулНазвание
-
15VN-13640-00-00 MANIFOLDMANIFOLD
-
25VN-13761-00-00 INJECTORINJECTOR
-
35FL-14147-00-00 ...O-RING...O-RING
-
45VN-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
591312-06014-00 BOLTBOLT
-
65UX-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
75VN-14291-00-00 BRACKET 1BRACKET 1
-
891317-05016-00 BOLTBOLT
-
95VN-13596-01-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
105VN-13597-01-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
1190450-59010-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
128FP-13556-00-00 RUBBER, INJECTORRUBBER, INJECTOR
-
135VN-81517-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
145VN-13895-00-00 HOSE, AIRHOSE, AIR
-
1590467-08075-00 CLIPCLIP
-
163D8-14261-00-00 HOLDERHOLDER
-
1795027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
185VN-13973-00-00 PIPE, FUEL 3PIPE, FUEL 3
-
1990467-13071-00 CLIPCLIP
-
205VN-14457-00-00 SEALSEAL
-
215VN-14462-00-00 SEALSEAL
-
2290110-06048-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235VN-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
235VN-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
248CC-14216-10-00 ...SCREW...SCREW
-
253B4-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
265VN-14467-00-00 SEALSEAL
-
2790110-06069-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
285PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2997007-05016-00 BOLTBOLT
-
3092907-05600-00 WASHER, PLATEWASHER, PLATE
-
3190467-07093-00 CLIPCLIP
