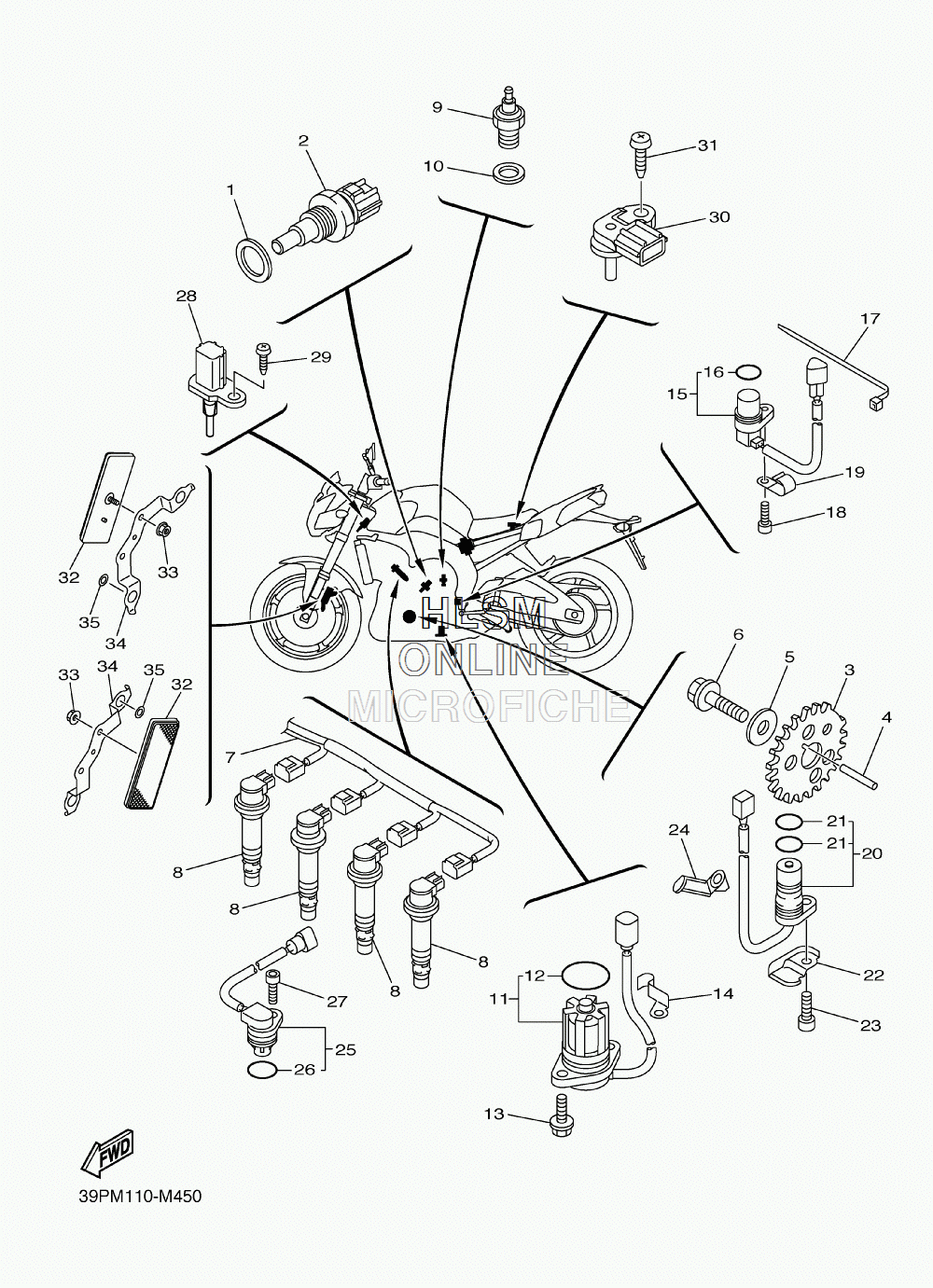

ELECTRICAL для Yamaha FZ 8 - 2013 года выпуска
-
№АртикулНазвание
-
190201-12790-00 WASHER, PLATEWASHER, PLATE
-
25YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
32D1-81673-00-00 ROTORROTOR
-
490282-03001-00 KEY, STRAIGHTKEY, STRAIGHT
-
590201-10039-00 WASHER, PLATEWASHER, PLATE
-
690105-10290-00 BOLT, FLANGEBOLT, FLANGE
-
739P-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
839P-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
93GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1090430-10148-00 GASKETGASKET
-
115VY-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
125VY-8A8E0-00-00 ...O-RING...O-RING
-
1395022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1490465-08053-00 CLAMPCLAMP
-
154XV-83755-03-00 SENSOR, SPEEDSENSOR, SPEED
-
164D9-81168-00-00 ...O-RING...O-RING
-
1790464-51001-00 CLAMPCLAMP
-
1890110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990462-08057-00 CLAMPCLAMP
-
2023P-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
215VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
2223P-15589-00-00 PLATEPLATE
-
2390110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490465-08054-00 CLAMPCLAMP
-
255VY-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
264D9-81168-00-00 ...O-RING...O-RING
-
2790110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
285YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2997702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
305S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
3197702-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
3211H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3395702-05500-00 NUT, FLANGENUT, FLANGE
-
3439P-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3590201-10057-00 WASHER, PLATEWASHER, PLATE
