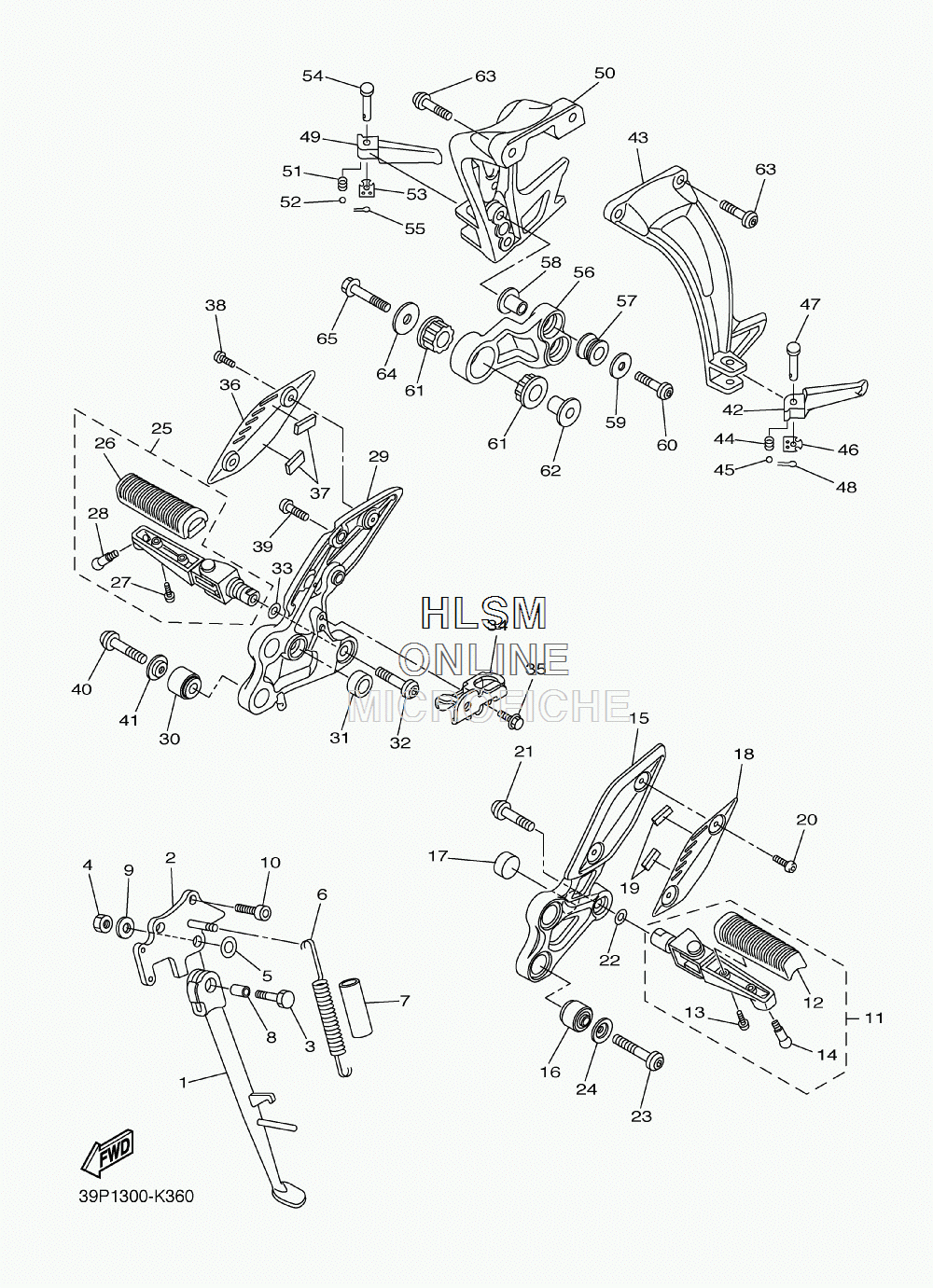

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha FZ 8 - 2013 года выпуска
-
№АртикулНазвание
-
139P-27311-00-00 STAND, SIDESTAND, SIDE
-
22D1-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
390101-10025-00 BOLTBOLT
-
490185-10023-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-16027-00 WASHER, PLATEWASHER, PLATE
-
690506-18020-00 SPRING, TENSIONSPRING, TENSION
-
790445-19002-00 HOSE (L60)HOSE (L60)
-
890387-10050-00 COLLARCOLLAR
-
990201-10035-00 WASHER, PLATEWASHER, PLATE
-
1090110-10028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1139P-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
124BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1390157-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1490109-08203-00 ...BOLT...BOLT
-
1539P-27442-00-00 BRACKET 2BRACKET 2
-
161NL-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
175VX-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1839P-27486-00-00 COVER 1COVER 1
-
191HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
2090111-05015-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190111-10039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290206-17084-00 WASHER, WAVEWASHER, WAVE
-
2390110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490209-08295-00 WASHERWASHER
-
2539P-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
264BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
2790157-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2890109-08203-00 ...BOLT...BOLT
-
2939P-27443-00-00 BRACKET 3BRACKET 3
-
301NL-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
315VX-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
3290111-10039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390206-17084-00 WASHER, WAVEWASHER, WAVE
-
3439P-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3595802-06008-00 BOLT, FLANGEBOLT, FLANGE
-
3639P-27487-00-00 COVER 2COVER 2
-
371HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
3890111-05015-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3992017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4090110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4190209-08295-00 WASHERWASHER
-
423VR-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
432D1-2741L-10-00 BRACKET 4BRACKET 4
-
4490501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4593501-04011-00 BALLBALL
-
465VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4791702-08040-00 PIN, CLEVISPIN, CLEVIS
-
4891401-25015-00 PIN, COTTERPIN, COTTER
-
493VR-27441-01-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
5039P-2742L-00-00 BRACKET 5BRACKET 5
-
5190501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5293501-04011-00 BALLBALL
-
535VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5491702-08040-00 PIN, CLEVISPIN, CLEVIS
-
5591401-25015-00 PIN, COTTERPIN, COTTER
-
5639P-21436-00-00 BRACKET, MUFFLER 2BRACKET, MUFFLER 2
-
575BE-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
5890387-08021-00 COLLARCOLLAR
-
5990201-08054-00 WASHER, PLATEWASHER, PLATE
-
6092012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6139P-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
6290387-10097-00 COLLARCOLLAR
-
6390109-085G6-00 BOLTBOLT
-
6490201-10073-00 WASHER, PLATEWASHER, PLATE
-
6590105-10158-00 BOLT, FLANGEBOLT, FLANGE
