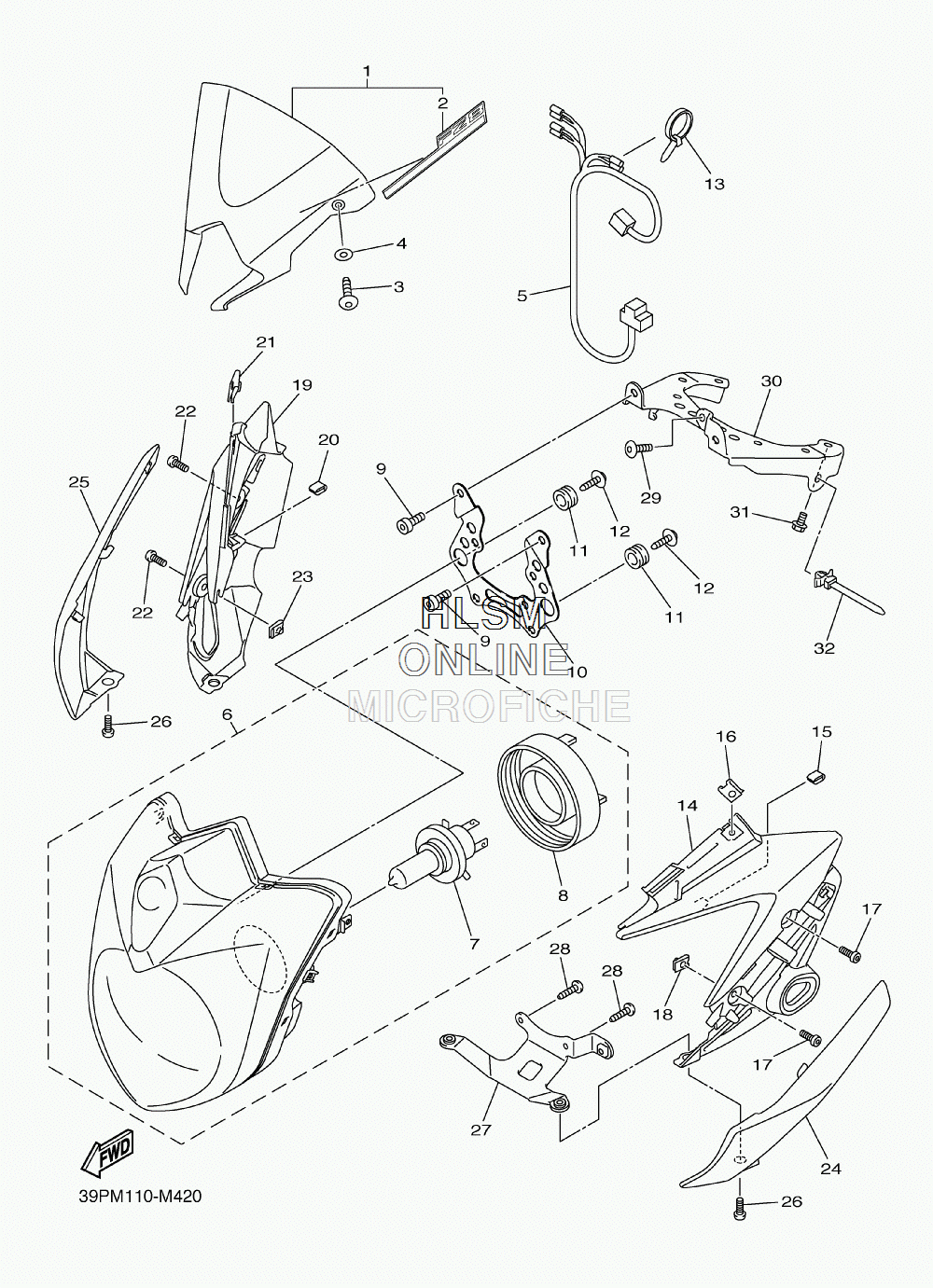

HEADLIGHT для Yamaha FZ 8 - 2013 года выпуска
-
№АртикулНазвание
-
139P-Y835A-00-P5 COVER, METER (MNM3 - GRAY METALLIC)COVER, METER (MNM3 - GRAY METALLIC)
-
239P-283G4-00-00 ...GRAPHIC, 1...GRAPHIC, 1
-
390167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
490202-05002-00 WASHER, PLATEWASHER, PLATE
-
539P-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
639P-84300-11-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
72F9-84314-00-00 ...BULB (12V-60/55W) (H4) (HALOGEN)...BULB (12V-60/55W) (H4) (HALOGEN)
-
85JW-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
991312-06010-00 BOLTBOLT
-
1020S-28396-00-00 PLATE 1PLATE 1
-
1190480-14004-00 GROMMETGROMMET
-
1290164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
1390465-10098-00 CLAMPCLAMP
-
1439P-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
1520S-28376-00-00 TRIMTRIM
-
1690183-05042-00 NUT, SPRINGNUT, SPRING
-
1790111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1890183-06069-00 NUT, SPRINGNUT, SPRING
-
1939P-23131-00-00 COVER, UPPER 2COVER, UPPER 2
-
2020S-28376-00-00 TRIMTRIM
-
2190183-05042-00 NUT, SPRINGNUT, SPRING
-
2290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390183-06069-00 NUT, SPRINGNUT, SPRING
-
2439P-23122-00-P3 COVER, OUTER 1 (MBL2 - GRAY METALLIC)COVER, OUTER 1 (MBL2 - GRAY METALLIC)
-
2539P-23132-00-P3 COVER, OUTER 2 (MBL2 - GRAY METALLIC)COVER, OUTER 2 (MBL2 - GRAY METALLIC)
-
2690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2739P-8431R-00-00 STAY, SETTINGSTAY, SETTING
-
2897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2992012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3039P-84119-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
3195802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3290464-12089-00 CLAMPCLAMP
