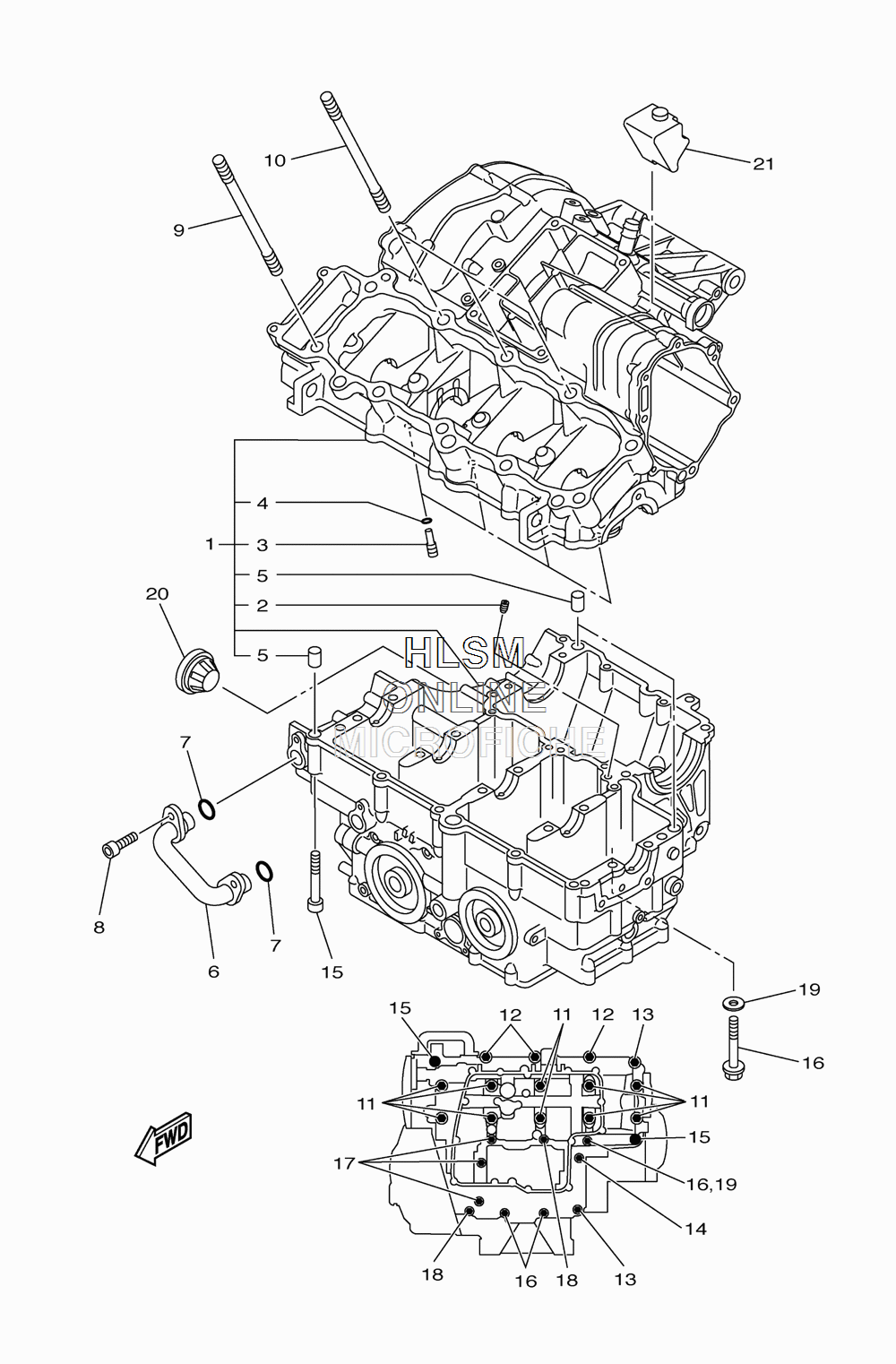

CRANKCASE для Yamaha FZ1 - 2013 года выпуска
-
№АртикулНазвание
-
14C8-15100-19-00 CRANKCASE ASSYCRANKCASE ASSY
-
24XV-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
35EB-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
493210-04092-00 ...O-RING...O-RING
-
599530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
65VY-13418-11-00 PIPE, OIL 2PIPE, OIL 2
-
793210-14003-00 O-RINGO-RING
-
890110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990116-10032-00 BOLT, STUDBOLT, STUD
-
1090116-10023-00 BOLT, STUDBOLT, STUD
-
1190119-09012-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1295812-08050-00 BOLT, FLANGEBOLT, FLANGE
-
1395812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-08101-00 BOLT, FLANGEBOLT, FLANGE
-
1590109-06100-00 BOLTBOLT
-
1695812-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1795812-06070-00 BOLT, FLANGEBOLT, FLANGE
-
1895812-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1990430-06166-00 GASKETGASKET
-
205PW-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
215VY-15316-00-00 DAMPER 1DAMPER 1
