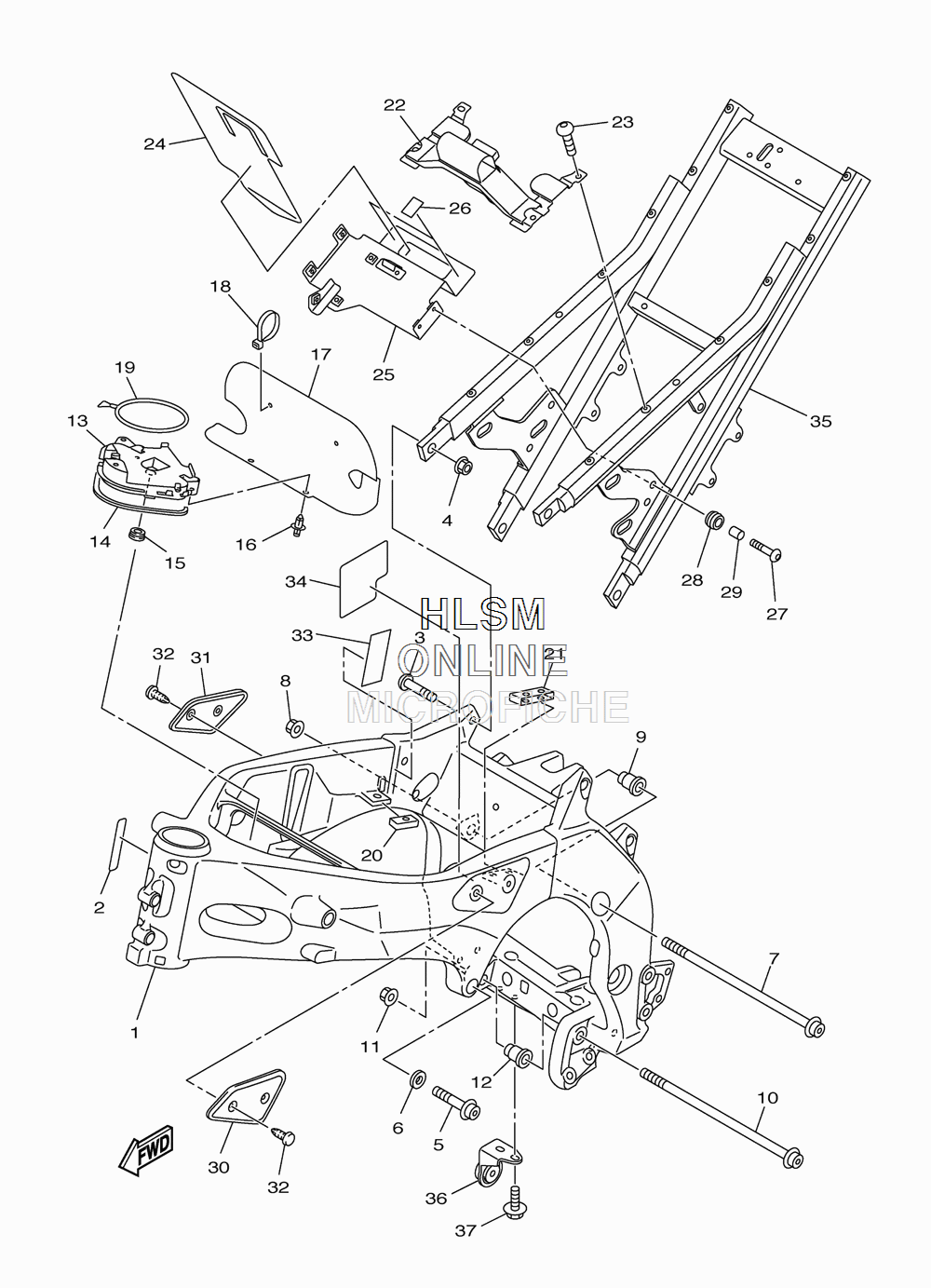

FRAME для Yamaha FZ1 - 2013 года выпуска
-
№АртикулНазвание
-
12D1-21110-03-P0 FRAME COMP. (MBL2 - MAT BLACK 2) (EXCEPT CALIF.)FRAME COMP. (MBL2 - MAT BLACK 2) (EXCEPT CALIF.)
-
12D1-21110-23-P0 FRAME COMP. (MBL2 - MAT BLACK 2) (CALIF. ONLY)FRAME COMP. (MBL2 - MAT BLACK 2) (CALIF. ONLY)
-
22D1-2197E-00-00 PROTECTOR, FRAME FRONTPROTECTOR, FRAME FRONT
-
390157-10001-00 SCREW, PAN HEADSCREW, PAN HEAD
-
495604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
595024-10040-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
690201-10020-00 WASHER, PLATEWASHER, PLATE
-
790110-10024-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890179-10025-00 NUTNUT
-
94C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1090110-10024-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190179-10025-00 NUTNUT
-
124C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
132D1-2117N-00-00 COVER 3COVER 3
-
142D1-2174Y-00-00 DAMPERDAMPER
-
1590480-01333-00 GROMMETGROMMET
-
1690269-06001-00 RIVETRIVET
-
172D1-2117G-00-00 PROTECTORPROTECTOR
-
181UA-82591-00-00 BANDBAND
-
193YX-21376-00-00 BAND, TOOLBAND, TOOL
-
202D1-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
212D1-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
222D1-21345-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
2390149-06162-00 SCREWSCREW
-
242D1-24183-01-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
252D1-21287-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
265YU-21639-00-00 DAMPER 2DAMPER 2
-
2790111-06098-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890480-14013-00 GROMMETGROMMET
-
2990387-06026-00 COLLARCOLLAR
-
302D1-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
312D1-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
3290269-06003-00 RIVETRIVET
-
334PX-23426-00-00 DAMPERDAMPER
-
3439P-21575-00-00 SEAL 1SEAL 1
-
352D1-21190-01-P0 REAR FRAME COMP. (MBL2 - MAT BLACK 2)REAR FRAME COMP. (MBL2 - MAT BLACK 2)
-
362D1-27425-02-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
3795812-08016-00 BOLT, FLANGEBOLT, FLANGE
