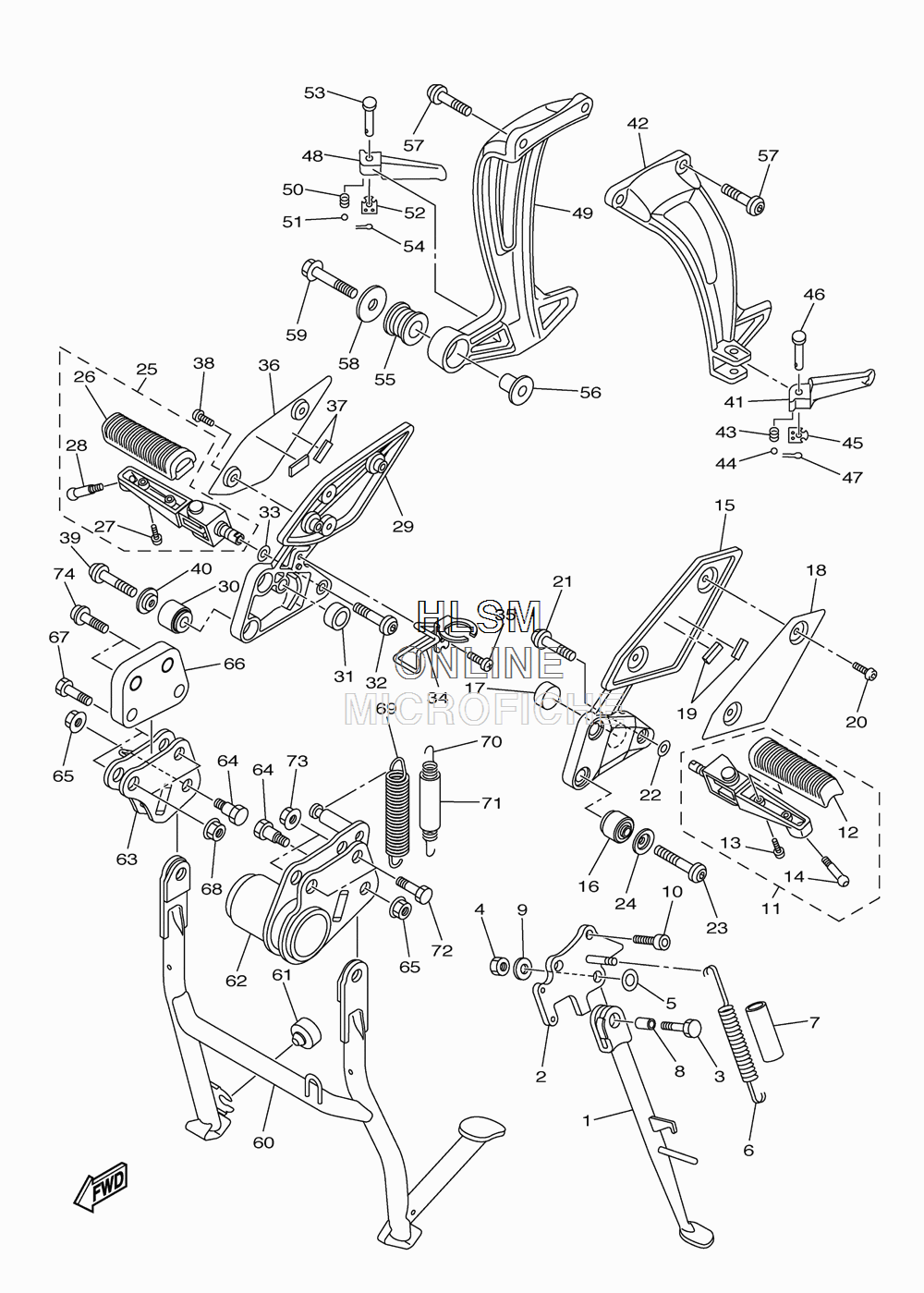

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha FZ1 - 2013 года выпуска
-
№АртикулНазвание
-
139P-27311-00-00 STAND, SIDESTAND, SIDE
-
22D1-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
390101-10025-00 BOLTBOLT
-
490185-10023-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-16027-00 WASHER, PLATEWASHER, PLATE
-
690506-18020-00 SPRING, TENSIONSPRING, TENSION
-
790445-19002-00 HOSE (L60)HOSE (L60)
-
890387-10050-00 COLLARCOLLAR
-
990201-10035-00 WASHER, PLATEWASHER, PLATE
-
1090110-10028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
112D1-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
124BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1390157-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1490109-08174-00 ...BOLT...BOLT
-
152D1-27442-11-00 BRACKET 2BRACKET 2
-
161NL-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
175VX-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
182D1-27486-00-00 COVER 1COVER 1
-
191HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
2090111-05015-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190111-10039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290206-17084-00 WASHER, WAVEWASHER, WAVE
-
2390110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490209-08295-00 WASHERWASHER
-
252D1-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
264BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
2790157-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2890109-08174-00 ...BOLT...BOLT
-
292D1-27443-11-00 BRACKET 3BRACKET 3
-
301NL-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
315VX-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
3290111-10039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390206-17084-00 WASHER, WAVEWASHER, WAVE
-
342D1-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3595802-06008-00 BOLT, FLANGEBOLT, FLANGE
-
362D1-27487-00-00 COVER 2COVER 2
-
371HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
3890111-05015-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3990110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090209-08295-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
413VR-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
422D1-2741L-10-00 BRACKET 4BRACKET 4
-
4390501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4493501-04011-00 BALL 1/4BALL 1/4
-
455VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4691702-08040-00 PIN, CLEVISPIN, CLEVIS
-
4791401-25015-00 PIN, COTTERPIN, COTTER
-
483VR-27441-01-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
492D1-2742L-10-00 BRACKET 5BRACKET 5
-
5090501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5193501-04011-00 BALL 1/4BALL 1/4
-
525VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5391702-08040-00 PIN, CLEVISPIN, CLEVIS
-
5491401-25015-00 PIN, COTTERPIN, COTTER
-
5536Y-27424-01-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
5690387-10636-00 COLLARCOLLAR
-
5790109-085G6-00 BOLTBOLT
-
5890201-10669-00 WASHER, PLATEWASHER, PLATE
-
5995814-10040-00 BOLT, FLANGEBOLT, FLANGE
-
603C3-27111-00-00 STAND, MAINSTAND, MAIN
-
61371-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
623C3-27151-01-00 BRACKET, MAIN STANDBRACKET, MAIN STAND
-
635D0-27152-00-00 BRACKET, MAIN STAND 2BRACKET, MAIN STAND 2
-
6490109-10029-00 BOLTBOLT
-
6595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
663C3-274A3-00-00 BRACKET, ADAPTER 1BRACKET, ADAPTER 1
-
6790101-10033-00 BOLTBOLT
-
6895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
6990506-40007-00 SPRING, TENSIONSPRING, TENSION
-
7090506-23010-00 SPRING, TENSIONSPRING, TENSION
-
7190445-19003-00 HOSEHOSE
-
7290101-10033-00 BOLTBOLT
-
7395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
7490110-10025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
