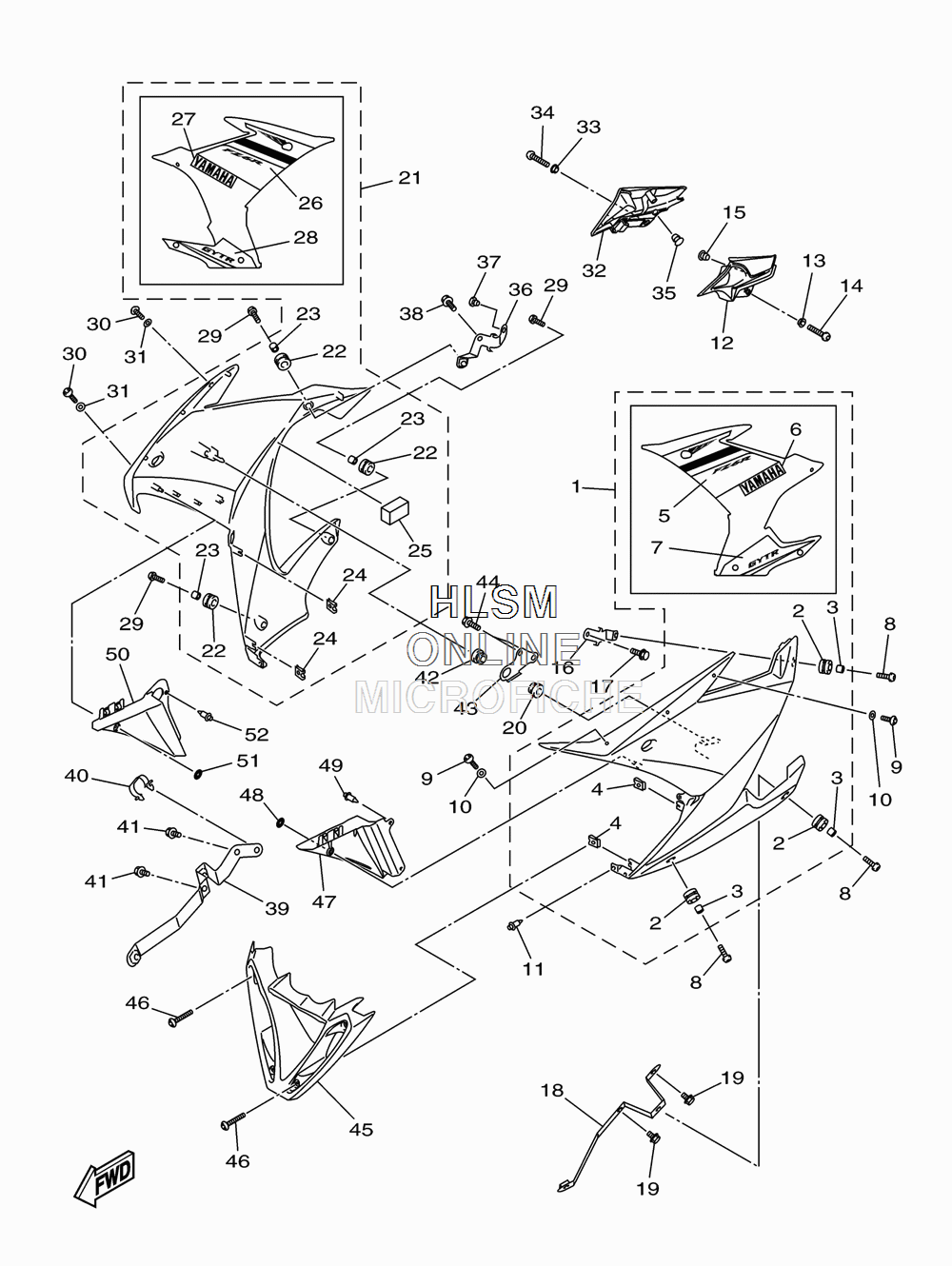

COWLING 2 для Yamaha FZ6R - 2013 года выпуска
-
№АртикулНазвание
-
136P-W283U-50-P1 PANEL ASSY 1 (SMX - BLACK METALLIC X)PANEL ASSY 1 (SMX - BLACK METALLIC X)
-
290480-14003-00 ...GROMMET...GROMMET
-
390387-06260-00 ...COLLAR...COLLAR
-
490183-05076-00 ...NUT, SPRING...NUT, SPRING
-
536P-28391-40-00 ...GRAPHIC 1...GRAPHIC 1
-
61KB-2153B-10-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
736P-2832B-20-00 ...GRAPHIC, 15...GRAPHIC, 15
-
890149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
990111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090202-05180-00 WASHER, PLATEWASHER, PLATE
-
1190269-06008-00 RIVETRIVET
-
1236P-2171N-00-00 MOLE, SIDE COVER 3MOLE, SIDE COVER 3
-
1390387-06130-00 COLLARCOLLAR
-
1490149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1590338-07043-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1636P-2833A-00-00 BRACKET 7BRACKET 7
-
1795802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1836P-2836A-01-00 BRACKET 1BRACKET 1
-
1990109-060E9-00 BOLTBOLT
-
2090480-01558-00 GROMMETGROMMET
-
2136P-W283V-50-P1 PANEL ASSY 2 (SMX - BLACK METALLIC X)PANEL ASSY 2 (SMX - BLACK METALLIC X)
-
2290480-14003-00 ...GROMMET...GROMMET
-
2390387-06260-00 ...COLLAR...COLLAR
-
2490183-05076-00 ...NUT, SPRING...NUT, SPRING
-
252C0-2162G-00-00 ...PLATE 1...PLATE 1
-
2636P-28392-40-00 ...GRAPHIC 2...GRAPHIC 2
-
271KB-2153B-10-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
2836P-2832C-20-00 ...GRAPHIC, 16...GRAPHIC, 16
-
2990149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
3090111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05180-00 WASHER, PLATEWASHER, PLATE
-
3236P-2171R-00-00 MOLE, SIDE COVER 4MOLE, SIDE COVER 4
-
3390387-06130-00 COLLARCOLLAR
-
3490149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
3590338-07043-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
3636P-2833E-00-00 BRACKET 8BRACKET 8
-
3790338-07157-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
3895802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3936P-2836E-01-00 BRACKET 2BRACKET 2
-
4090464-24230-00 CLAMPCLAMP
-
4190109-060E9-00 BOLTBOLT
-
4290480-01558-00 GROMMETGROMMET
-
4320S-21843-00-00 STAY, 4STAY, 4
-
4495822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4536P-22863-00-00 COVER, UNDERCOVER, UNDER
-
4690111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4736P-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
4890183-05M02-00 NUT, SPRINGNUT, SPRING
-
4990269-06008-00 RIVETRIVET
-
5036P-2836R-00-00 PANEL, INNER 5PANEL, INNER 5
-
5190183-05M02-00 NUT, SPRINGNUT, SPRING
-
5290269-06008-00 RIVETRIVET
