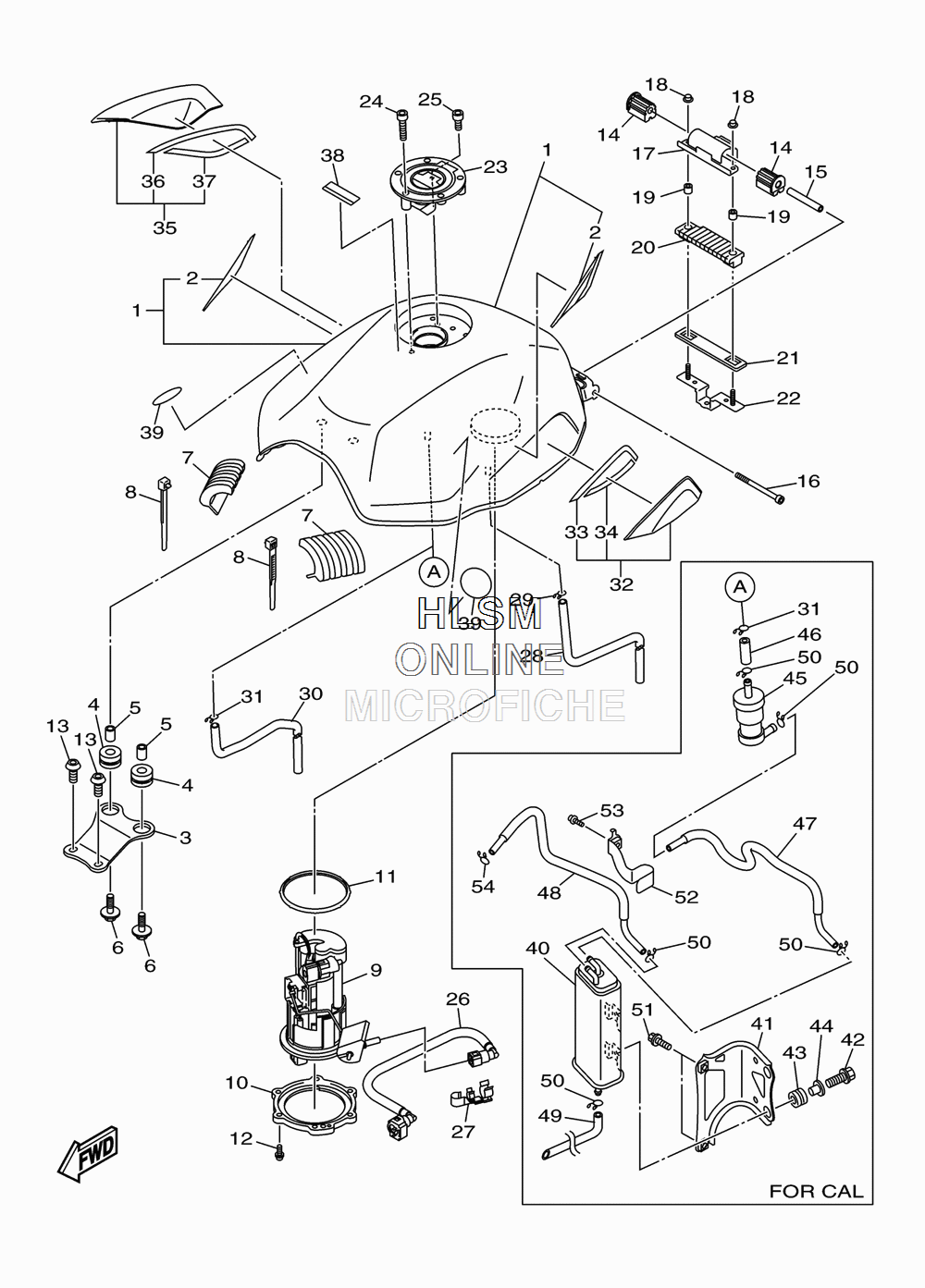

FUEL TANK для Yamaha FZ6R - 2013 года выпуска
-
№АртикулНазвание
-
120S-Y2410-00-08 FUEL TANK COMP. (DPBMC - DEEP PURPLISH BLUE)FUEL TANK COMP. (DPBMC - DEEP PURPLISH BLUE)
-
236P-24240-10-00 ...GRAPHIC SET...GRAPHIC SET
-
320S-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
490480-16010-00 GROMMETGROMMET
-
590387-06068-00 COLLARCOLLAR
-
690119-06264-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
720S-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
890465-15011-00 CLAMPCLAMP
-
920S-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
1013S-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1119B-24486-01-00 O-RINGO-RING
-
1290110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
145VX-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1590387-061W6-00 COLLARCOLLAR
-
1691312-06090-00 BOLTBOLT
-
1720S-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
1895702-06500-00 NUT, FLANGENUT, FLANGE
-
1990387-06299-00 COLLARCOLLAR
-
2020S-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2120S-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2220S-21296-00-00 NUTNUT
-
2339P-24602-10-00 CAP ASSYCAP ASSY
-
2490110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2591317-05010-00 BOLTBOLT
-
265VX-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2790464-16005-00 CLAMPCLAMP
-
2890445-106J2-00 HOSE (L650)HOSE (L650)
-
2990467-090A2-00 CLIPCLIP
-
3090445-106J2-00 HOSE (L650)HOSE (L650)
-
3190467-100A1-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
3190467-090A2-00 CLIP (EXCEPT CALIF.)CLIP (EXCEPT CALIF.)
-
3220S-24106-01-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
3320S-2173T-10-00 ...TAPE 1...TAPE 1
-
3420S-2173T-20-00 ...TAPE 1...TAPE 1
-
3520S-24108-01-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
3620S-2173U-10-00 ...TAPE 2...TAPE 2
-
3720S-2173U-20-00 ...TAPE 2...TAPE 2
-
385GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
395JW-2413B-00-00 EMBLEMEMBLEM
-
405C7-24170-00-00 CANISTER ASSY (CALIF. ONLY)CANISTER ASSY (CALIF. ONLY)
-
4136P-2419F-00-00 BRACKET, CANISTOR (CALIF. ONLY)BRACKET, CANISTOR (CALIF. ONLY)
-
4295802-06016-00 BOLT, FLANGE (CALIF. ONLY)BOLT, FLANGE (CALIF. ONLY)
-
4390480-13163-00 GROMMET (CALIF. ONLY)GROMMET (CALIF. ONLY)
-
4490387-062L2-00 COLLAR (CALIF. ONLY)COLLAR (CALIF. ONLY)
-
455RB-24180-00-00 ROLL OVER VALVE ASSY (CALIF. ONLY)ROLL OVER VALVE ASSY (CALIF. ONLY)
-
4690445-11065-00 HOSE (L30) (CALIF. ONLY)HOSE (L30) (CALIF. ONLY)
-
4736P-24314-00-00 PIPE 4 (CALIF. ONLY)PIPE 4 (CALIF. ONLY)
-
4836P-14466-00-00 PIPE (CALIF. ONLY)PIPE (CALIF. ONLY)
-
4936P-24315-00-00 PIPE 5 (CALIF. ONLY)PIPE 5 (CALIF. ONLY)
-
5090467-100A1-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
5195802-08016-00 BOLT, FLANGE (CALIF. ONLY)BOLT, FLANGE (CALIF. ONLY)
-
5236P-24667-00-00 GUIDE, PIPE (CALIF. ONLY)GUIDE, PIPE (CALIF. ONLY)
-
5395802-06010-00 BOLT, FLANGE (CALIF. ONLY)BOLT, FLANGE (CALIF. ONLY)
-
5490467-100A1-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
