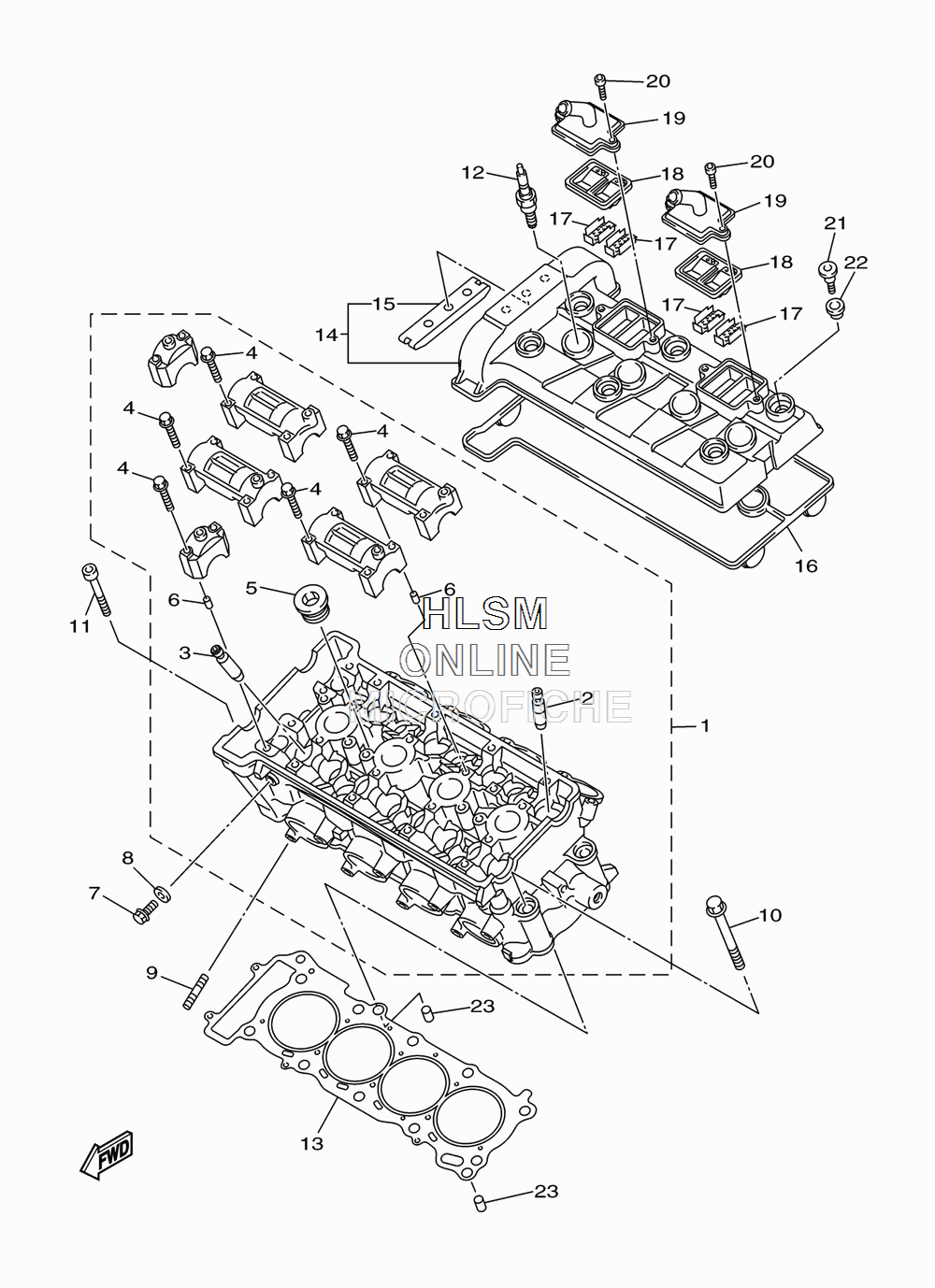

CYLINDER HEAD для Yamaha FZ6R - 2013 года выпуска
-
№АртикулНазвание
-
120S-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25EB-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
320S-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
490105-06027-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
590340-20090-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
795022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-08119-00 GASKETGASKET
-
995612-08625-00 BOLT, STUDBOLT, STUD
-
1090119-10003-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1191312-06060-00 BOLTBOLT
-
1294701-00318-00 PLUG, SPARK (NGK R CR9E)PLUG, SPARK (NGK R CR9E)
-
1320S-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
141B3-11191-10-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
155BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
1620S-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
175SL-1482K-00-00 PLATEPLATE
-
185SL-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
195SL-14899-00-00 CAP, CASECAP, CASE
-
2091312-06020-00 BOLTBOLT
-
2190109-066F0-00 BOLTBOLT
-
225VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2399530-10114-00 PIN, DOWELPIN, DOWEL
