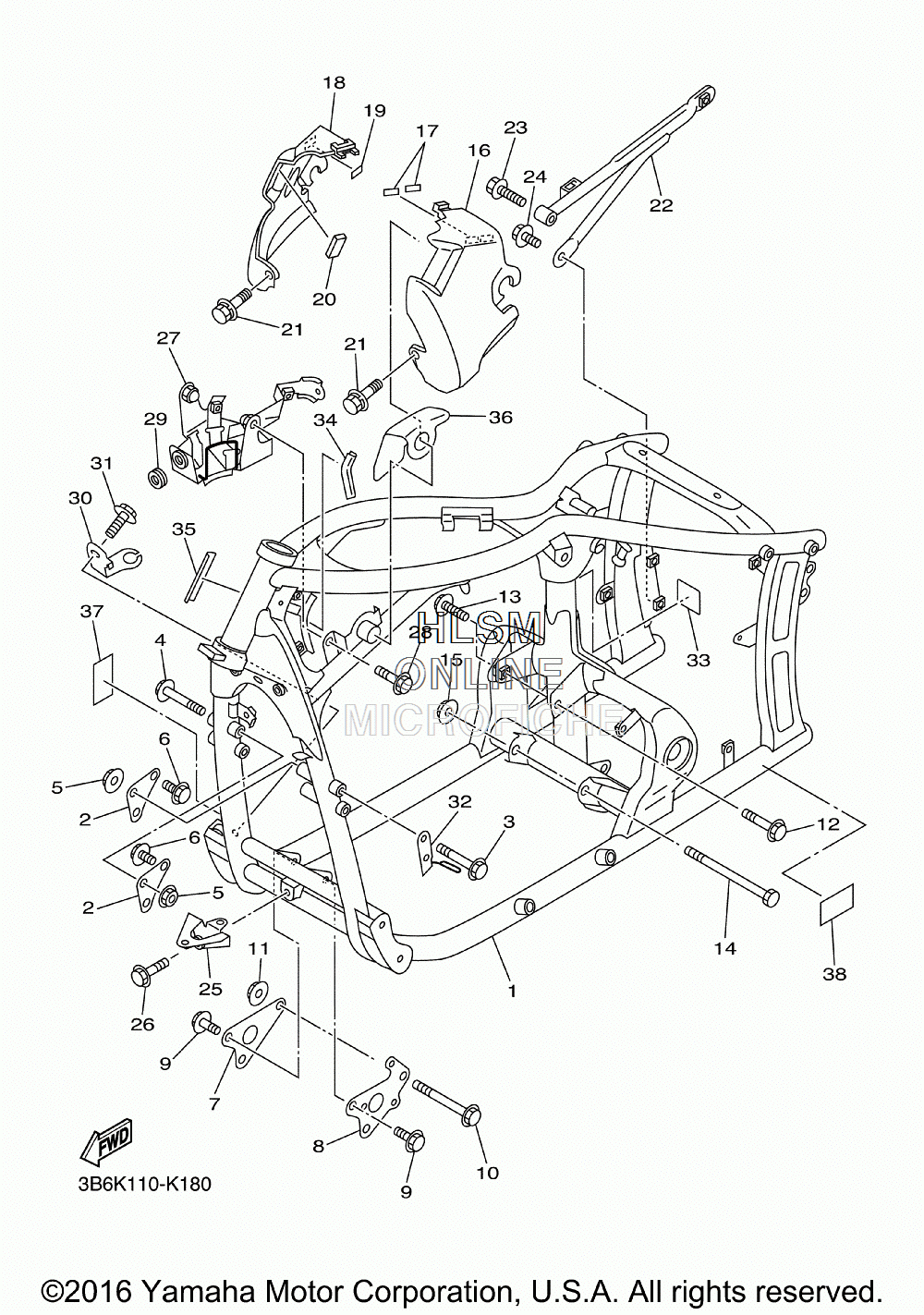

FRAME для Yamaha V STAR 650 CUSTOM [ XVS65DB/C] (3B6U/3B6S) - 2013 года выпуска
-
№АртикулНазвание
-
14VR-21110-41-00 FRAME COMP.FRAME COMP.
-
24VR-21315-00-00 STAY, ENGINE 1STAY, ENGINE 1
-
390105-082A4-00 BOLT, FLANGEBOLT, FLANGE
-
490105-084A1-00 BOLT, FLANGEBOLT, FLANGE
-
590179-08684-00 NUTNUT
-
695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
74VR-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
85BN-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
990105-08307-00 BOLT, FLANGEBOLT, FLANGE
-
1095814-10100-00 BOLT, FLANGEBOLT, FLANGE
-
1190179-10658-00 NUTNUT
-
1290105-10253-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
1490101-12694-00 BOLTBOLT
-
1590179-12004-00 NUTNUT
-
164TR-2171E-01-00 COVER, SIDE 5COVER, SIDE 5
-
173BN-21747-00-00 DAMPERDAMPER
-
184TR-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
193BN-21747-00-00 DAMPERDAMPER
-
204SV-28372-00-00 DAMPERDAMPER
-
2190119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
224TR-21460-20-00 STAY, MUFFLERSTAY, MUFFLER
-
2395817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
2495817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
254VR-28356-01-00 STAY 1STAY 1
-
2690105-062A2-00 BOLT, FLANGEBOLT, FLANGE
-
274TR-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2895807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2990480-12320-00 GROMMETGROMMET
-
305KP-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3195807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
324VR-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
333FY-21575-01-00 SEAL 1SEAL 1
-
3435C-2214F-00-00 DAMPER 1DAMPER 1
-
353HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
365KP-21266-00-00 SHEET 1SHEET 1
-
3710D-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
383B6-21668-00-00 LABEL, TIRELABEL, TIRE
