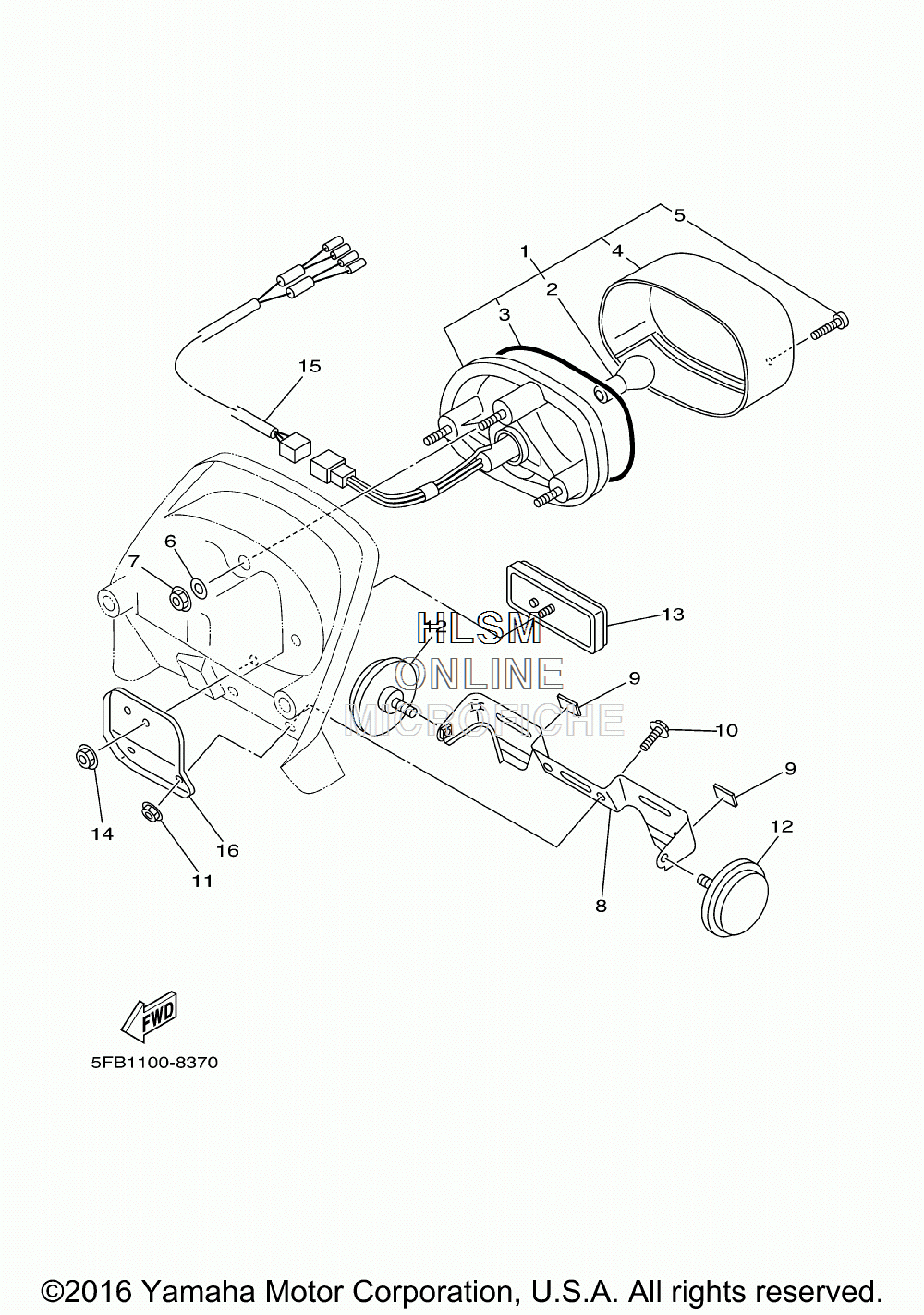

TAILLIGHT для Yamaha V STAR 650 CUSTOM [ XVS65DB/C] (3B6U/3B6S) - 2013 года выпуска
-
№АртикулНазвание
-
14TV-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-60-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
34TR-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
44TR-84733-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
597706-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
690201-06380-00 WASHER PLAINWASHER PLAIN
-
795607-06100-00 NUT, UNUT, U
-
85FB-84751-00-00 BRACKET, LICENCEBRACKET, LICENCE
-
951Y-21639-00-00 DAMPER 2DAMPER 2
-
1095027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1195607-06100-00 NUT, UNUT, U
-
12449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
133Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1495707-05500-00 NUT, FLANGENUT, FLANGE
-
155KP-84717-10-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
165FB-21617-00-00 BRACKET, FENDERBRACKET, FENDER
