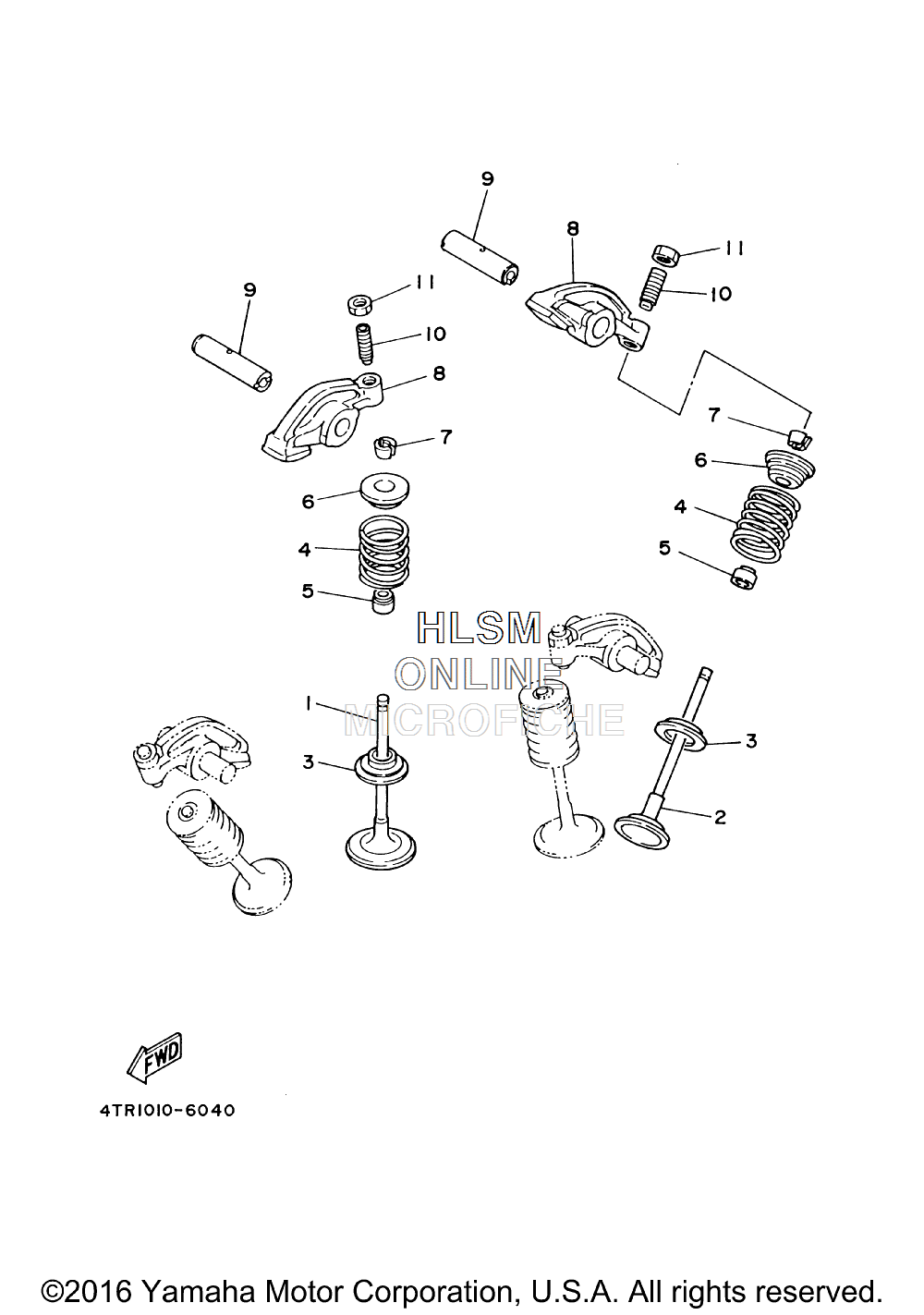

VALVE для Yamaha V STAR 650 CUSTOM [ XVS65DB/C] (3B6U/3B6S) - 2013 года выпуска
-
№АртикулНазвание
-
14VR-12111-01-00 VALVE, INTAKEVALVE, INTAKE
-
24VR-12121-01-00 VALVE, EXHAUSTVALVE, EXHAUST
-
33Y1-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
43Y1-12114-01-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
51J7-12119-01-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
63Y1-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
71J7-12118-00-00 COTTER, VALVECOTTER, VALVE
-
822U-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
922U-12156-02-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
1022U-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1190170-06128-00 NUTNUT
