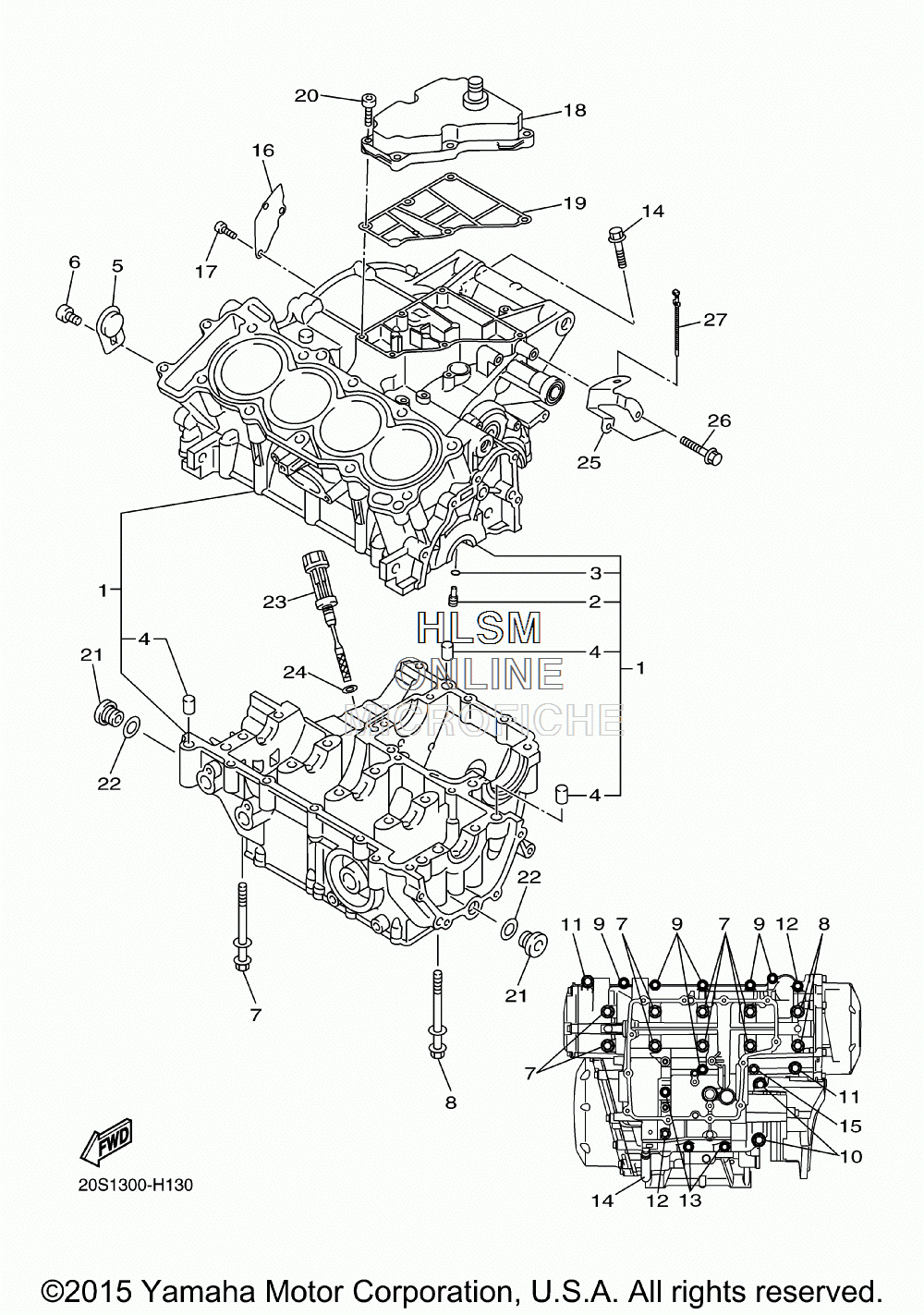

CRANKCASE для Yamaha FZ6R [FZ6RER] - 2014 года выпуска
-
№АртикулНазвание
-
120S-15100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
25EB-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
393210-04092-00 ...O-RING...O-RING
-
499530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
55SL-15189-00-00 PLUGPLUG
-
690149-06082-00 SCREWSCREW
-
790119-08083-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890119-08084-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
995812-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1095812-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1190109-06168-00 BOLTBOLT
-
1295812-06065-00 BOLT, FLANGEBOLT, FLANGE
-
1395812-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1495812-06100-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-06145-00 BOLT, FLANGEBOLT, FLANGE
-
1620S-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
1790149-06082-00 SCREWSCREW
-
1820S-15413-00-00 COVERCOVER
-
1920S-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2091312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2136Y-15189-00-00 PLUGPLUG
-
2293210-16325-00 O-RINGO-RING
-
235EB-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2493210-09165-00 O-RINGO-RING
-
2520S-15544-00-00 STAY 1STAY 1
-
2695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2790464-34002-00 CLAMPCLAMP
