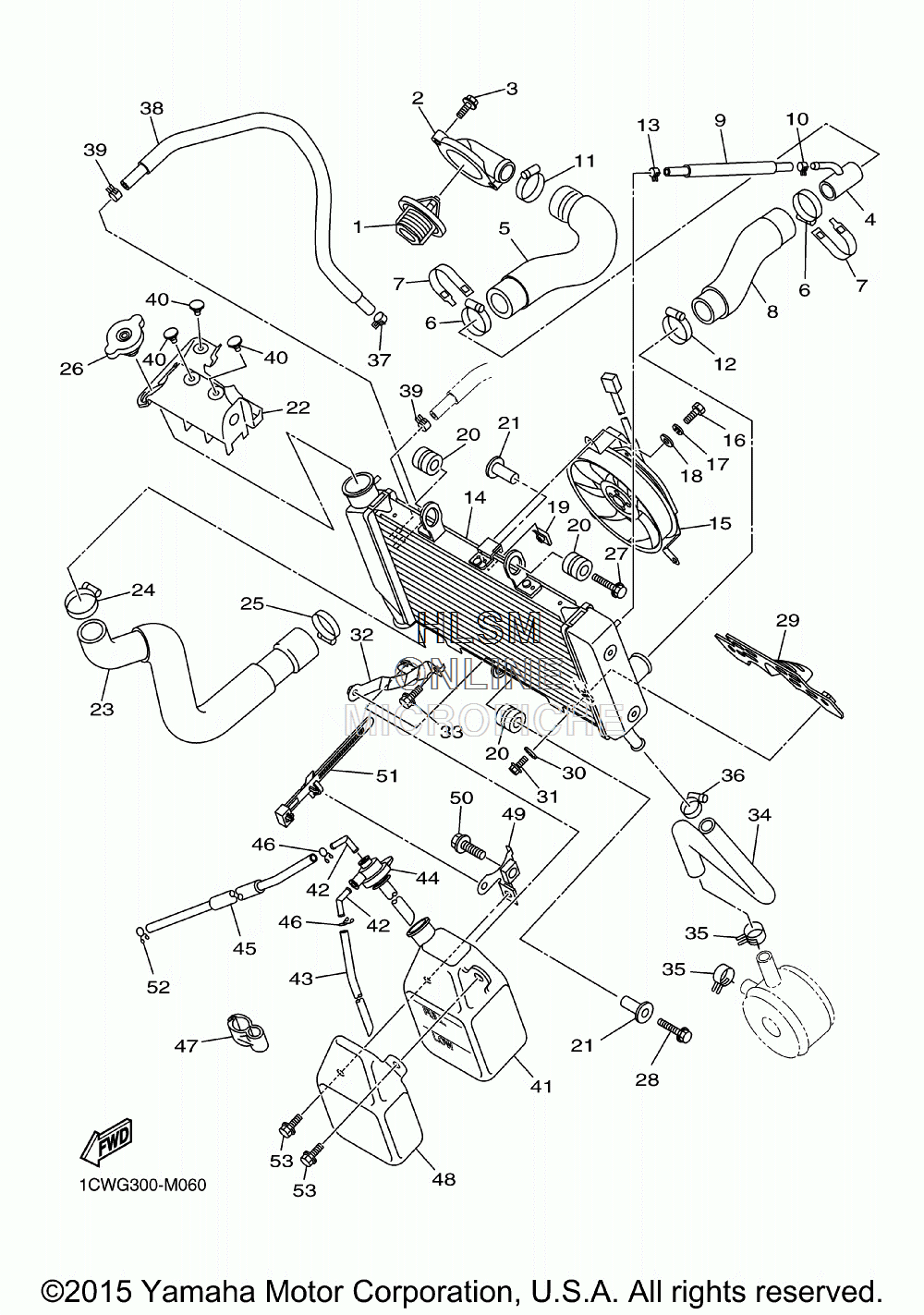

RADIATOR для Yamaha FZ6R [FZ6RER] - 2014 года выпуска
-
№АртикулНазвание
-
15SL-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
25VX-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
390105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
420S-12582-01-00 JOINT, HOSE 2JOINT, HOSE 2
-
520S-12578-00-00 HOSE 3HOSE 3
-
690450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
720S-1246E-00-00 COVER 2COVER 2
-
820S-12551-00-00 HOSE 7HOSE 7
-
990445-12012-00 HOSEHOSE
-
1090467-11090-00 CLIPCLIP
-
1190450-32006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1290450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390467-11090-00 CLIPCLIP
-
1420S-12461-01-00 RADIATOR COMPRADIATOR COMP
-
1520S-12405-20-00 BLOWER ASSYBLOWER ASSY
-
1697307-06012-00 BOLTBOLT
-
1792907-06100-00 .WASHER, SPRING.WASHER, SPRING
-
1892907-06600-00 WASHER, PLATEWASHER, PLATE
-
191AA-12535-00-00 PLATEPLATE
-
2090480-15363-00 GROMMETGROMMET
-
2190387-0614M-00 COLLARCOLLAR
-
2236P-2117U-00-00 COVER 6COVER 6
-
2320S-12579-00-00 HOSE 4HOSE 4
-
2490450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2590450-32006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2622W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
2795802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2895802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2920S-12535-00-00 PLATEPLATE
-
3090201-06025-00 WASHER, PLATEWASHER, PLATE
-
3195824-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3220S-1244E-00-00 BRACKET 1BRACKET 1
-
3395822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3420S-12589-00-00 HOSE 6HOSE 6
-
3590467-200A0-00 CLIPCLIP
-
3690450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3790467-11090-00 CLIPCLIP
-
3890445-12009-00 HOSEHOSE
-
3990467-11090-00 CLIPCLIP
-
4090269-05074-00 RIVETRIVET
-
414P5-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4226H-21828-00-00 ELBOWELBOW
-
4390445-081F2-00 HOSE (L200)HOSE (L200)
-
4420S-21875-10-00 CAPCAP
-
4590445-08025-00 HOSEHOSE
-
4690467-08075-00 CLIPCLIP
-
4790464-10233-00 CLAMPCLAMP
-
484P5-2172W-00-00 COVERCOVER
-
494P5-21873-00-00 BRACKET, RECOVERY TANKBRACKET, RECOVERY TANK
-
5095822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
5190464-07012-00 CLAMPCLAMP
-
5290467-08075-00 CLIPCLIP
-
5390105-060A6-00 BOLT, FLANGEBOLT, FLANGE
