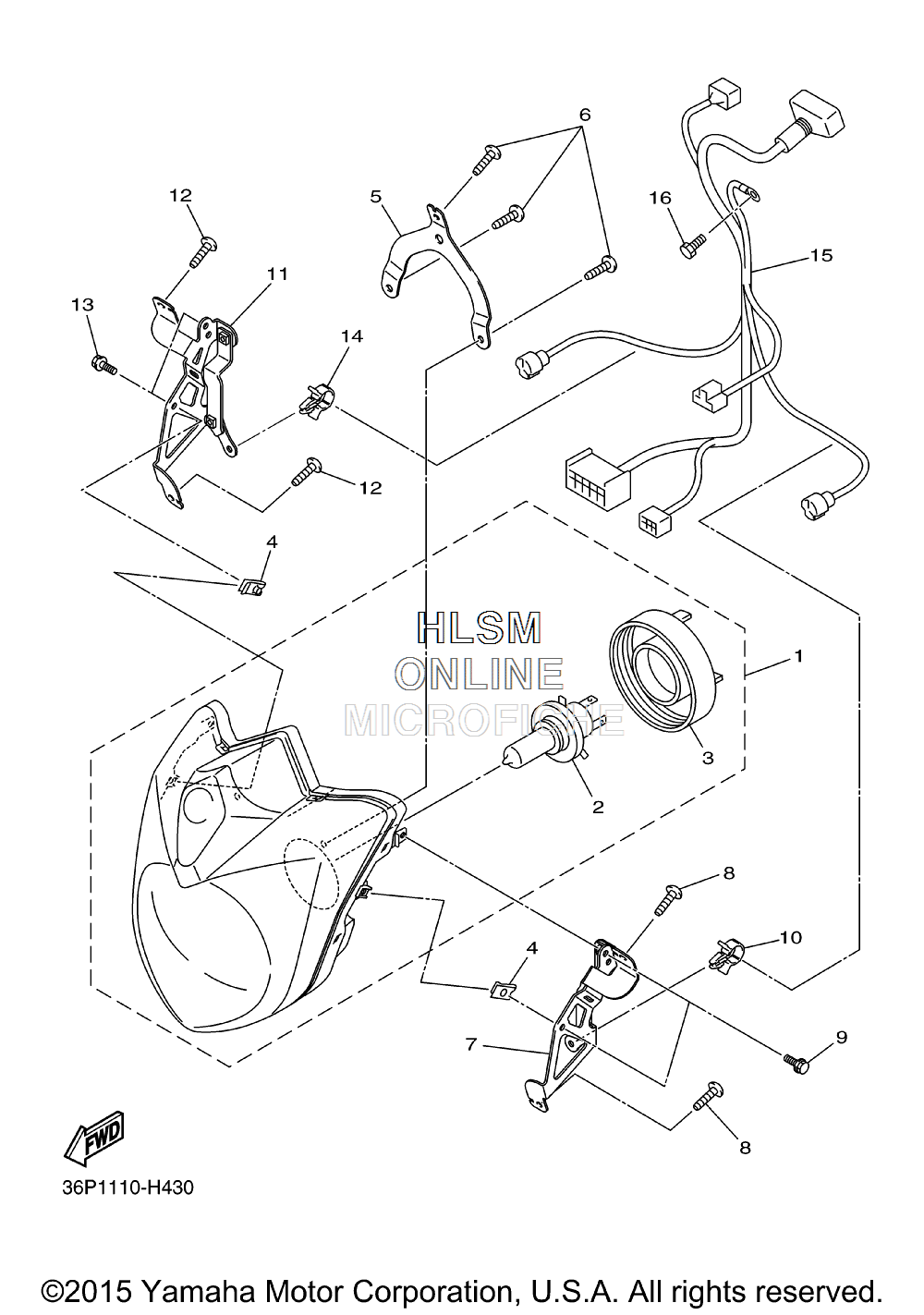

HEADLIGHT для Yamaha FZ6R [FZ6RER] - 2014 года выпуска
-
№АртикулНазвание
-
136P-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
24K0-84314-G0-00 ...BULB (12V 60/55W HALOGEN)...BULB (12V 60/55W HALOGEN)
-
35JW-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
490183-06069-00 NUT, SPRINGNUT, SPRING
-
536P-28396-00-00 PLATE 1PLATE 1
-
697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
736P-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
995802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1090464-15157-00 CLAMPCLAMP
-
1136P-84119-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
1297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1490464-15157-00 CLAMPCLAMP
-
1536P-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
1691380-05008-00 BOLTBOLT
