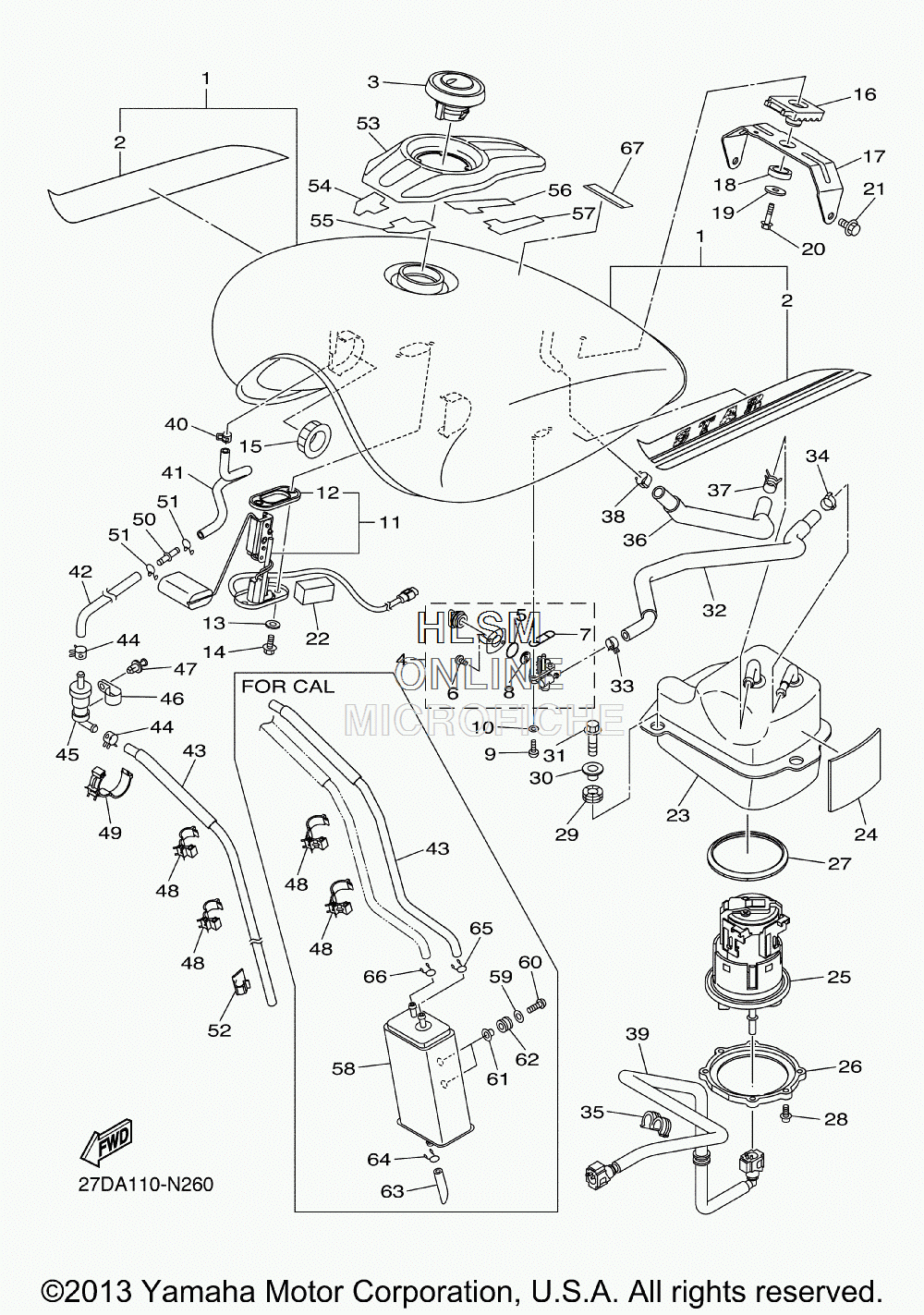

FUEL TANK для Yamaha STRYKER (PURP. BLUE / RED METALLIC) - 2014 года выпуска
-
№АртикулНазвание
-
127D-Y2410-00-09 FUEL TANK COMP. FOR DRMKFUEL TANK COMP. FOR DRMK
-
127D-Y2410-00-X1 FUEL TANK COMP. FOR VPBC5FUEL TANK COMP. FOR VPBC5
-
227D-24240-00-00 ......GRAPHIC SET FOR DRMK......GRAPHIC SET FOR DRMK
-
227D-24240-10-00 ......GRAPHIC SET FOR VPBC5......GRAPHIC SET FOR VPBC5
-
34NK-24602-20-00 CAP ASSYCAP ASSY
-
44JT-24500-20-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
53AJ-24534-10-00 ...SEAL, COCK...SEAL, COCK
-
698507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
74X8-24512-10-00 ...GASKET...GASKET
-
83AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
990149-06108-00 SCREWSCREW
-
1090202-05193-00 WASHER, PLATEWASHER, PLATE
-
1127D-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
123D8-85753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
-
1390202-05193-00 WASHER, PLATEWASHER, PLATE
-
1495812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
152YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
161D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
1727D-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
184TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06177-00 COLLARCOLLAR
-
2095812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2195827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
222YK-21747-00-00 DAMPERDAMPER
-
233D8-244A0-00-00 PUMP CASE COMP.PUMP CASE COMP.
-
243D8-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
253D8-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
263D8-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2719B-24486-01-00 O-RINGO-RING
-
2890110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
293D8-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
3090387-062U9-00 COLLARCOLLAR
-
3195812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3227D-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3390467-12004-00 CLIPCLIP
-
3490467-130A1-00 CLIPCLIP
-
3590464-19001-00 CLAMPCLAMP
-
3627D-24312-00-00 PIPE 2PIPE 2
-
3790467-160A2-00 CLIPCLIP
-
385PX-2411M-00-00 CLIPCLIP
-
393D8-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4090467-090A5-00 CLIPCLIP
-
4127D-24324-00-00 PIPE 13PIPE 13
-
4227D-24325-00-00 PIPE 14PIPE 14
-
4327D-2486G-00-00 PIPE 3 (EXCEPT CALIF)PIPE 3 (EXCEPT CALIF)
-
4327D-2486A-00-00 PIPE 1 (CALIF ONLY)PIPE 1 (CALIF ONLY)
-
4490467-09001-00 CLIPCLIP
-
455RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
4690461-15139-00 CLAMPCLAMP
-
4790269-05005-00 RIVETRIVET
-
4890464-15192-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
4890464-20191-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4990464-30252-00 CLAMPCLAMP
-
504XY-14568-00-00 JOINTJOINT
-
5190467-09103-00 CLIPCLIP
-
5290464-10012-00 CLAMPCLAMP
-
5327D-241B1-00-00 COVER, TANKCOVER, TANK
-
5427D-241A7-00-00 SEAL 7SEAL 7
-
5527D-24329-00-00 SEALSEAL
-
5627D-241A8-00-00 SEAL 8SEAL 8
-
5727D-2414E-00-00 SEAL 2SEAL 2
-
585PX-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
5990201-06023-00 WASHER, PLATE (CALIF ONLY)WASHER, PLATE (CALIF ONLY)
-
6090111-06067-00 BOLT, HEX. SOCKET BUTTON (CALIF ONLY)BOLT, HEX. SOCKET BUTTON (CALIF ONLY)
-
6190387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
6290480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
6327D-24322-00-00 PIPE 11 (CALIF ONLY)PIPE 11 (CALIF ONLY)
-
6490467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
6590467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
6690467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
671TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
