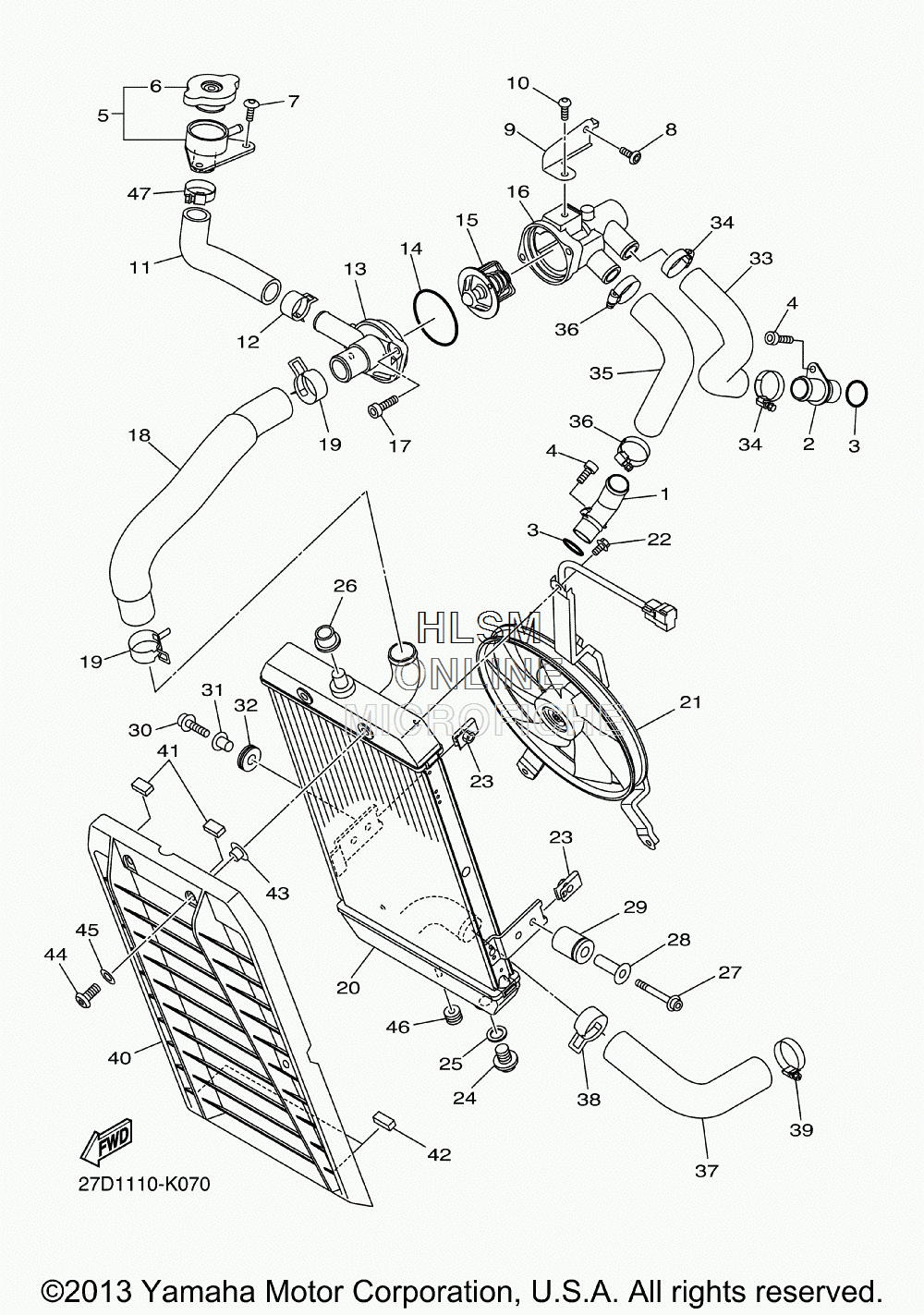

RADIATOR для Yamaha STRYKER (PURP. BLUE / RED METALLIC) - 2014 года выпуска
-
№АртикулНазвание
-
13D8-12481-00-00 PIPE 1PIPE 1
-
23D8-12482-00-00 PIPE 2PIPE 2
-
393210-18417-00 O-RINGO-RING
-
491312-06014-00 BOLTBOLT
-
54GG-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
622W-12462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
790111-06083-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
890111-06078-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
927D-1244E-00-00 BRACKET 1BRACKET 1
-
1092012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1127D-12589-00-00 HOSE 6HOSE 6
-
1290467-230A1-00 CLIPCLIP
-
1327D-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1493210-49046-00 O-RINGO-RING
-
151AE-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
1627D-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
1791312-06020-00 BOLTBOLT
-
1827D-12579-00-00 HOSE 4HOSE 4
-
1990467-280A1-00 CLIPCLIP
-
203D8-12461-10-00 RADIATOR COMPRADIATOR COMP
-
213D8-12405-10-00 BLOWER ASSYBLOWER ASSY
-
223D8-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
233D8-12535-00-00 PLATEPLATE
-
241AA-12561-00-00 PLUG, DRAIN COCKPLUG, DRAIN COCK
-
251AA-12435-00-00 GASKETGASKET
-
2690480-20003-00 GROMMETGROMMET
-
2790110-06261-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2890387-0614X-00 COLLARCOLLAR
-
2927D-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
3090110-06263-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190387-065G0-00 COLLARCOLLAR
-
3227D-11328-00-00 GROMMET, ANODEGROMMET, ANODE
-
3327D-12576-00-00 HOSE 1HOSE 1
-
3490450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3527D-12578-00-00 HOSE 3HOSE 3
-
3690450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
373D8-12588-00-00 HOSE 5HOSE 5
-
3890467-280A1-00 CLIPCLIP
-
3990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
403D8-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
413D8-21541-00-00 DAMPER 1DAMPER 1
-
423D8-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
4390387-08076-00 COLLARCOLLAR
-
4490111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4590201-06096-00 WASHER, PLATEWASHER, PLATE
-
4690480-08003-00 GROMMETGROMMET
-
4790450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
