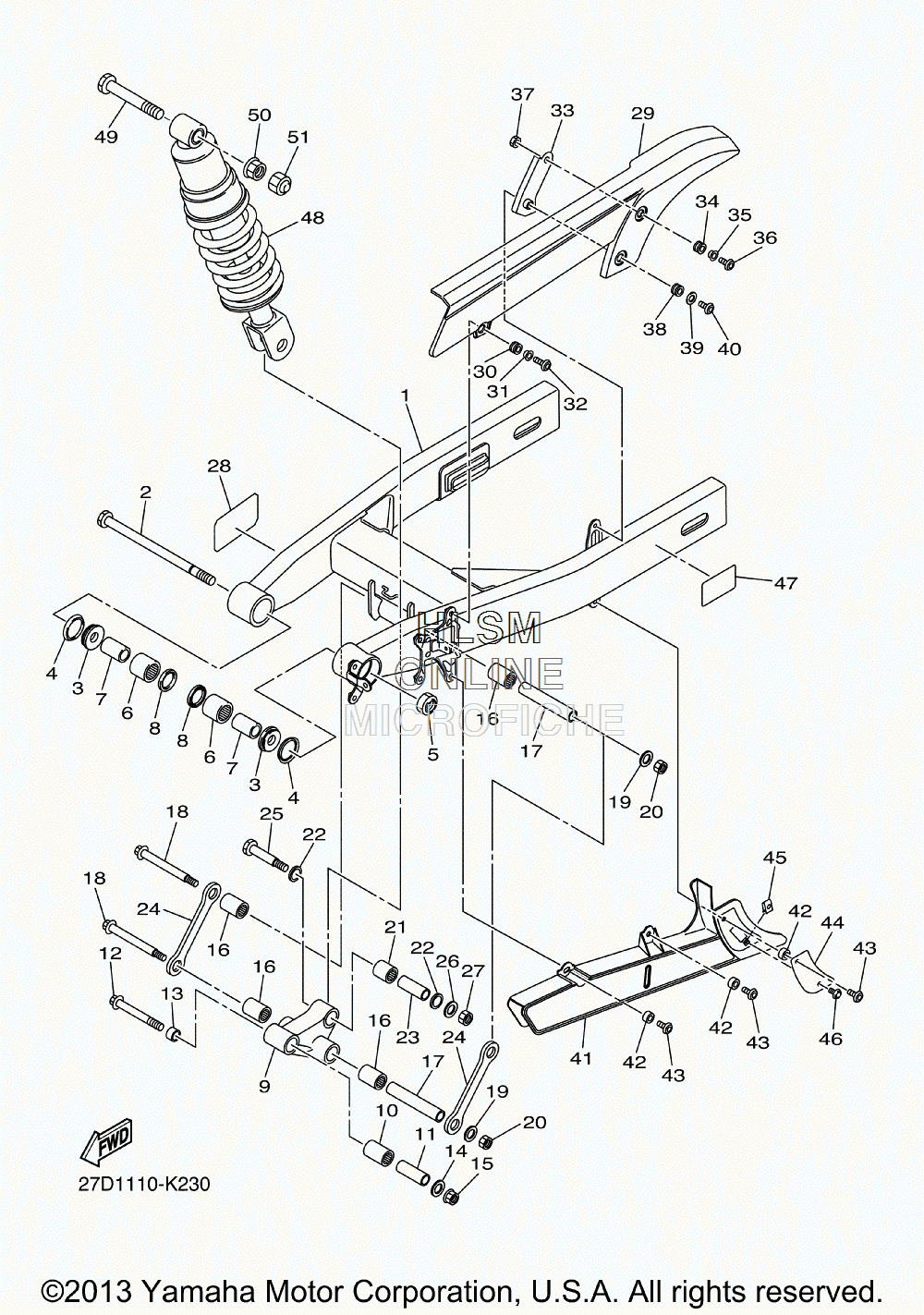

SUSPENSION - REAR ARM для Yamaha STRYKER (PURP. BLUE / RED METALLIC) - 2014 года выпуска
-
№АртикулНазвание
-
127D-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
227D-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
390387-16030-00 COLLARCOLLAR
-
493108-44001-00 OIL SEALOIL SEAL
-
590185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
693317-52897-00 BEARINGBEARING
-
790387-16029-00 COLLARCOLLAR
-
893109-28001-00 OIL SEALOIL SEAL
-
93D8-2217A-00-00 ARM, RELAYARM, RELAY
-
1093317-42060-00 BEARING CYL.#17BEARING CYL.#17
-
1190387-100T8-00 COLLARCOLLAR
-
1290105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-10049-00 COLLARCOLLAR
-
1490201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1590179-10658-00 NUTNUT
-
1693317-41761-00 BEARING CYL.#17BEARING CYL.#17
-
1790387-126T1-00 COLLARCOLLAR
-
1890101-12027-00 BOLTBOLT
-
1990201-12045-00 WASHER, PLATEWASHER, PLATE
-
2095612-12100-00 NUT, UNUT, U
-
2193317-31771-00 BEARINGBEARING
-
2293109-17071-00 OIL SEALOIL SEAL
-
2390387-127W0-00 COLLARCOLLAR
-
243D8-2217M-00-00 ARM 1ARM 1
-
2590109-10024-00 BOLTBOLT
-
2690201-10035-00 .WASHER, PLATE.WASHER, PLATE
-
2795612-10100-00 NUT, UNUT, U
-
285PX-21652-00-00 PROTECTORPROTECTOR
-
295S7-22311-00-00 CASE, CHAINCASE, CHAIN
-
3090480-13004-00 GROMMETGROMMET
-
3190387-06171-00 COLLARCOLLAR
-
3290149-06302-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
333D8-2213J-00-00 STAY, CHAIN CASESTAY, CHAIN CASE
-
3490480-13004-00 GROMMETGROMMET
-
3590387-06171-00 COLLARCOLLAR
-
3690111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3795302-06600-00 NUTNUT
-
3890480-13004-00 GROMMETGROMMET
-
3990201-06095-00 WASHER, PLATEWASHER, PLATE
-
4090149-06302-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
413D8-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
4290387-06372-00 COLLARCOLLAR
-
4390111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
445S7-22341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
4590183-06053-00 NUT, SPRINGNUT, SPRING
-
4690111-06078-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4727D-21668-00-00 LABEL, TIRELABEL, TIRE
-
4827D-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
4990109-10028-00 BOLTBOLT
-
5090179-10658-00 NUTNUT
-
515YU-2143A-00-00 CAPCAP
