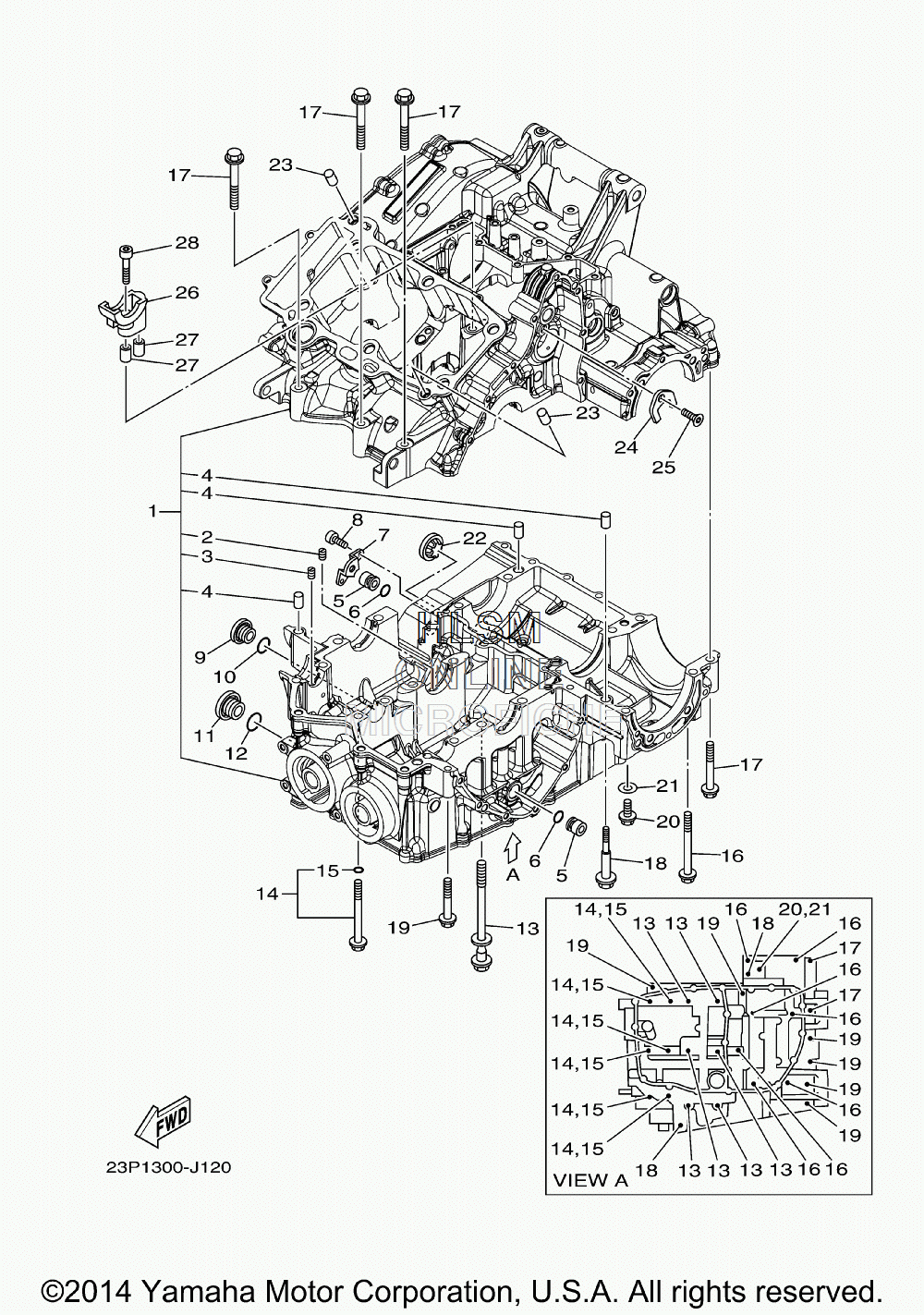

CRANKCASE для Yamaha SUPER TENERE - 2014 года выпуска
-
№АртикулНазвание
-
123P-15100-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
24H7-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
32UJ-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
499530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
590338-16262-00 PLUGPLUG
-
693210-12790-00 O-RINGO-RING
-
723P-15128-00-00 HOLDERHOLDER
-
890110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
936Y-15189-00-00 PLUGPLUG
-
1093210-16325-00 O-RINGO-RING
-
114H7-15189-00-00 PLUGPLUG
-
1293210-207A0-00 O-RINGO-RING
-
1390119-10051-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1423P-15156-00-00 BOLT, CRANKCASE JOURNALBOLT, CRANKCASE JOURNAL
-
1593210-07540-00 ...O-RING...O-RING
-
1695812-08080-00 BOLT, FLANGEBOLT, FLANGE
-
1795812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
1890109-06100-00 BOLTBOLT
-
1995812-06050-00 BOLT, FLANGEBOLT, FLANGE
-
2095022-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2190430-08119-00 GASKETGASKET
-
222H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
2399530-10114-00 PIN, DOWELPIN, DOWEL
-
243LD-15191-00-00 PLATEPLATE
-
2590151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2623P-15118-00-00 HOLDERHOLDER
-
2799530-08016-00 PIN, DOWELPIN, DOWEL
-
2890110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
