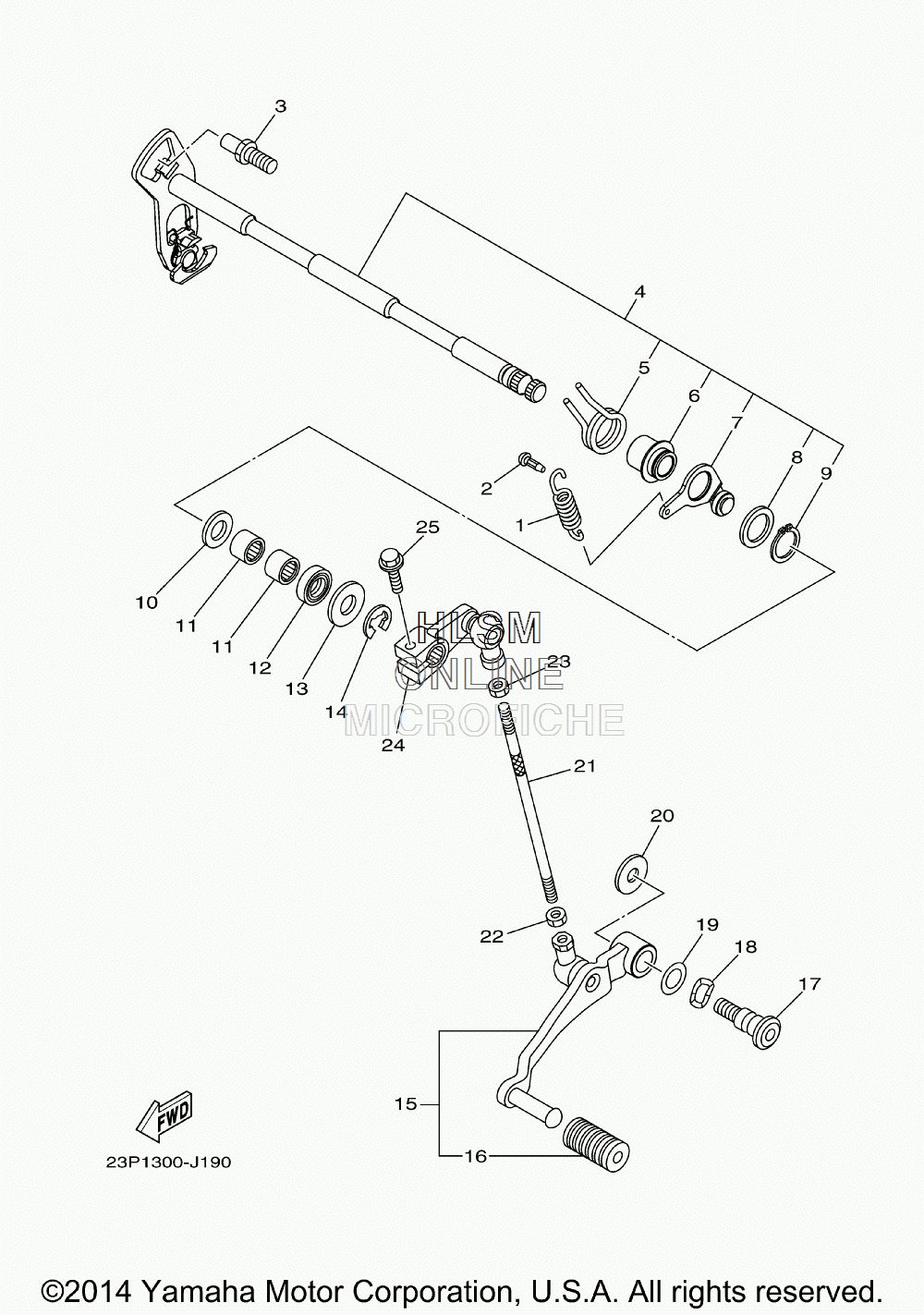

SHIFT SHAFT для Yamaha SUPER TENERE - 2014 года выпуска
-
№АртикулНазвание
-
12C0-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
423P-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-32141-00 ...SPRING, TORSION...SPRING, TORSION
-
62C0-18175-00-00 ...SPACER...SPACER
-
72C0-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1193317-11295-00 BEARINGBEARING
-
1293102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
1390201-12575-00 WASHER, PLATEWASHER, PLATE
-
1499002-10600-00 CLIPCLIP
-
1523P-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
161W6-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
174BP-27434-01-00 BOLTBOLT
-
1890206-12074-00 WASHER, WAVEWASHER, WAVE
-
1990201-12013-00 WASHER, PLATEWASHER, PLATE
-
2090201-08784-00 WASHER, PLATEWASHER, PLATE
-
212GV-18115-00-00 ROD, SHIFTROD, SHIFT
-
2290170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2395304-06700-00 NUTNUT
-
2423P-18112-00-00 ARM, SHIFTARM, SHIFT
-
2595822-06020-00 BOLT, FLANGEBOLT, FLANGE
