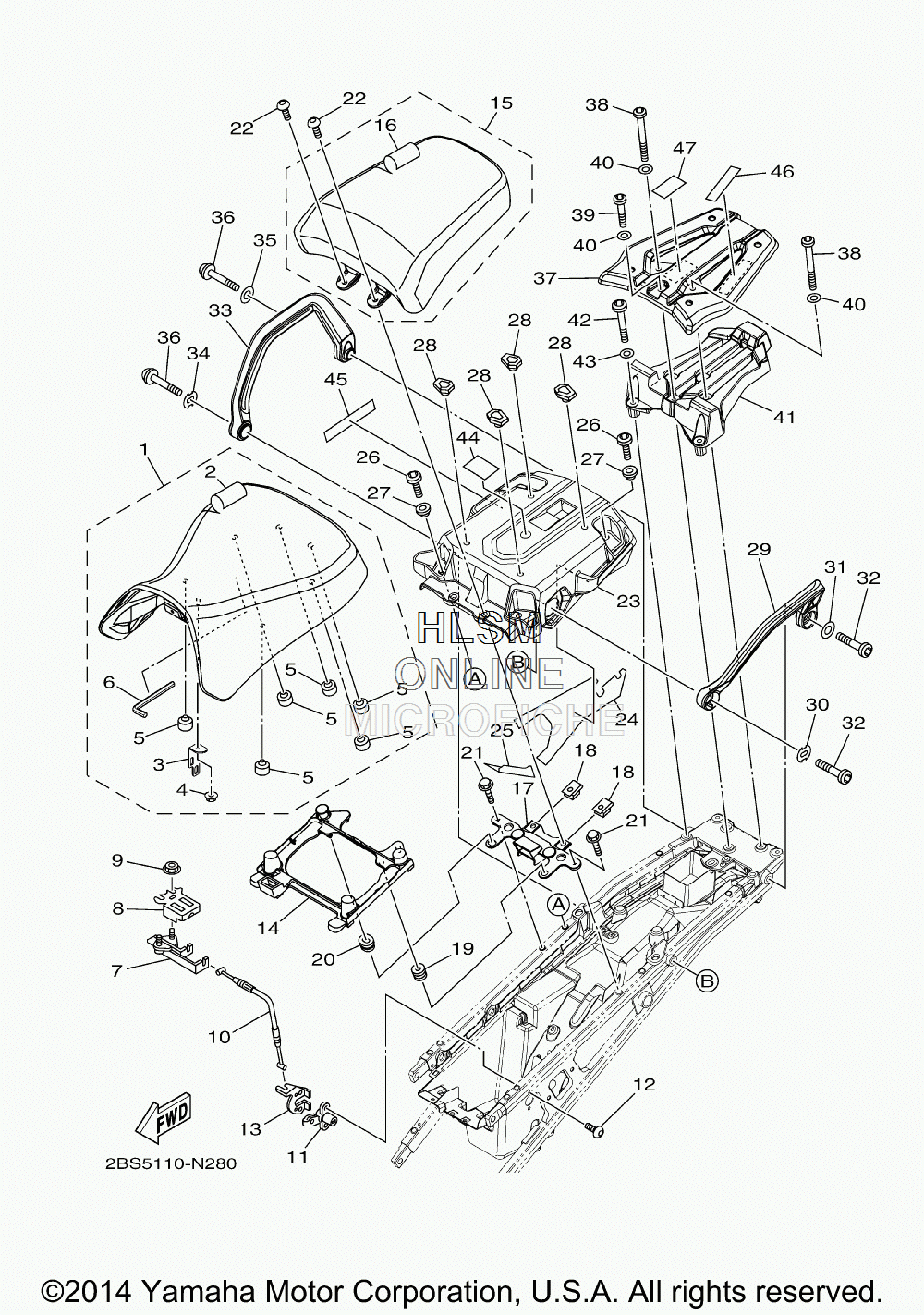

SEAT для Yamaha SUPER TENERE - 2014 года выпуска
-
№АртикулНазвание
-
12KB-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
22KB-24711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
323P-24718-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
495602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
5371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
623P-28164-00-00 ...WRENCH, HEXAGON 8...WRENCH, HEXAGON 8
-
74BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
823P-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
990179-06403-00 NUTNUT
-
1023P-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
112TV-24799-00-00 ROTOR ASSYROTOR ASSY
-
1290149-06308-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
1323P-2117K-00-00 STAY, LOCKSTAY, LOCK
-
1423P-24708-00-00 SEAT BRACKET ASSYSEAT BRACKET ASSY
-
152KB-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
162KB-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
1723P-2474F-00-00 STAY, FRONT 1STAY, FRONT 1
-
1890183-08060-00 NUT, SPRINGNUT, SPRING
-
1990480-13398-00 GROMMETGROMMET
-
2090480-01559-00 GROMMETGROMMET
-
2195802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2292012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2323P-24842-10-00 CARRIER, 2CARRIER, 2
-
2423P-2172P-10-00 SEATSEAT
-
2523P-2173P-00-00 SEAT 2SEAT 2
-
2690149-06121-00 SCREWSCREW
-
2790387-06264-00 COLLARCOLLAR
-
2823P-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
2923P-2470J-00-P1 ASSIST GRIP ASSY., 1 (BLACK)ASSIST GRIP ASSY., 1 (BLACK)
-
3023P-24736-00-00 WASHERWASHER
-
3192902-10200-00 WASHERWASHER
-
3290111-10054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3323P-2470K-00-P1 ASSIST GRIP ASSY., 2 (BLACK)ASSIST GRIP ASSY., 2 (BLACK)
-
3423P-24736-00-00 WASHERWASHER
-
3592902-10200-00 WASHERWASHER
-
3690111-10054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3723P-24841-10-00 CARRIER, 1CARRIER, 1
-
3890111-08074-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3990111-08076-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4090201-08048-00 WASHER, PLATEWASHER, PLATE
-
4123P-24884-00-00 STAY, BOXSTAY, BOX
-
4290111-08076-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4390201-08048-00 WASHER, PLATEWASHER, PLATE
-
4423P-2816K-10-00 LABEL, WARNING CARRIER 2LABEL, WARNING CARRIER 2
-
4523P-2816J-10-00 LABEL, WARNING CARRIER 1LABEL, WARNING CARRIER 1
-
4623P-2815T-10-00 LABEL, NOTICE CARRIERLABEL, NOTICE CARRIER
-
4723P-2816K-10-00 LABEL, WARNING CARRIER 2LABEL, WARNING CARRIER 2
