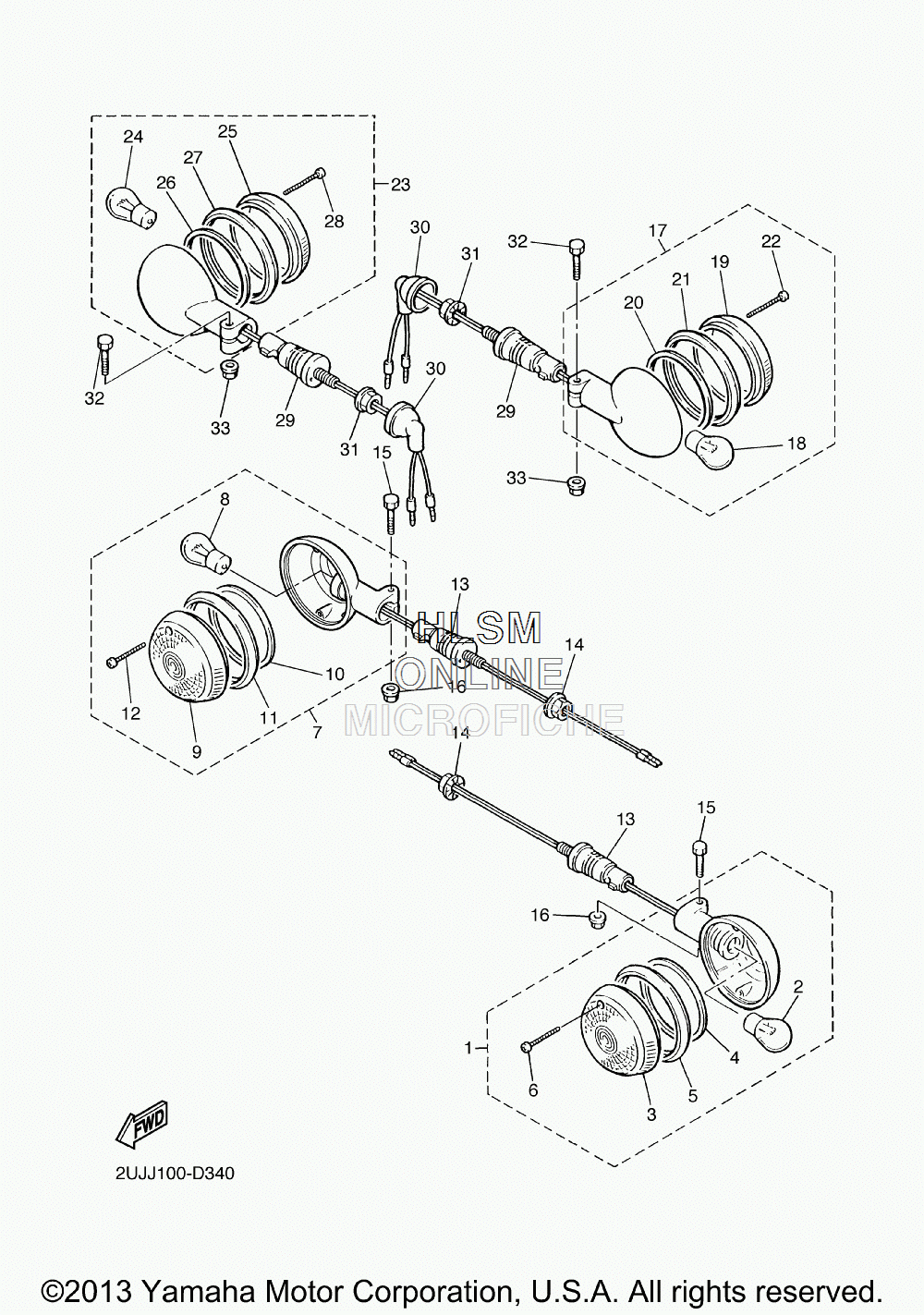

FLASHER LIGHT для Yamaha V STAR 250 - 2014 года выпуска
-
№АртикулНазвание
-
142X-83310-K1-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
2256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
342X-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
41D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
51D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
742X-83320-K1-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
8256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
942X-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
101D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
111D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
1257M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
131AA-83318-00-00 STAY,FLASHER 1STAY,FLASHER 1
-
1495304-12600-00 NUTNUT
-
1595024-06030-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
1695704-06500-00 NUT, FLANGENUT, FLANGE
-
173DN-83330-01-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
18256-83311-70-00 ...BULB (12V-27W)...BULB (12V-27W)
-
1942X-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
201D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
211D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
2257M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
233DN-83340-01-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
24256-83311-70-00 ...BULB (12V-27W)...BULB (12V-27W)
-
2542X-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
261D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
271D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
2857M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
291AA-83318-00-00 STAY,FLASHER 1STAY,FLASHER 1
-
3018G-83365-00-00 CAPCAP
-
3195304-12600-00 NUTNUT
-
3295024-06030-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
3395704-06500-00 NUT, FLANGENUT, FLANGE
