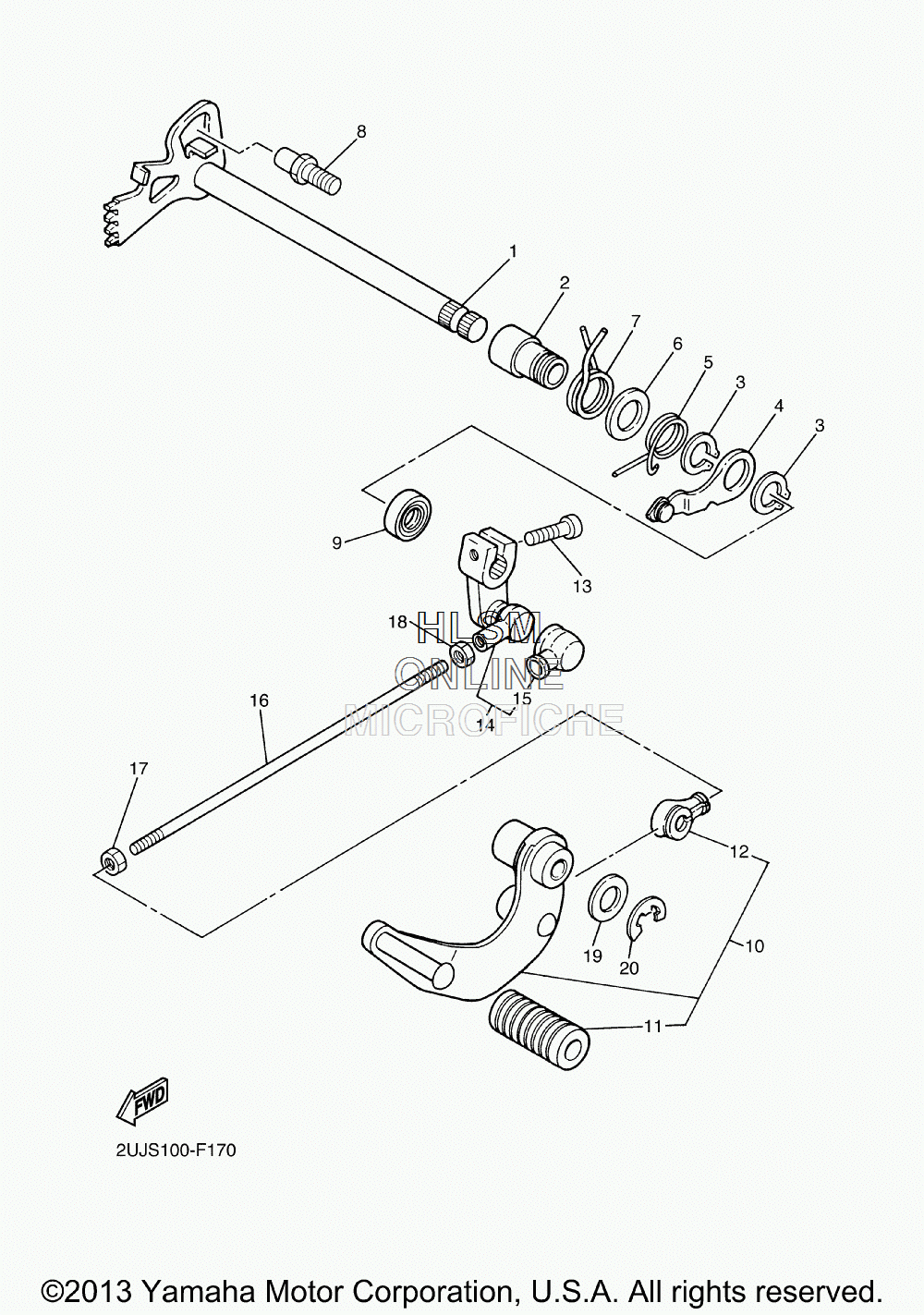

SHIFT SHAFT для Yamaha V STAR 250 - 2014 года выпуска
-
№АртикулНазвание
-
12UJ-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
290387-12787-00 COLLARCOLLAR
-
399009-17400-00 CIRCLIPCIRCLIP
-
43Y1-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
590508-26434-00 SPRING, TORSIONSPRING, TORSION
-
690201-17255-00 WASHER, PLATEWASHER, PLATE
-
790508-32374-00 SPRING, TORSIONSPRING, TORSION
-
81D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
993102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
102UJ-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
11132-18113-01-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
122H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1397024-06020-00 BOLTBOLT
-
142UJ-18130-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
152H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
162UJ-18115-03-00 ROD, SHIFTROD, SHIFT
-
1790170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
1895304-06700-00 NUTNUT
-
1990201-12688-00 WASHER, PLATEWASHER, PLATE
-
2099009-12400-00 CIRCLIPCIRCLIP
