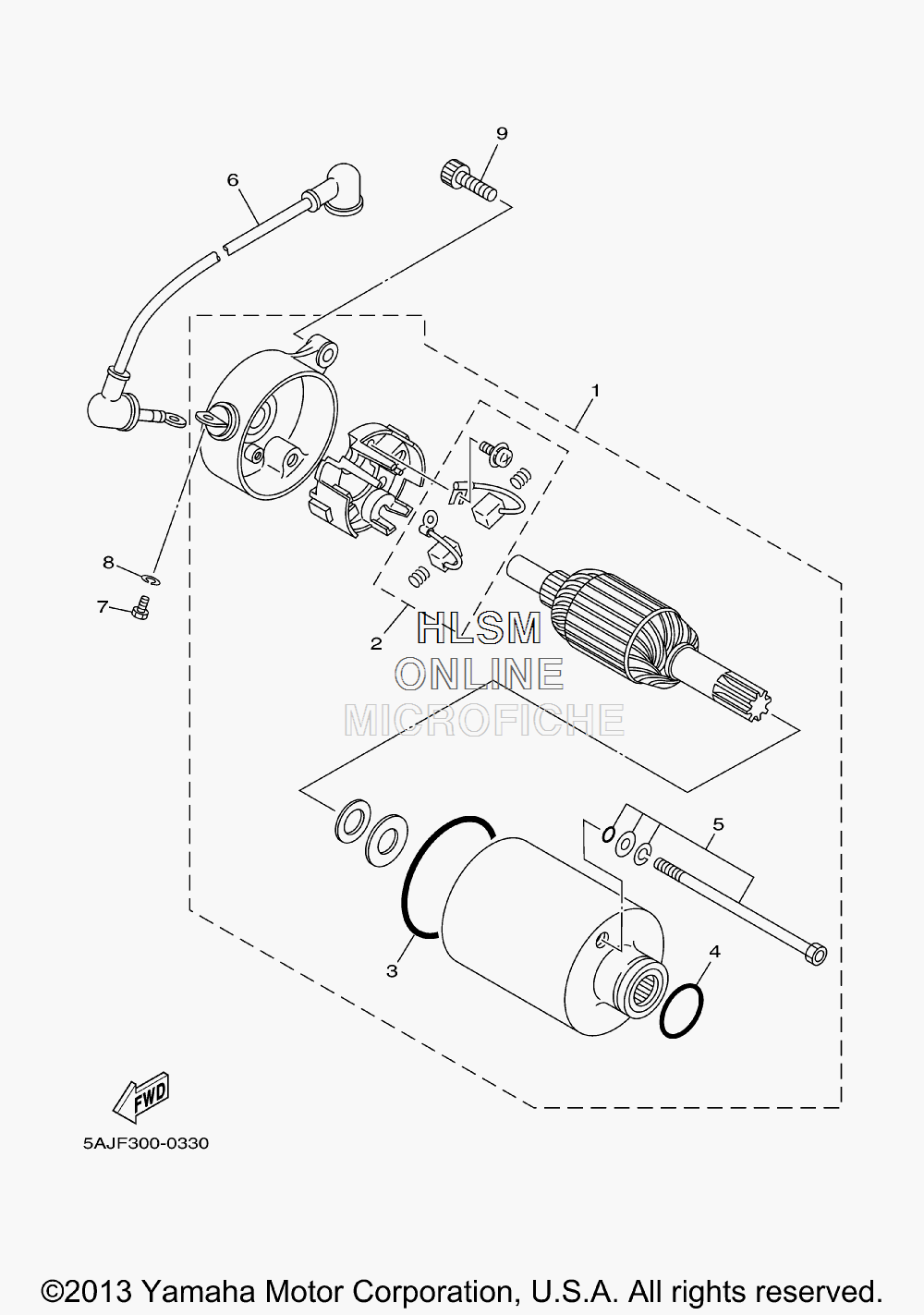

STARTING MOTOR для Yamaha V STAR 250 - 2014 года выпуска
-
№АртикулНазвание
-
12UJ-81890-00-00 MOTOR ASSYMOTOR ASSY
-
250M-81801-M0-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
493210-25711-00 ...O-RING...O-RING
-
559V-81828-M0-00 ...SCREW SET...SCREW SET
-
62UJ-8183G-00-00 CORD COMP.CORD COMP.
-
798507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-05100-00 WASHER, SPRINGWASHER, SPRING
-
991314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
